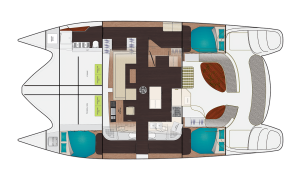

OWNER VERSION – 3x cabins and 3x en-suite heads/bathrooms
GENERAL SPECIFICATIONS
Length overall
15.44 m
50.64 ft
Length waterline
15.15 m
49.69 ft
Beam
8 m
24.24 ft
Draft
1.35 m
4.43 ft
Bridge deck clearance Light Craft
1 m
3.28 ft
Mast height above waterline
24 m
78.72 ft
Sail Area
Sail Area – Mainsail
100 m²
1076 sf
Sail Area-Reacher
83 m²
893 sf
Sail Area-Jib
36 m²
387 sf
Engines
2 x 80 HP
2 x 80 HP
Fresh water (4 x 215Ltr tanks)
860 Ltr
226 gal
Diesel (2 x 395Ltr tanks)
790 Ltr
208 gal
CE Certified
Category A
Category A
Displacement (mlcc)
21000 kg
46200 lbs
UNIQUE EXTRAS
COMFORT PACKAGE
Gas BBQ on transom
Cotton pascale, quilted double bed fitted mattress protectors
Fendertex – inflatable fenders with custom logo (8 units)

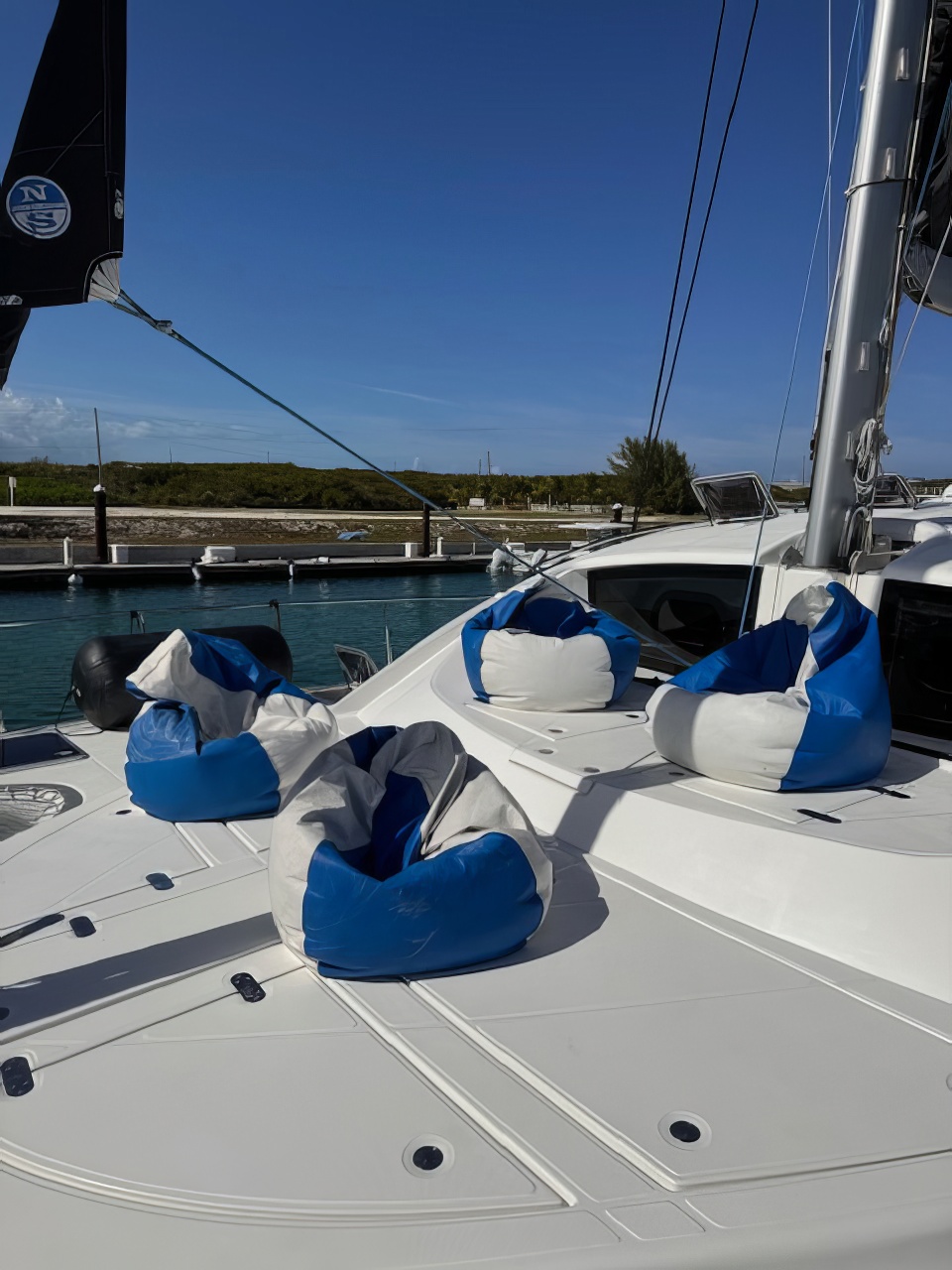

Canopy shade for foredeck and 2x large bean bacg (or foldable deck seats)
Four button remote for C-Zone system
ELECTRONICS UPGRADE
Additional 2nd Garmin GMI 20 repeater screen at inside nav station
Garmin AIS 600 transceiver (receiver is standard)
Hailer installed on spreaders and connected to VHF radio
Garmin Sirius XM receiver (USA only)
ELECTRICAL UPGRADE
Batteries upgrade to 1080 Ah Li-ion (540Ah on 24V)
Additional 900W solar panels with separate Matervolt MPPT charge controller fitted on targa
Mastervolt high output alternators with Alpha Pro smart charge regulators
ENTERTAINMENT PACKAGE
Additional 32″ TV in master cabin
2 x Bose speakers to be fitted on spreaders
4 x Underwater LED lights
COMMUNICATIONS PACKAGE
Cellular Modem / WiFi Router Antenna System
Iridium Go with external aerial on spreader
FLEXITEEK DECKING
Only in cockpit
DOWNWIND SAIL
Pre-install kit without the sail
PROPELLER UPGRADE
Gori 3 blade folding propellers with rope cutters
SCUBA PACKAGE
Coltri-6/EM INOX electric dive compressor – Condensate drain with automatic timer
4 x 12L Dumpie Dive Tanks plus holder and filling hose
ANCHOR UPGRADE
Stainless steel ULTRA anchor with flip swivel (in lieu of DELTA)
SPARES AND TOOLS
Tool cabinet instead of standard drawers or additional freezer

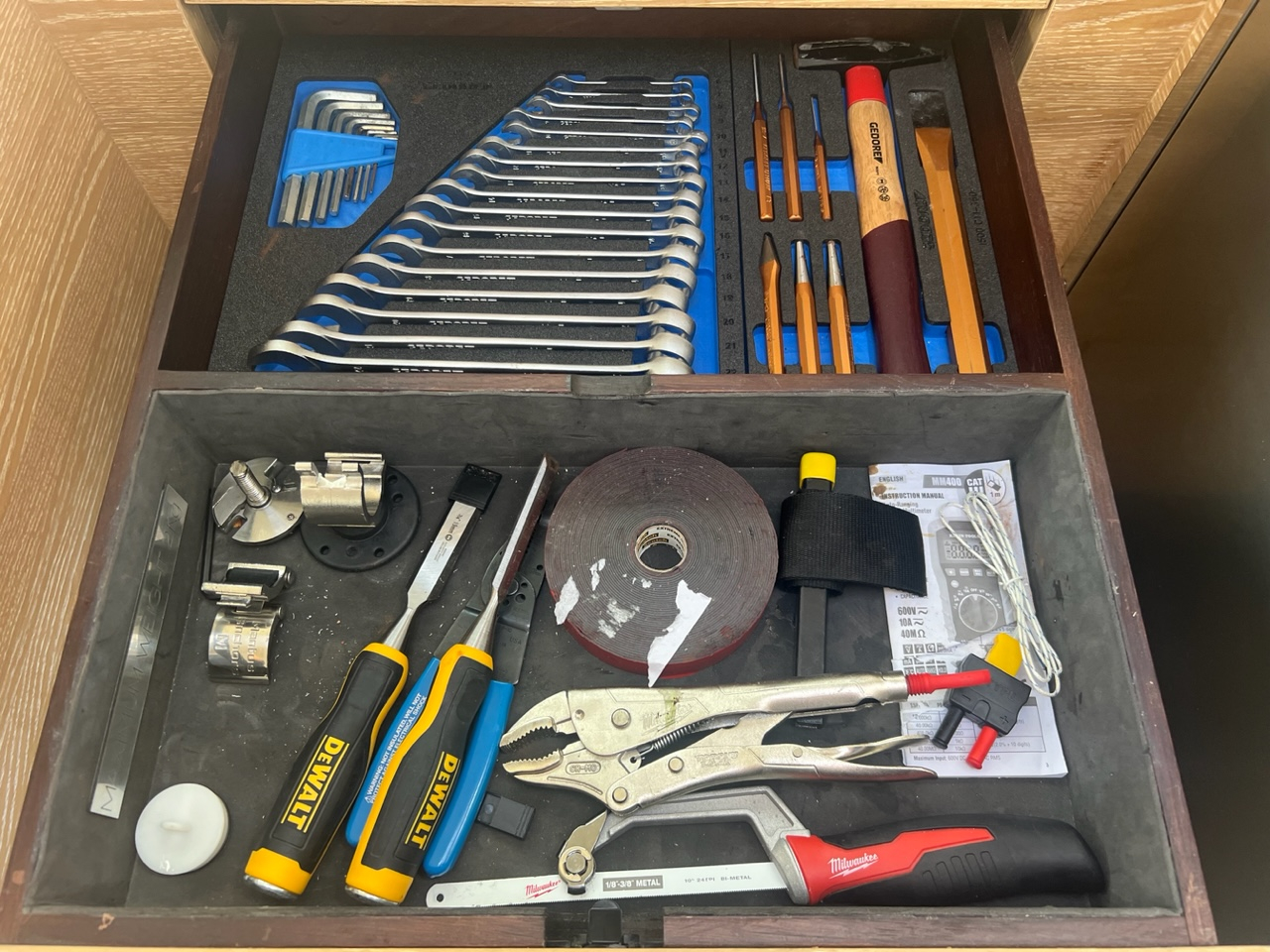

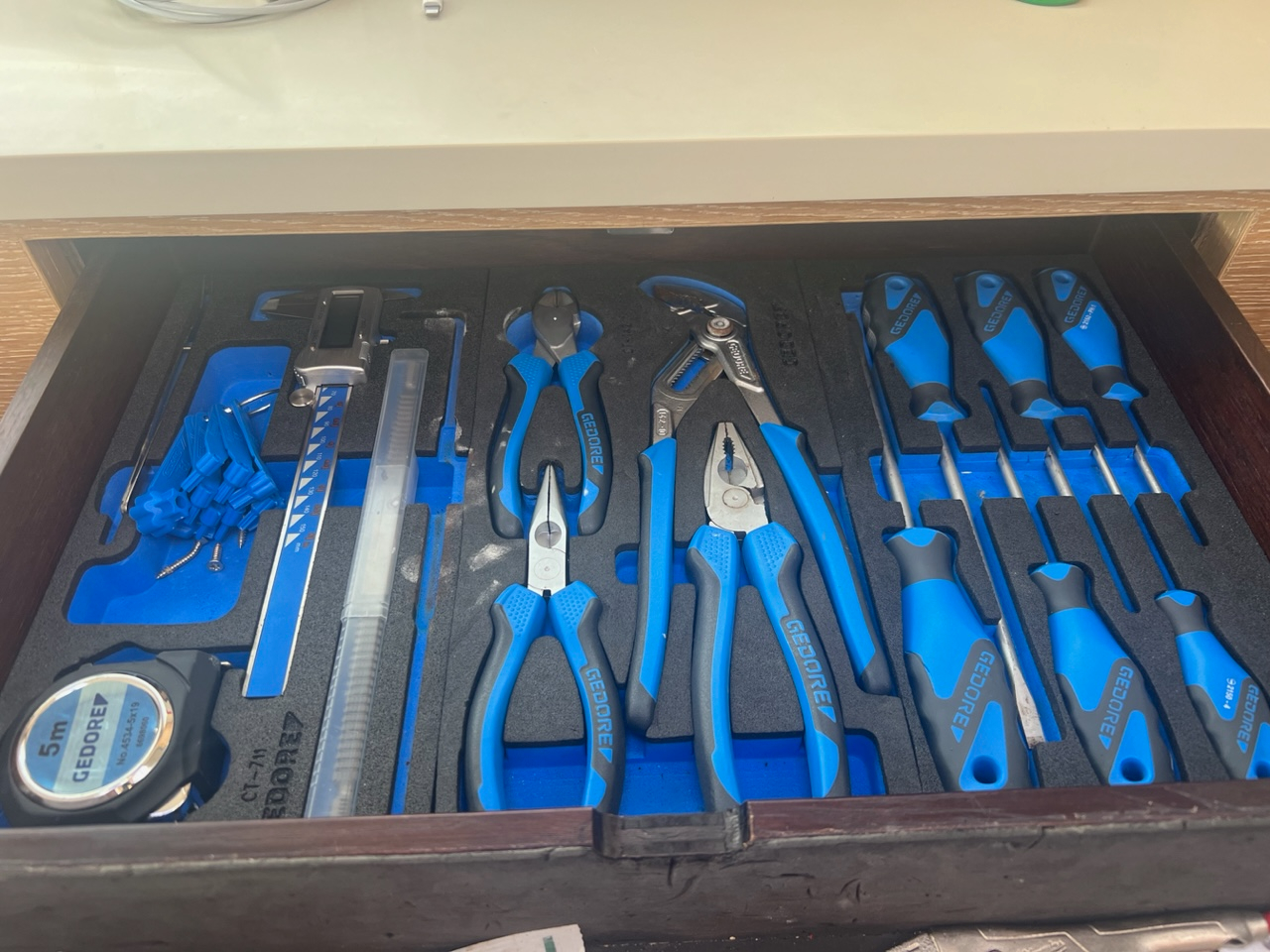

Professional tool kit in foam inserts in tool cabinet
Comprehensive spares kit
DINGHY & OUTBOARD ENGINE
AB 12′ aluminum hull tender with Yamaha 25HP EFI outboard engine (inlcuding custom lifting bridles for dinghy davits)
Add nav lights (will get quote from AB)
OPENING SALON WINDOWS
Opening hathces on both salon windows
ADDITIONAL ITEMS
Dometic CFX3 75DZW cooler with electrical connection under cockpit table, with insulated protective cover and seting cushion
Fusion Apollo stereo upgrade connected to TV via optical audio cable, 8x upgraded speakers and speaker wires
4x stainless steel fishing rod holders with custom made removabele fish cleaning station
Ottoman with storage at dresser table in master cabin (made with the same wood and uphosltery as rest of the furniture)
Garmin GC200 camera installed on mast facing down, connected to Garmin display at helm

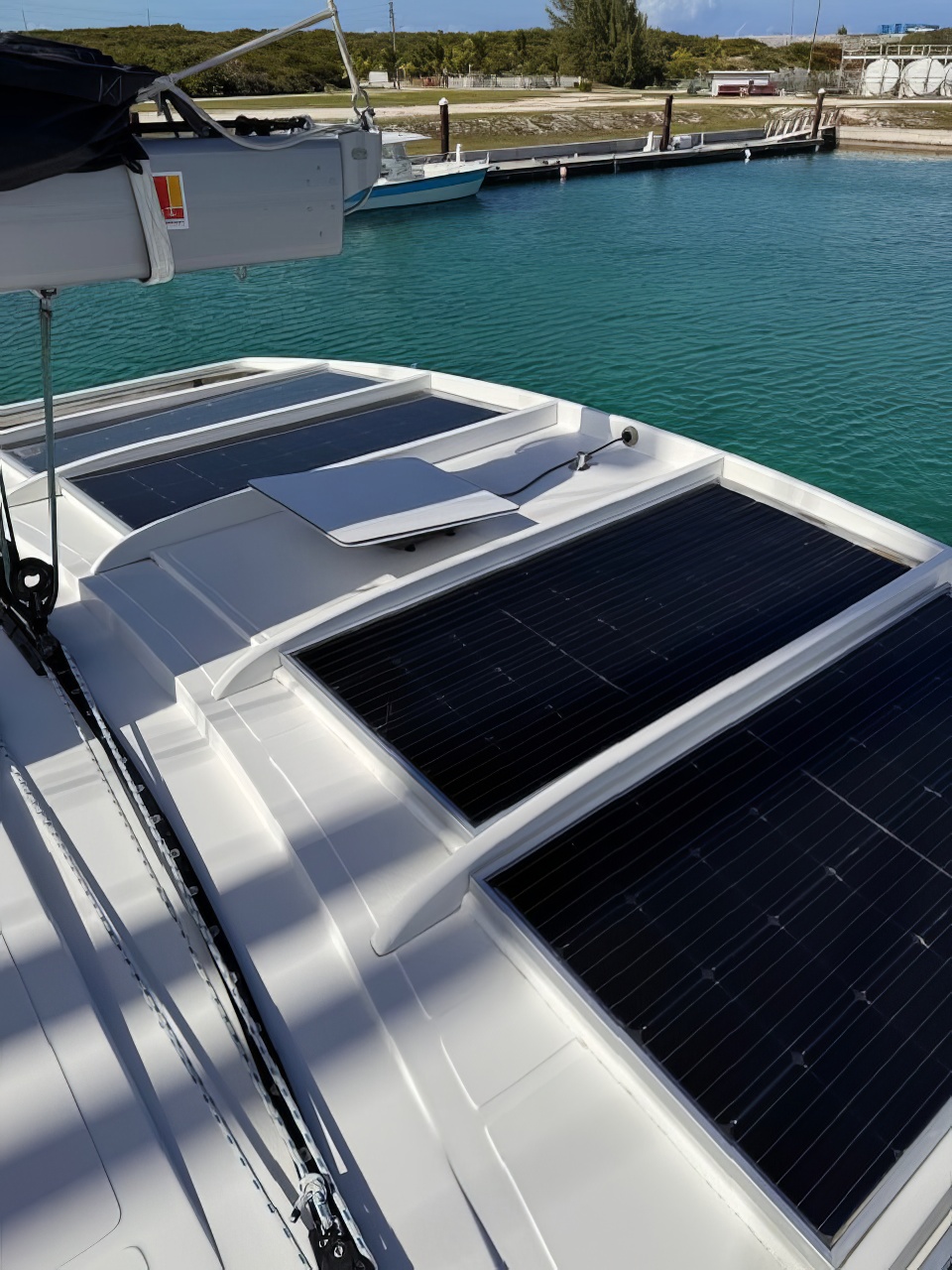

Upgrade solar panels and charge controllers to the new 190W panels (2,280W total capacity)
Shipping and insurance
Customs clearance
ADDITIONAL ITEMS 2023/24

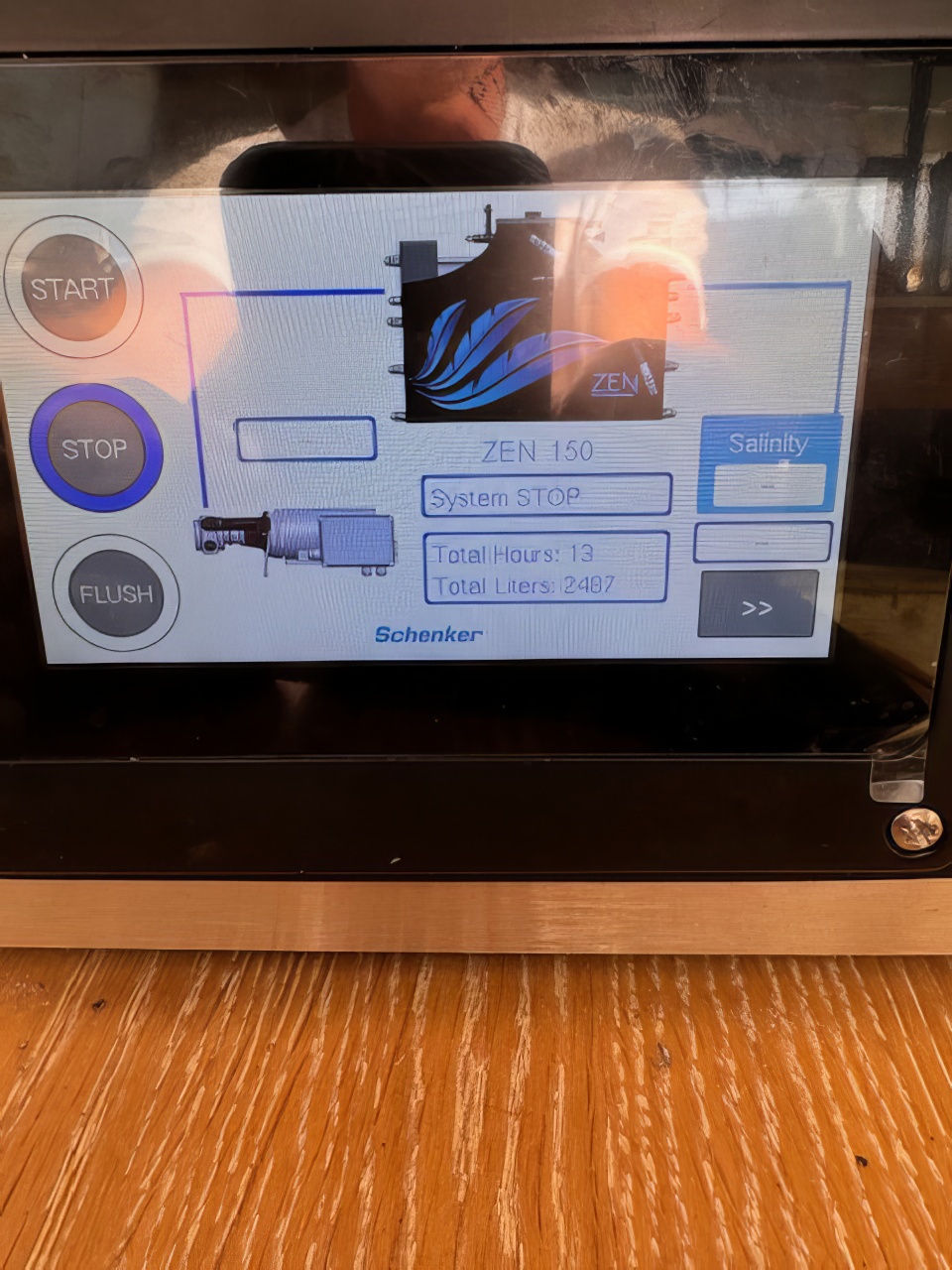

New Shenker Zen 150 water maker

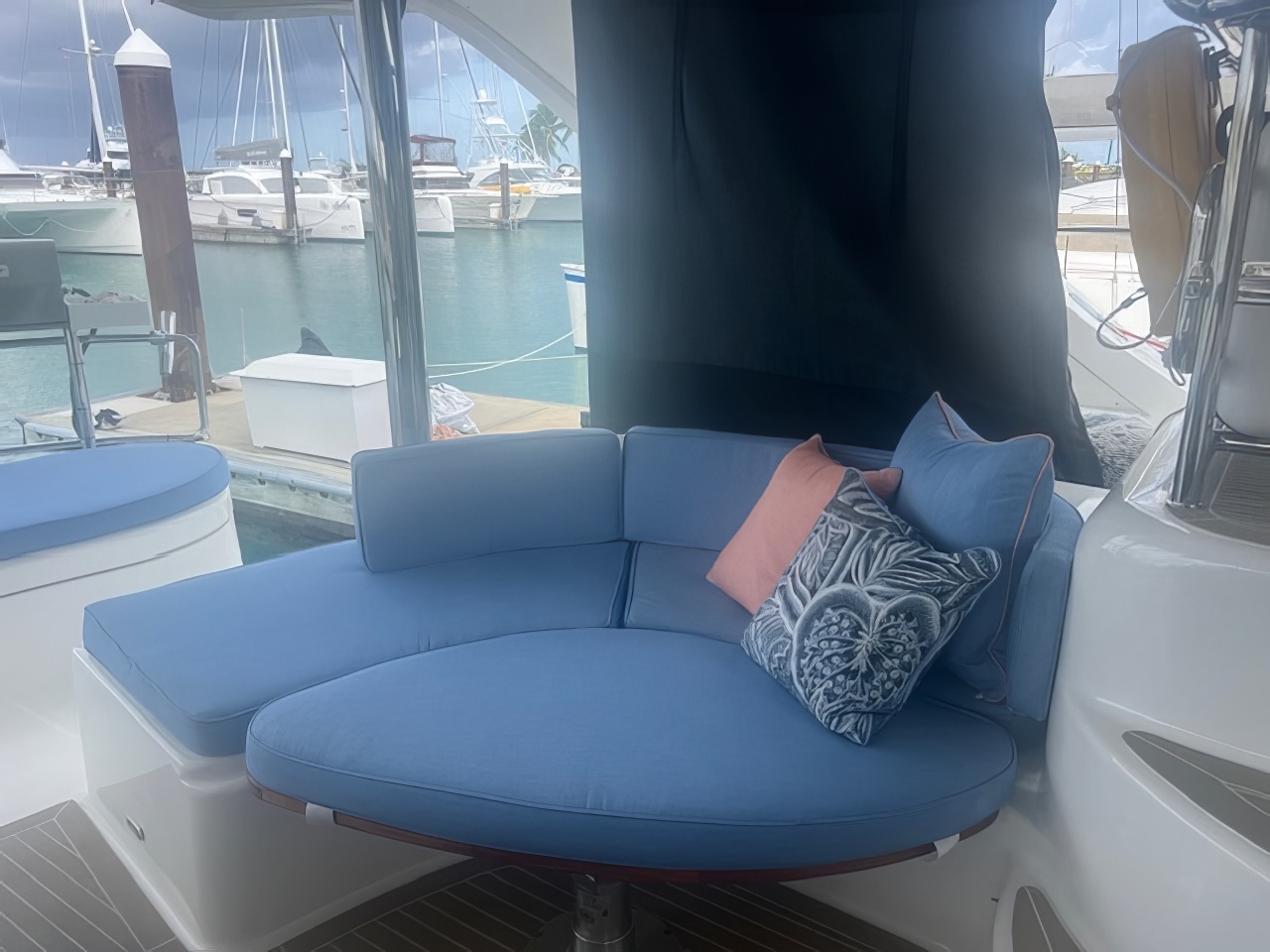

New cockpit cushions and helm seat
Spare autopilot onboard
New BOSE mast speakers
Complete 4 steps polish and wax of hulls and superstructure
Life raft and fire extinguishers serviced
Starlink broadband satellite communication system
New inflatable fenders with custom logo
Snorkel gears for 8 PAX
Fishing gear
Spare parts and cleaning supplies
New iPad
New propane tanks
Fully equipped kitchen
Sunbrella canvas covers for all deck hardware including hatches, winches, grill, etc.
HULL AND APPENDAGES
The hull is of sandwich composite construction using Quadriaxial stitched fabrics, Divinicell composite PVC foam and Epoxy Vinyl Ester resin. This gives a stiff laminate with excellent strength and lightweight properties
The engine beds are of GRP and bonded to the hull
Sea-cocks under water line are Marelon and located in accessible positions
Hose connections to inboard side of stainless steel sea-cocks have two stainless steel hose clamps
For osmosis protection an ISO / NPG Gelcoat is used
Standard Gelcoat colour is white
Rudders are solid GRP boasting a 55mm solid stainless steel shaft with hydraulic steering system
Structural bulkheads are of Lloyds Marine ply wood construction and hand laminated to hull and deck
Bulkhead thickness is 24mm
Dedicated collision bulkheads at bow, at transom (to protect the engines) and at the bottom section of each keel
Underwater epoxy – Antifouling application
DECK AND FITTINGS
The deck is of sandwich composite construction using Quadriaxial-stitched fabrics with end grain Balsa of appropriate thickness as the core
High density material under all deck fittings with stainless steel backing plates.
Deck surface has a moulded diamond patterned non-slip finish.
Standard Gelcoat colour is white.
Electric under deck horizontal anchor windlass 12v 1500 watt with wired remote in foredeck anchor locker.
Anchor – Delta 50kg, 75m of 10mm chain, 100m 16mm warp (was 50m before)
Stainless steel shroud chain plates are bolted to hull in area of structural bulkheads.
Two recessed water tank fillers fitted on coachroof so as to act as rain water collection points
Two Diesel fillers fitted on aft top transom step
Breathers exit above deck level.
2 x 110v Electricity dock inlets on transom with shore power leads
1 x 220v Electricity dock inlet on transom with shore power lead
Electrical stainless steel gooseneck at mast.
Furling line lead blocks leading control lines back to cockpit
Fore deck hatches for storage with recessed and lockable stainless steel catches with stainless steel gas struts
Large access opening deck hatch on port foredeck peak gives access to white flow coated locker with ladder going down into locker.
Cabin windows, non-opening, in tinted glass.
Two x 5kg composite gas bottles with LP regulator and pressure gauge in self-ventilating gas locker in cockpit seat.
Steaming lights on crossbeam A-frame, mast and aft targa
Stainless steel toe rail covering hull deck bond.
Two pull-pits with white moulded GRP seats
Side railings with mid gate in solid stainless steel tubing with middle stainless steel wire. Railing height 720mm
8 x Large mooring cleats for marina berthing.
2 x Transom cleats on inner hull
Roller furling self tacking Jib with curved traveller situated in front of mast step with furler control line and jib sheet led aft to winch in cockpit
Complete main-sheeting system with blocks led aft to winch in cockpit.
All lines from mast and sailing gear led aft in recessed deck moulding with cover plates
Sliding aluminium entrance door with 6.5mm laminated clear glass with lock
Recessed sliding door grating in cockpit floor.
Fire extinguisher in cockpit
Wet and dry lockers in cockpit for storage.
Large teak cockpit table incorporating world map in black polyurethane on fixed aluminum legs.
Small teak cockpit table on adjustable single aluminum leg enabling to be converted to a bed
Wet bar in cockpit incorporating solid surfacing counter top with under mounted GRP sink and mixer tap
Fridge for cockpit – Vitrifrigo C 60iX 60Ltr
Drinks cupboard with shelves and bottle storage in wet bar with acrylic door and LED lights
Overhead recessed LED cockpit lights
Blue exterior courtecy floor lighting
X5 LED backlit corporate logo on bulkhead in cockpit
All lockers are self-draining and flow coated white
One anodized aluminium structural cross beam with A-frame through bolted on bow.
Two large open net trampolines lashed to deck.
Stainless steel swimming ladder on Port side with stainless steel handrail up each stepped transom.
Integral complete overhead targa bar with soft furnishing inserts
Build into the targa on port side a overhead shower with hot and cold water
Bimini sides and back with mesh windows that can also be closed for privacy, fitted in a recess in overhead moulding for flush look

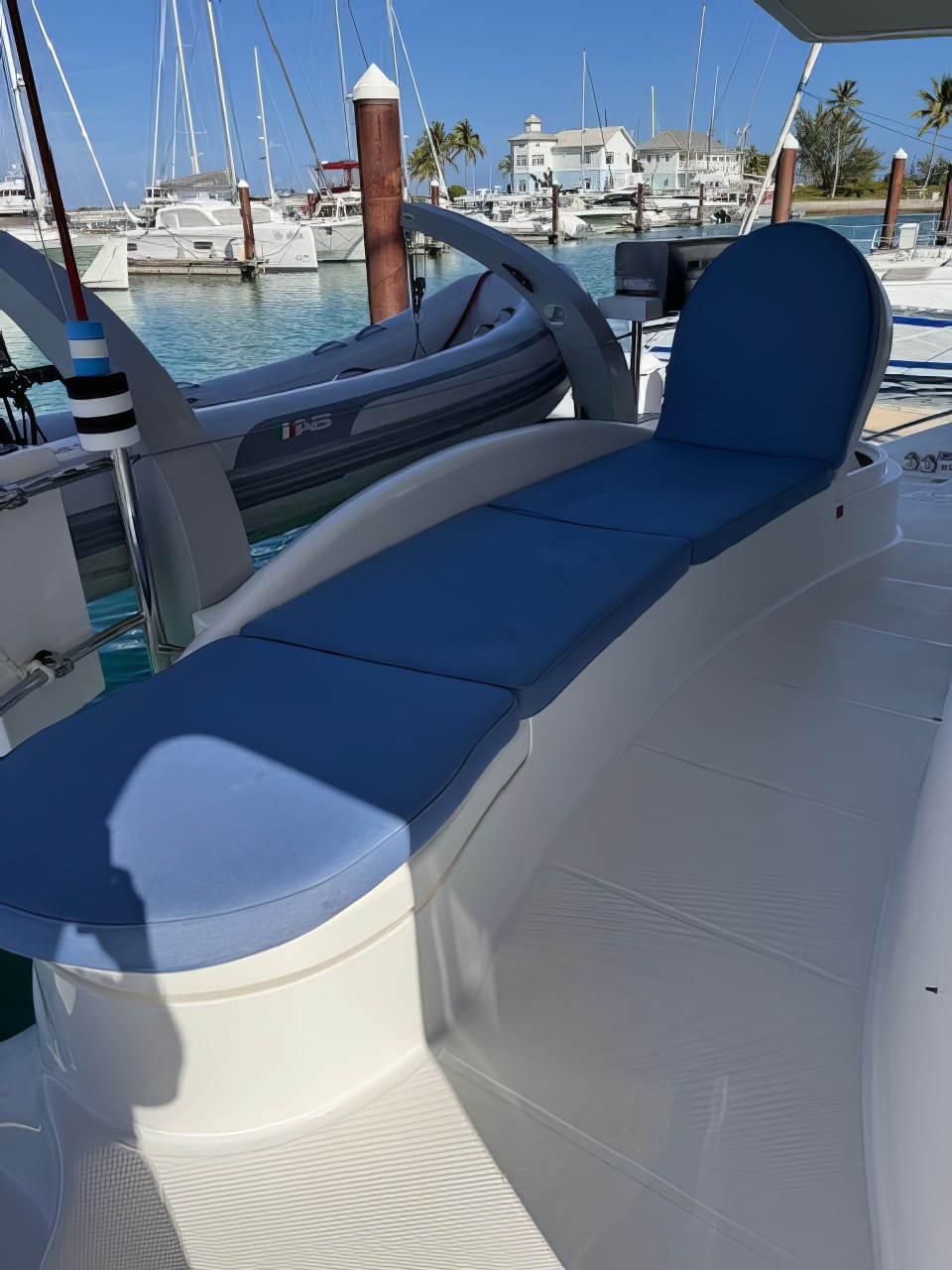

Recliner style sunbed on aft deck incorporating stowage underneath – stainless steel railing/cable to prevent person falling overboard
1 x 12 volt outlet at cockpit table
1 x 110 volt splash proof outlet at cockpit table
14 x large, non-opening recessed windows in tinted glass in hull outer sides
Cockpit and helm cushions including backrests
Davits on aft sunbed with remote controlled electric winches fitted in sunbed locker. Ropes and blocks included. (Manual override and radio remote controller)

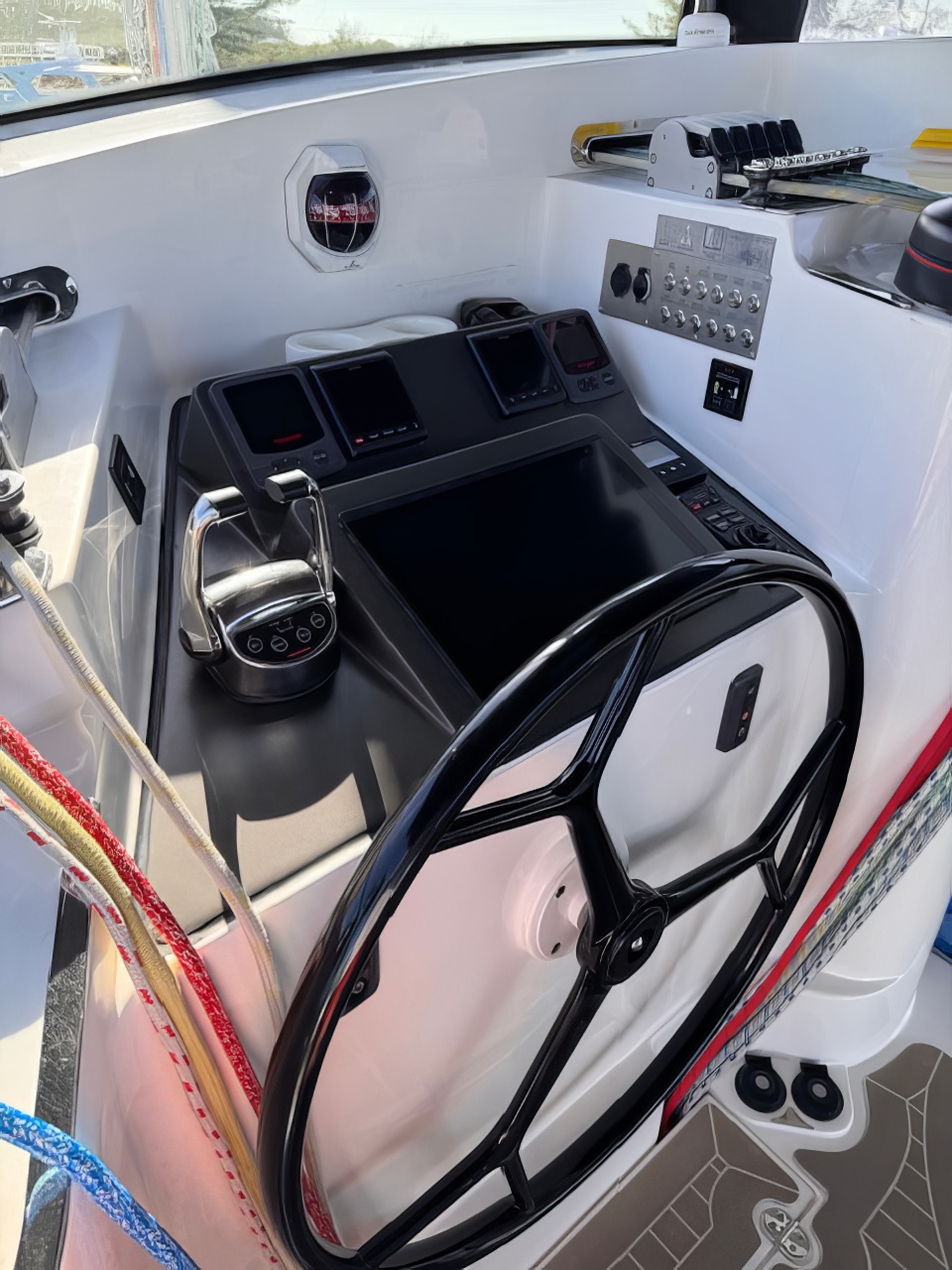

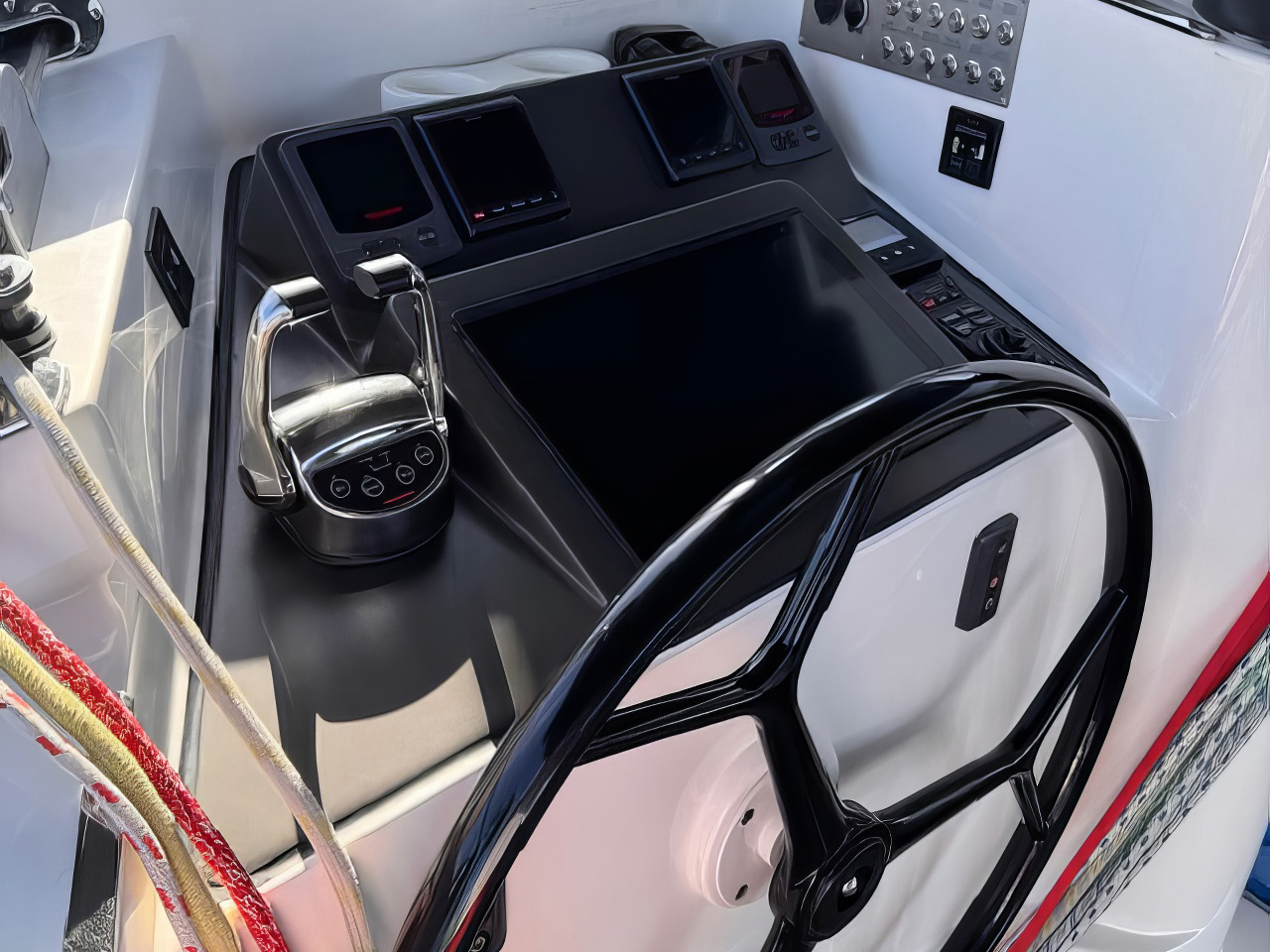

HELM STATION
All lines led back to helm for easy single handed sailing
Winches are 2 speed electric self tailing, size 60
14 x rope clutches at helm station for clutching sheets, halyards and ropes
Extra large double seat helm chair with padded backrest in cockpit
Large power dampened compass ahead of helm station in cockpit.
1 x Garmin GMI20 multi display instrument at helm
1 x Garmin 16″ GPSMAP chart plotter with GPS and remote keypad
1 x Garmin GMR 24X HD 36 mile – 4KW radar
1 x Garmin autopilot – GHP reactor 12 core pack with GHC20 display
1 x Garmin GHS10 wired command mike
Glass windscreen and extended sliding cloth bimini above helm chair
Separate moulded instrument module with angled mounting surfaces for instruments and incorporated cup holder
Storage locker with lid for ropes below steering wheel
C-Zone switch panel to control various systems from helm
1 x 12V outlet and 1 x USB outlet
Second control with chain counter for windlass operation at cockpit

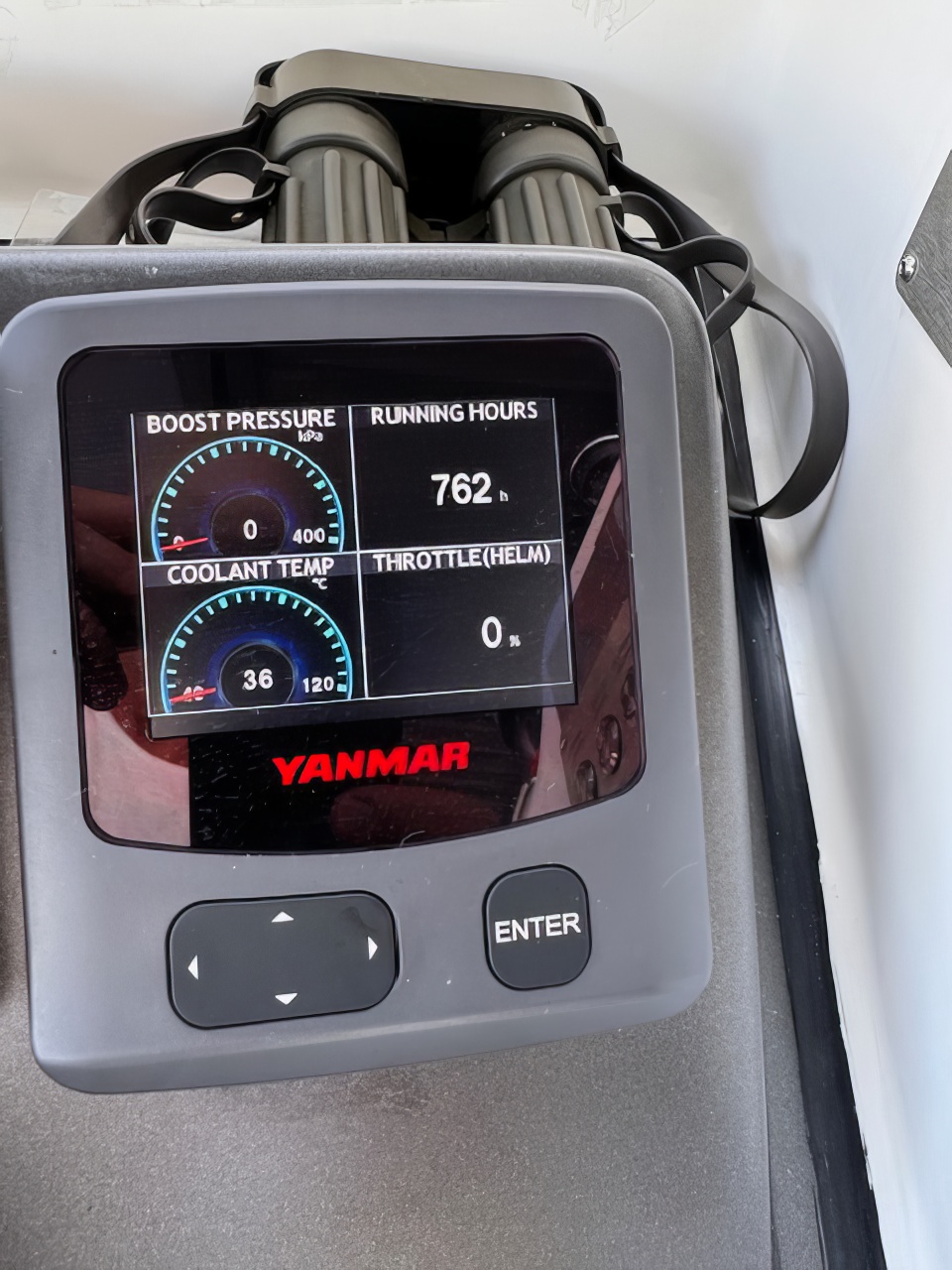

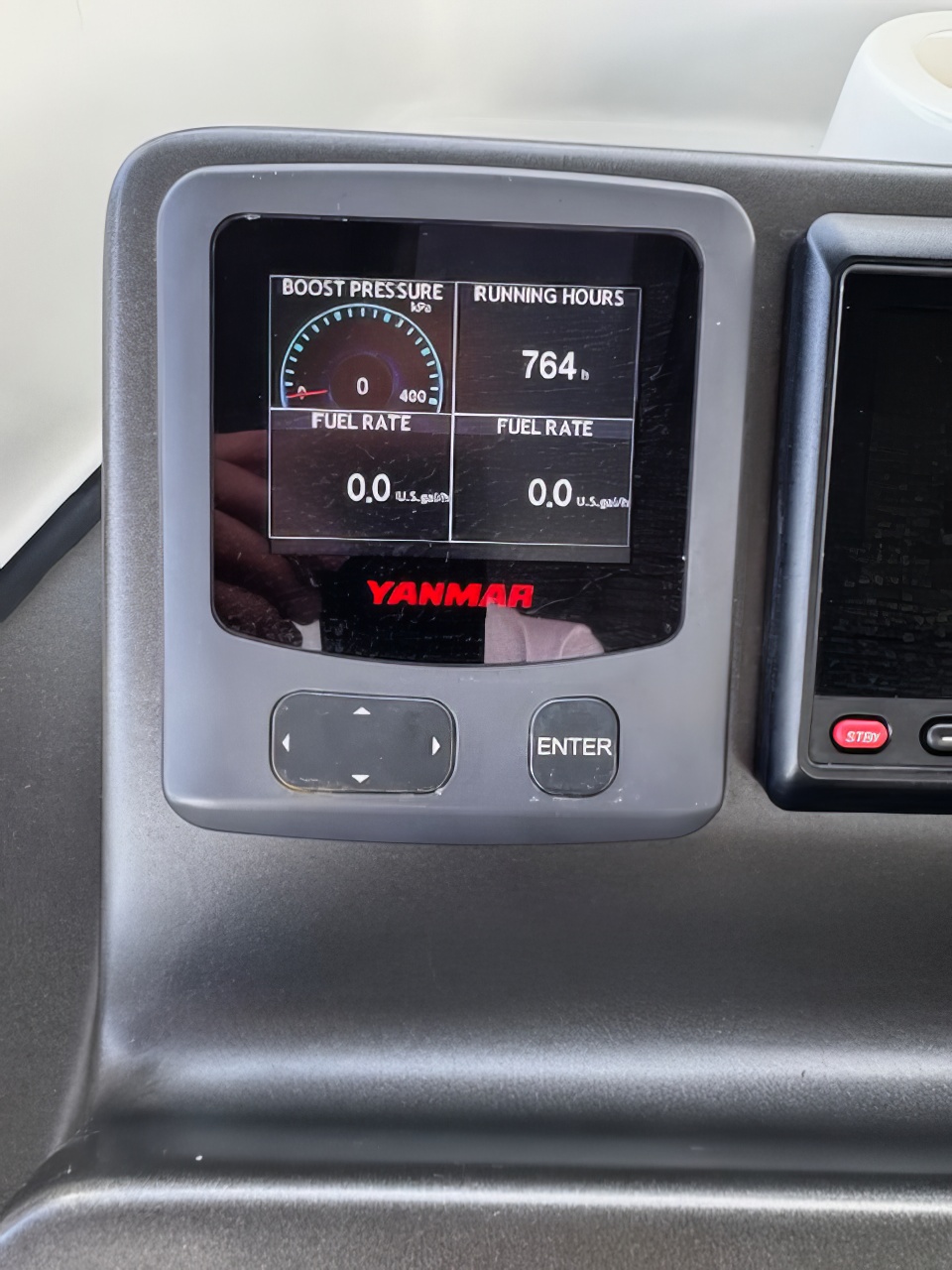

Engine instrumentation, electronic throttle and gear controls
800mm, Black composite three spoke race look helm wheel
RIGGING AND SAILS
Spars by Sparcraft S.A.
Spars built of extruded aluminium and anodised silver-grey.
Single spreader fractional rig with internal wiring shielded in PVC tube secured to mast.
Mast grounded through shrouds/chain plates to copper grounding plates in keels
Batten car system for mainsail
Boom, standing and running rigging.
Shrouds have chafe guards
Flag halyards from bottom spreader
Furling system for headsails.
Navigation, deck and anchor lights
VHF aerial on top of mast.
Sails by North Sails – Full batten mainsail with three reefs totalling 100m²
Stack pack with corporate logo.
2 x mainsail lazy-Jacks
1 x mainsail halyard – 12mm Spectra
1 x Reacher furler halyard – 8mm 7×19 wire with short braid section and sliding adjuster on mast
1 x Jib furler halyard – 8mm 7×19 wire with short braid section and sliding adjuster on mast
1 x Spinnaker halyard – 12mm Spectra
1 x Self tacking Jib sheet – 12mm Spectra
1 x Main boom topping lift – 12mm Braid
1 x Mainsheet sheet – 12mm Spectra
1 x Reefline no1 – 12mm Spectra
1 x Reefline no2 – 12mm Spectra
1 x Reefline no3 – 12mm Spectra
1 x Fixed outhaul – 12mm Spectra
2 x Mainsail traveller car control lines – 10mm braid
2 x Reacher sheets – 14mm Spectra
Furling 36m² Self taking Jib with UV including deck hardware
Furling 83m² Reacher with UV including deck hardware
1 x Reacher furling line – 10mm Spectra Braid
1 x Jib furling line – 10mm Spectra Braid
INTERIOR FINISHES
All joinery work and finishing in the living areas is done in accordance with the best yacht practice, using first-grade marine materials.
All Veneer and solid wood are of V20 Oak limed wash 178.42 with a matt polyurethane acrylic lacquer for a professional and durable finish.
Interior of all cupboards where possible have lined or painted surface
Ceilings and topside linings in light cream soft touch leather furnishings
Dark brown/grey plastic laminated hi wear flooring throughout
Cabin mattresses is 120mm – multilayer foam with several densities covered with fabric.
Basin units, basins and galley tops made from Corian solid surfacing
SALOON
Large saloon area with 360 degree panoramic view
U-shaped settee with cloth upholstery
Large, convertable saloon table with internal 110V outlet for printer
Combination shade-mosquito screens for opening deck hatches – Goiot
Pleated blinds for saloon cabin windows
Storage compartments under saloon seating
Overhead stylish LED recessed ceiling lights.
Light switches to operate and dim light output

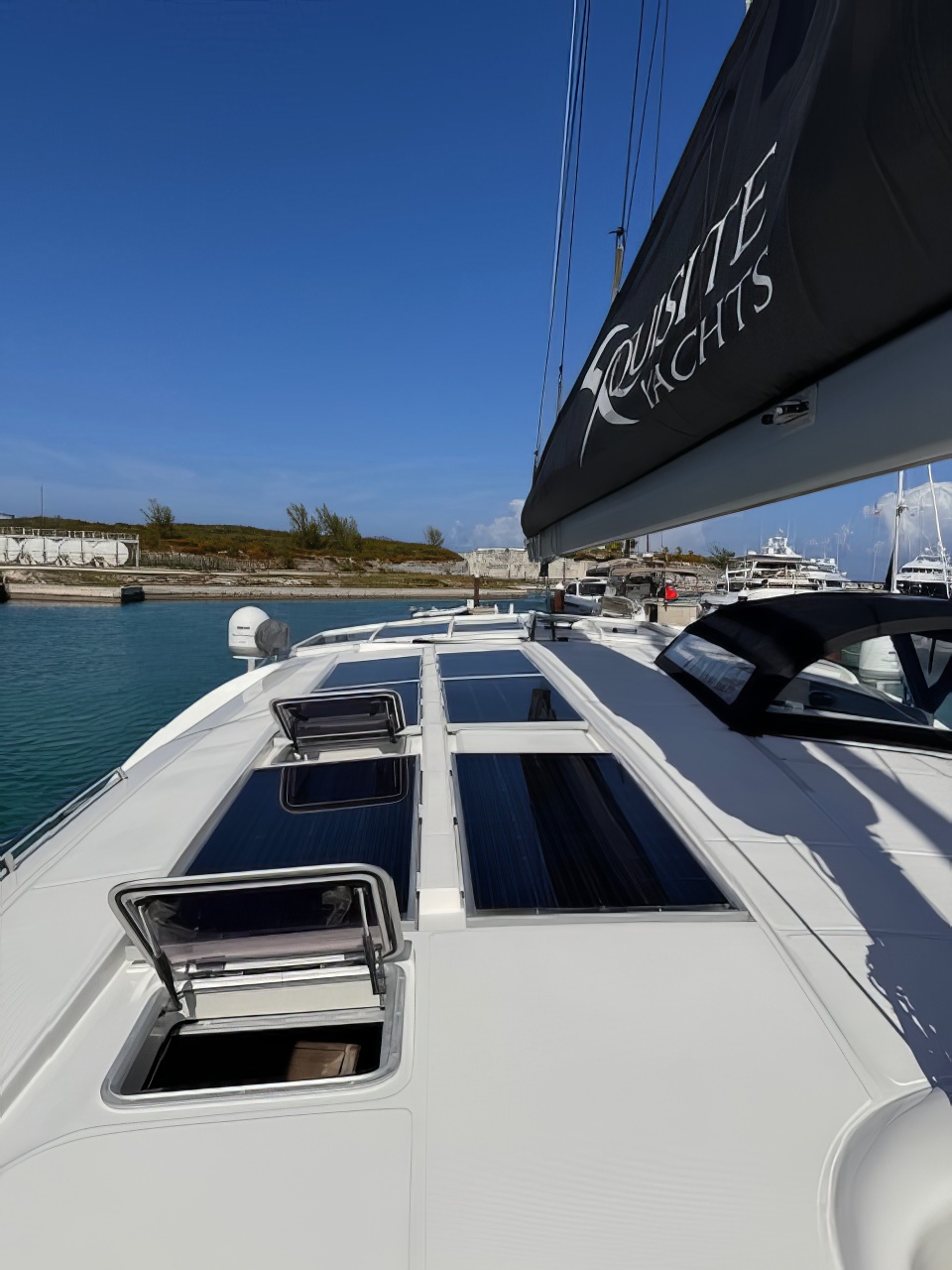

3 x large opening deck hatches
Locking Sliding aluminium door with open/closed positions (Titanium finish)
Escape hatch in saloon floor with sand blasted glass ‘world map’ logo
Sliding window to cockpit.
Laminated flooring throughout.
110V outlets
1 x Cabin fan
2 x 12 000 BTU air con units with outlets at nav and settee
ENTERTAINMENT AREA
Large U-shaped cupboard unit with entertainment equipment and storage drawers

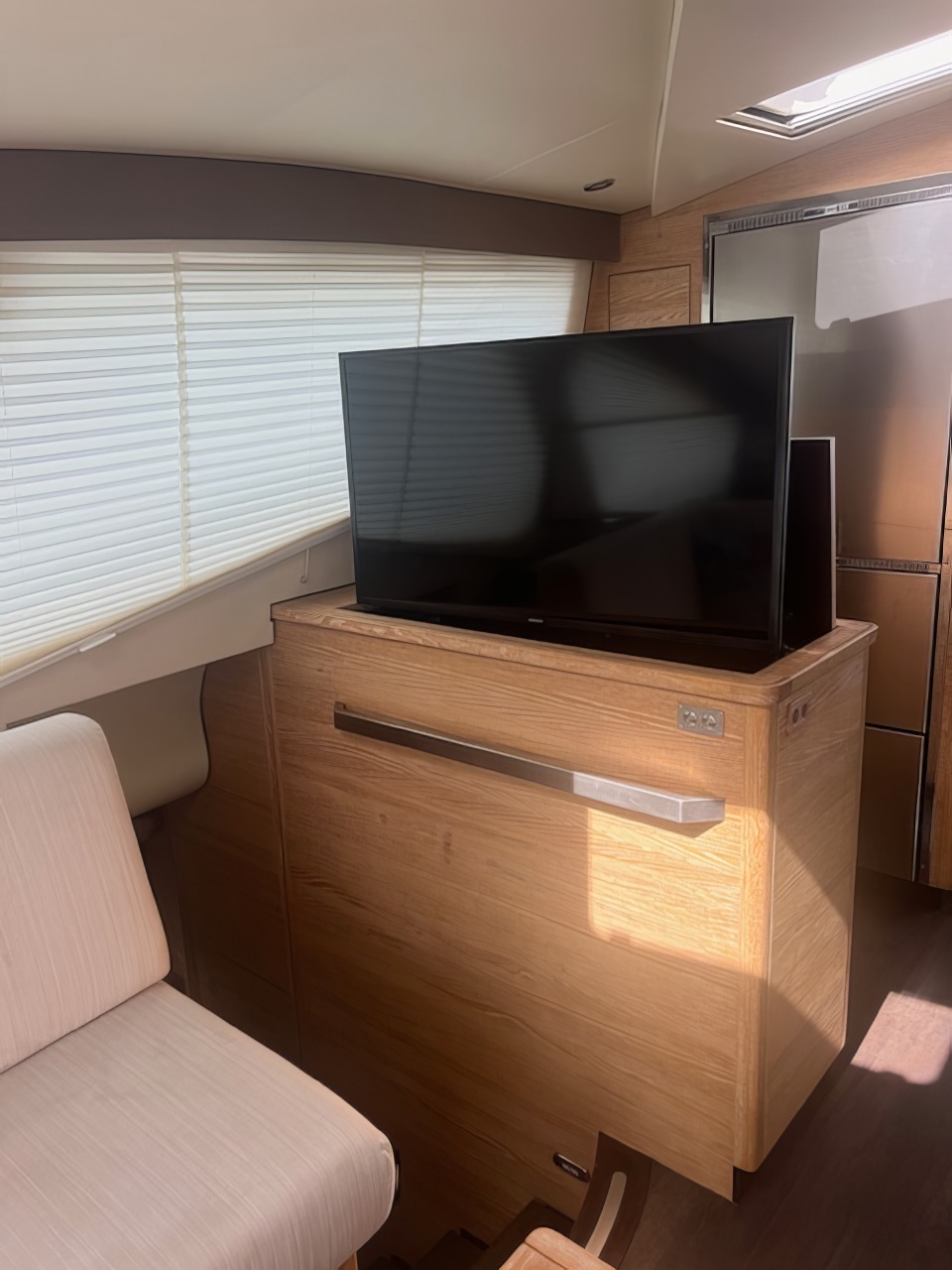

1 x 40″ LED smart television with built in media player on TV lift system
Large vertical cupboard housing refrigiration/freezer unit with small storage cupboard on the side
12v compressor driven door fridge-capacity 157L combined with a 2 drawer deep freezer – capacity 144L with incorporated ice maker
GALLEY AND PANTRY
Galley in main saloon to Port with direct access to cockpit
Large L-shaped counter top in solid surfacing with double under counter sink with chromed professional mixer tap
Large double drawers under sink unit with heavy duty drawer slides
Integrated dish draining area.
Large cupboard doors with storage
One set of drawers.
Drawer for spice and condiments
Rubbish bin in dedicated drawer for easy access
Four-burner gas hob with flame failure device and pot holders.
Extraction system above hob
Speed oven with grill (convection microwave)
Large Island unit with solid surfacing
Large single cupboard
Recessed overhead LED lighting.
Light switch and dimmer for overhead lighting
Electronic Gas shut off valve/alarm with 1 x sniffer
Laminated flooring.
Numerous 110v outlets
Fire extinguisher
Fire blanket
NAVIGATION STATION
Situated in port front section of saloon and forward facing.
Very good 360 degree visibility due to large cabin windows
Mounted in a console is a custom designed switchboard with digital switching switches and digital battery monitoring system
L-shaped nav desk with large countertop
Numerous cupboards with doors and drawers.
1 x 110v outlet and 1 x 110v outlet with USB
1 x 12 volt outlet
Chart light
Overhead recessed LED lighting
Fire extinguisher
1 x Garmin 300 VHF radio with AIS receiver
1 x Fusion MS IP 700i series music system with 4 x MS-FR7021 7″ 260watt marine speakers (two in saloon and two in cockpit)
Office chair at navigation station
iPad with LaunchPort docking station and sleeve
Le Grand USB (x3) outlet fitted to dashboard
1 x Cabin fan
2 X PORT HULL GUEST CABINS
Access to each of the cabins is from the saloon by a companionway. Privacy is provided by a cabin door leading to each cabin
Large 1.95m x 1.4m bed with soft furnished headboard.
Island style bed with steps up each side giving separate access.
Recessed bookshelf with cabinet and wardrobe
Extra large storage under bed with drawers
Dressing table with drawers underneath.
Overhead opening deck hatch for ventilation
Combination shade-mosquito screens for opening deck hatches – Goiot
Several large non opening hull windows.
Reading lights, overhead recessed ceiling lights, all LED
Switch for cabin lights
Fire extinguisher
Laminated flooring throughout.
110v outlets with 1 x USB outlet close to bed
1 x Cabin fan (each cabin)
Pleated blinds for hull cabin windows
1 x 8000 BTU air con unit (per cabin) with one upper level outlet for each cabin
2 X PORT HULL GUEST EN-SUITE BATHROOMS
Bathroom enclosed with clear acrylic with sandblast vinyl design and dual pupose door
Electric toilet
Solid surfacing counter top with integrated washbasin
Pressurized hot and cold water professional mixer tap.
Cupboard and storage underneath
Overhead mirror unit with storage for bathroom accessories
Opening deck hatch for ventilation.
Combination shade-mosquito screens for opening deck hatches – Goiot
Opening Area 1 non opening port light
Towel rail, soap holder and toilet paper holder
1 X ENTIRE STARBOARD HULL OWNERS CABIN WITH EN-SUITE BATHROOM
Access to the owners hull is from the saloon by a companionway and privacy is provided by a large wooden sliding door
Large solid surfacing counter top with integral “his” and “hers” double basins.
Professional hot and cold mixer taps
Cupboards underneath for storage
Large mirror units above with storage for bathroom accessories
Electric toilet
110V waterproof outlet
Washer drier mounted in dedicated cupboard with removable shelves above
A fully enclosed large shower moulding with Acrylic opening door and seat
Opening deck hatch for ventilation.
Combination shade-mosquito screens for opening deck hatches – Goiot
Large non opening hull window
Towel rail, soap holder and toilet paper holder
Overhead recessed LED lighting
Extra large dressing table with built in desk with drawers
110V outlets with 1 x USB outlet close to bed
Extra large wardrobes with hanging locker and shelves
Large Dresser unit with cupboards for storage
Electronic safe installed in main wardrobe
Double settee/lounger with storage underneath
King-size 1.95m x 1.4m bed with soft furnished headboard.
Island style bed with steps up each side giving separate access.
4 x large non opening vertical windows on outboard hull next to bed giving lots of light and vision
Pleated blinds for hull cabin windows
Extra large storage under bed with drawers
Recessed bookshelf with shelf and cupboards on inboard side next to bed
Overhead opening deck hatch
Light switch and for cabin lights
1 x Cabin fan
1 x 12 000 BTU air con unit with two upper level outlets
ENGINES AND ENGINE ROOM
Access to the engine rooms is via 2 specially moulded large hatches in the aft cockpit floor.
These hatches are lockable and feature gas struts
Two x Yanmar Marine diesel engines Model 4JH80-TE (80HP at 3200RPM) with SD60-T sail drive units, both freshwater cooled, Stbd side coupled via the heat exchanger to a 60L Calorifier for hot water.
Each engine is mounted on a specially moulded bed.
Complete passive ventilation system
Wet exhaust system including water trap, gooseneck and anti-siphon.
Yanmar fixed 3 blade propeller
Fuel capacity is 790L, 2 x tanks, 1 for each engine with shut off valve.
Fuel transfer pump to transfer fuel from one tank to another
Fuel filter/water separator in each engine room
Fuel tanks vented to deck via a breather with flame arrestor.
Both engines start from a dedicated engine starting battery mounted in a each engine room.
Overhead LED lights in each engine compartment.
2 x 120amp standard alternators fitted by engine manufacturer
Engine room soundproofed (new improved system)
Fireboy automatic fire extinguishing system in each engine room
2 x Large capacity bilge pump with hi-water alarm in each engine room
Emergency tiller arm supplied on dedicated brackets in stbd engine room.
Toolbox with assorted tools
PLUMBING
All freshwater hoses of re-enforced PVC tubing with “speed fit” connections.
All hot water piping enclosed in a neoprene covering to maintain temperature over long periods of time
860 L rigid polyethylene water tanks in front lockers for easy removal and cleaning.
Tank vents terminate on deck
One water heater of 60lt with 110V resistor element. Complete with strainers, check valves and accumulator tank.
All grey water from showers is discharged overboard by a automatic drain pump
Two large capacity water pressure pumps mounted in front lockers near water tanks with accumulator tank
Each pump draws water from the appropriate fresh water tank and service the entire boat.
100 Ltr/26.42 US gal/min manual bilge pump, one for each hull.
Outlets are above water level and discharge overboard.
Holding tanks for 3 x toilets.
4 x hi capacity electric bilge pumps with automatic sensors for main bilge area.
Washer drier in forward area of stbd heads. Laundry area includes removable shelves at back of washer dryer.
Water maker – Newport 400 NP-MK II-400S fully automatic with backwash/fresh water flush – 62Ltr + Connect Controller (new digital controller panel)
Dishwasher – 45cm D/Washer – 10 place setting
Connection for hose to hose down chain in windlass locker
Fresh water filter for ice maker fitted in cupboard next to fridge
ELECTRICAL
On board DC electrics are 12/24V with two wire-insulated return.
Wires are sized to minimize voltage drop.
All light current wiring is silicon tinned wiring which is flame proof and does not give off toxic vapours
All light current conductors carrying an excess of 50 Amps are 50-70mm².
All light current conductors programmed and powered by C-Zone digital switching
Batteries – the ship’s auxiliary load consists of 6 x 1000 Ahr 2V Gel batteries
A separate battery is supplied for engine starting.
For good heavy current termination, copper tinned bus bars are used.
A comprehensive DC main digital switching switch panel is located in the Nav Station.
Mastervolt Easyview for battery status monitoring
AC circuit – including shore power inlet sockets, shore power cord, electrical panel with necessary breakers and earth leakage.
Euro American 2 pin and universal style AC outlets with USB facility fitted at various locations on the vessel
2 x large under water Zinc anodes fitted to hull. DC and AC are common grounded. Zinc saver
Charger – 1 x Mastervolt Chargmaster 24/100-3 100amp battery charger

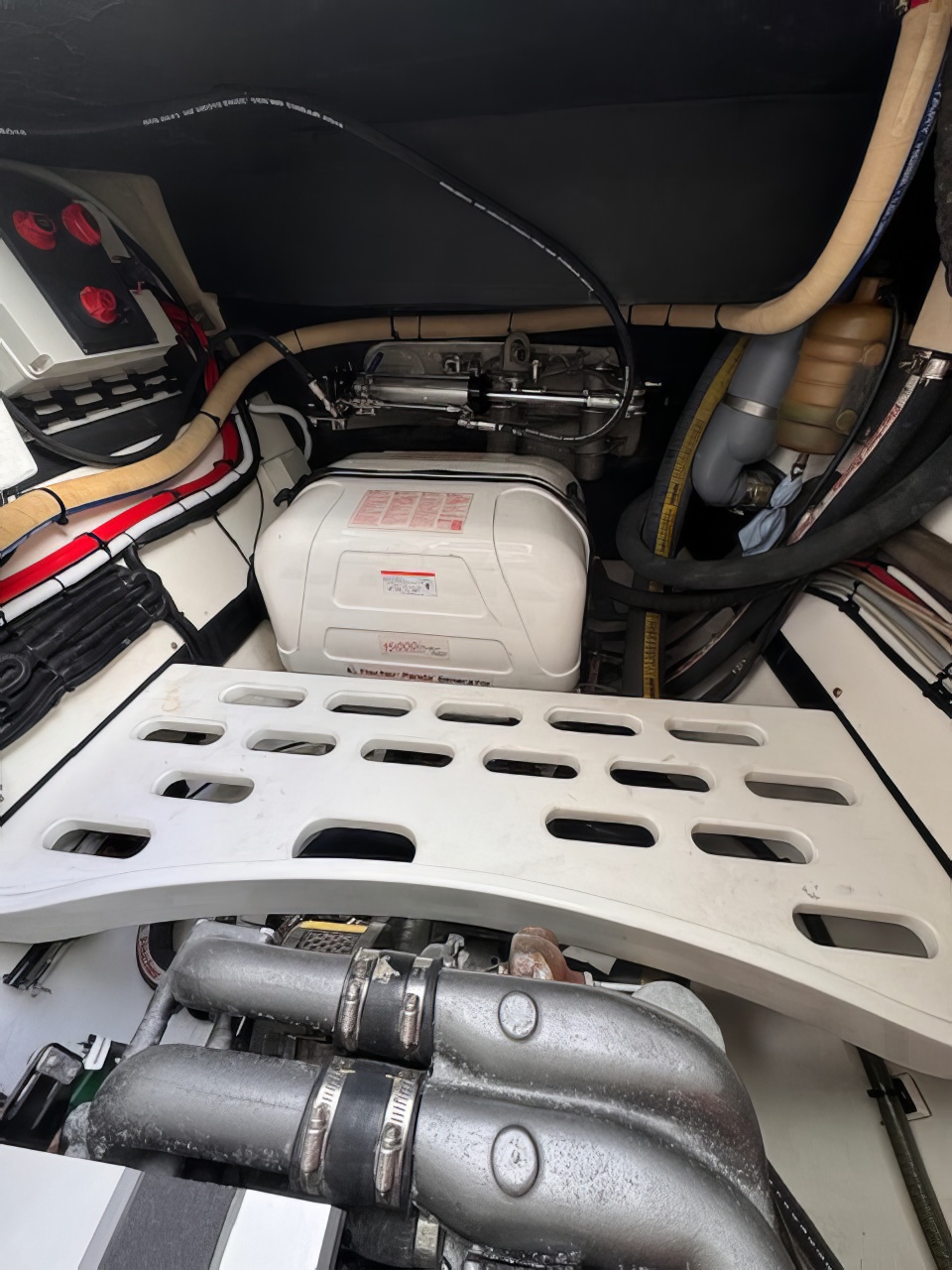

Genset – Fischer Panda 15000i PMS – 12KW/15KVA variable speed
Invertor Charger – Mastervolt Mass Combi 24/3000W/140A-120V/60HZ
Solar panels – 6 x 150 Watt on saloon coachroof with 1 x 60 Amp Mastervolt MPPT solar regulator
SAFETY EQUIPMENT
8 fenders / 10 x 10m 18mm tie up ropes
Category 1 offshore safety equipment including 8 man life raft – Viking
The hull is of sandwich composite construction using Quadriaxial stitched fabrics, Divinicell composite PVC foam and Epoxy Vinyl Ester resin. This gives a stiff laminate with excellent strength and lightweight properties
The engine beds are of GRP and bonded to the hull
Sea-cocks under water line are Marelon and located in accessible positions
Hose connections to inboard side of stainless steel sea-cocks have two stainless steel hose clamps
For osmosis protection an ISO / NPG Gelcoat is used
Standard Gelcoat colour is white
Rudders are solid GRP boasting a 55mm solid stainless steel shaft with hydraulic steering system
Structural bulkheads are of Lloyds Marine ply wood construction and hand laminated to hull and deck
Bulkhead thickness is 24mm
Dedicated collision bulkheads at bow, at transom (to protect the engines) and at the bottom section of each keel
Anchor – Delta 50kg, 75m of 10mm chain, 100m 16mm warp (was 50m before)
Stainless steel shroud chain plates are bolted to hull in area of structural bulkheads.
Two recessed water tank fillers fitted on coachroof so as to act as rain water collection points
Two Diesel fillers fitted on aft top transom step
Breathers exit above deck level.
2 x 110v Electricity dock inlets on transom with shore power leads
1 x 220v Electricity dock inlet on transom with shore power lead
Electrical stainless steel gooseneck at mast.
Furling line lead blocks leading control lines back to cockpit
Fore deck hatches for storage with recessed and lockable stainless steel catches with stainless steel gas struts
Large access opening deck hatch on port foredeck peak gives access to white flow coated locker with ladder going down into locker.
Cabin windows, non-opening, in tinted glass.
Two x 5kg composite gas bottles with LP regulator and pressure gauge in self-ventilating gas locker in cockpit seat.
Steaming lights on crossbeam A-frame, mast and aft targa
Stainless steel toe rail covering hull deck bond.
Two pull-pits with white moulded GRP seats
Side railings with mid gate in solid stainless steel tubing with middle stainless steel wire. Railing height 720mm
8 x Large mooring cleats for marina berthing.
2 x Transom cleats on inner hull
Roller furling self tacking Jib with curved traveller situated in front of mast step with furler control line and jib sheet led aft to winch in cockpit
Complete main-sheeting system with blocks led aft to winch in cockpit.
All lines from mast and sailing gear led aft in recessed deck moulding with cover plates
Sliding aluminium entrance door with 6.5mm laminated clear glass with lock
Recessed sliding door grating in cockpit floor.
Fire extinguisher in cockpit
Wet and dry lockers in cockpit for storage.
Large teak cockpit table incorporating world map in black polyurethane on fixed aluminum legs.
Small teak cockpit table on adjustable single aluminum leg enabling to be converted to a bed
Wet bar in cockpit incorporating solid surfacing counter top with under mounted GRP sink and mixer tap
Fridge for cockpit – Vitrifrigo C 60iX 60Ltr
Drinks cupboard with shelves and bottle storage in wet bar with acrylic door and LED lights
Overhead recessed LED cockpit lights
Blue exterior courtecy floor lighting
X5 LED backlit corporate logo on bulkhead in cockpit
All lockers are self-draining and flow coated white
One anodized aluminium structural cross beam with A-frame through bolted on bow.
Two large open net trampolines lashed to deck.
Stainless steel swimming ladder on Port side with stainless steel handrail up each stepped transom.
Integral complete overhead targa bar with soft furnishing inserts
Build into the targa on port side a overhead shower with hot and cold water
Bimini sides and back with mesh windows that can also be closed for privacy, fitted in a recess in overhead moulding for flush look
Recliner style sunbed on aft deck incorporating stowage underneath – stainless steel railing/cable to prevent person falling overboard
1 x 12 volt outlet at cockpit table
1 x 110 volt splash proof outlet at cockpit table
14 x large, non-opening recessed windows in tinted glass in hull outer sides
Cockpit and helm cushions including backrests
Davits on aft sunbed with remote controlled electric winches fitted in sunbed locker. Ropes and blocks included. (Manual override and radio remote controller)
Access to the engine rooms is via 2 specially moulded large hatches in the aft cockpit floor.
These hatches are lockable and feature gas struts
Two x Yanmar Marine diesel engines Model 4JH80-TE (80HP at 3200RPM) with SD60-T sail drive units, both freshwater cooled, Stbd side coupled via the heat exchanger to a 60L Calorifier for hot water.
Each engine is mounted on a specially moulded bed.
Complete passive ventilation system
Wet exhaust system including water trap, gooseneck and anti-siphon.
Yanmar fixed 3 blade propeller
Fuel capacity is 790L, 2 x tanks, 1 for each engine with shut off valve.
Fuel transfer pump to transfer fuel from one tank to another
Fuel filter/water separator in each engine room
Fuel tanks vented to deck via a breather with flame arrestor.
Both engines start from a dedicated engine starting battery mounted in a each engine room.
Overhead LED lights in each engine compartment.
2 x 120amp standard alternators fitted by engine manufacturer
Engine room soundproofed (new improved system)
Fireboy automatic fire extinguishing system in each engine room
2 x Large capacity bilge pump with hi-water alarm in each engine room
Emergency tiller arm supplied on dedicated brackets in stbd engine room.
Location: Freeport, Bahamas
Port engine hours: 764 h
Starboard engine hours: 762 h
Price: SOLD!
