Seize the rare opportunity to own the only Xquisite X5 PLUS currently available on the market. This exceptional yacht is highly customized, loaded with options, and has already demonstrated her capabilities by safely sailing across the South Pacific with her owners and their two children.She will be available for handover in mid-August in Alicante, Spain, just in time for the new owner to enjoy the peak of the Mediterranean sailing season.

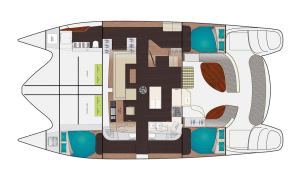

OWNER VERSION – 3x cabins and 3x en-suite heads/bathrooms
GENERAL SPECIFICATIONS
Length overall
16.17m / 53′
Length hull
15.25m / 50′
Beam
8m / 26.2′
Draft
1.35m / 4.4′
Bridge deck clearance Light Craft
1000mm / 3.3′
Mast height above waterline
24m / 78.7′
Sail Area – Mainsail
105 m² / 1130 sqf
Sail Area – Genoa
67 m² / 721 sqf
Sail Area – Jib
39 m² / 420 sqf
Sail Area – Code 65
130 m² / 1400 sqf
Engines
2 x 80 HP
Fresh water (4×215 L tanks)
860 L / 227 gal
Diesel (2×395 L tanks)
790 L / 208 gal
CE Certified
Category A
Light craft displacement
16000 kg / 35274 lbs
UNIQUE EXTRAS
COMFORT PACKAGE
Electric BBQ built into wetbar with Corian lid in cockpit
Cotton pascale, quilted double bed fitted mattress protectors
Canopy shade for foredeck and 2x large bean bacg (or foldable deck seats)
Four button remote for C-Zone system
ELECTRONICS UPGRADE
Additional 2nd Garmin GMI 20 repeater screen at inside nav station
Garmin AIS 800 transceiver (receiver is standard)
BATTERY UPGRADE no charge for these, as it’s already included in the standard specifications!
Upgrade to 20kWh Li-ion batteries
High output Mastervolt alternators with extrenal smart controllers on both engines (110Ah on 24V)
ENTERTAINMENT PACKAGE
1x TV in master cabin
2x Bose speakers to be fitted on spreaders
4 x Underwater LED lights
Apple TV
COMMUNICATIONS PACKAGE
Cellular Modem / WiFi Router Antenna System
Iridium Go with external aerial on spreader
Starlink High Performance Dish with TP Link High Perfromnace router
FLEXITEEK DECKING
Flexiteek on cockpit floor, steps to helm station and helm station floor and transom and transom steps
SAILS
Code 65 – 130m² on bowsprit and Facnor electric furler. Sheets led back to electric winches at helm station
Furling Gennaker with top down swivel. Sheet led back to electric winches at helm station
Upgraded running rigging
PROPELLER UPGRADE
Gori 3 blade folding propellers with rope cutters
SCUBA PACKAGE
Coltri-6/EM INOX electric dive compressor – Condensate drain with automatic timer
4 x 12L Dumpie Dive Tanks plus holder and filling hose
WATERMAKER UPGRADE
Water maker – Newport NP-MK IIZ-1000 fully automatic with backwash fresh water flush – 150Ltr/hr (in lieu of Newport 400)
SAFETY EQUIPMENT
2 EPIRBS
Lifesling
Fully equipped ditch bag
High output emergency bilge pump
MOB inflatable IOR Dan Bouy
Strobe lights
ANCHOR UPGRADE
Stainless steel ULTRA anchor with flip swivel (in lieu of DELTA)
SPARES AND TOOLS
Tool cabinet instead of standard drawers or additional freezer
Professional tool kit in foam inserts in tool cabinet
Comprehensive spares kit
DINGHY & OUTBOARD ENGINE
AB 12′ aluminum hull tender with Yamaha 25HP EFI outboard engine (fitted with starter battery, fuel filter, electric bilge pump, custom lifting bridles for dinghy davits)
WORLDWIDE DELIVERY
Delivery to USA/Caribbean/Mediterranean aboard cargo ship
CUSTOMIZATIONS
COLORS
Furniture – Oak Lime Textured Mat
Floor – Sash Oak (grey)
Upholstery – Sterling
Countertops – Light Grey
Accent Panels – Platinum
Headliner – Off-White
Baseboards, trims and bathroom doors – Brown greyish formica (don’t know the name)
Outside Upholstery – Titanium
Flexiteek – Weathered with white caulking
MASTER CABIN
Leather pouch (9in wide x 7in tall; bottom of pouch positioned 22in from ceiling of cabin, it lines up with line dividing two accent panels in the head board of the beds) attached to headliner on outboard side of master cabin – made to store phone, iPad, earphones, small charger…
Bookshelf above vanity table in master cabin
MASTER BATHROOM
Intstall double tower rack high up so cabinet can open on same wall as toilet paper holder (consider lowering toilet paper holder slightly so there is more space for towels)
Install fidle made of alum or something else to create storage on top white structural beam/shelf on outboard side above window. This could then be used for keeping an air freshener and other bathroom decoration or supplies
Bench seat outside of shower in Light Grey (same material and color as countertops)
PORT CABINS
Port Bathrooms – Solid light frosting (similar to X5) all around for complete privacy when someone is using the head/toilet. Use frosting with a design around the shower area for aesthetic purposes, not for privacy, i.e. the purpose is to blend in with the frosting around the toilet area vs. create privacy in the shower.
Port Bathrooms (for both bathrooms) – Install double towel rack (not a second rack under existing one, but a rack with 2 rods, 1 in front of the other, so both towels can hang without being on top of each other).
Port aft cabin only – Leather pouch (9in wide x 7in tall; bottom of pouch 22in from ceiling of cabin, it lines up with line dividing two accent panels in the head board of the beds) attached to headliner on outboard side of master cabin – made to store phone, iPad, earphones, small charger…
SALOON
Main table that can be used as coffee table, daybed and dining table.
ADDITIONAL ITEMS
Camera on top of the mast
Dometic Electric Cooler CFX3 75L (not 95L – too big). Includes cover and cushion on top
Change middle stainless steel wire to Dynema life lines all around
Install multiple attachment points in the ceiling of cockpit (primarily targa area) to dry wetsuits, towels, kites, impact vests… We will have lots of wet and heavy gear that will need to be hung often. Points to be installed in a way so that a line can be tied and wetsuits can be drying without water dripping on top of cushions but in the passage area.
Fishing rod holders
Yachtrouter system (wifi/cellular booster)
Extra backrest at helm
Parasailor pre-install (only the fixed hardware)
Ethernet cables from Yacht router to both TVs
Dinghy and full setup with 1st aid kit and mini fire extinguisher
Fully equipped galley with breadmaker, toaster, blender, instant pot, vacuum sealer, soda stream, pots and pans, plates, bowls, cups, cutlery, etc.
Fishing gear
HULL AND APPENDAGES
The hull is of sandwich composite construction using Quadriaxial stitched fabrics, Divinicell composite PVC foam and Epoxy Vinyl Ester resin. This gives a stiff laminate with excellent strength and lightweight properties
The engine beds are of GRP and bonded to the hull
Sea-cocks under water line are Marelon and located in accessible positions
Hose connections to inboard side of stainless steel sea-cocks have two stainless steel hose clamps
For osmosis protection an ISO / NPG Gelcoat is used
Standard Gelcoat colour is white
Rudders are solid GRP boasting a 55mm solid stainless steel shaft with hydraulic steering system
Structural bulkheads are a combination of 80 density foam and Lloyds Marine ply wood hand laminated to hull and deck
Bulkhead thickness is 24mm for ply wood and 28mm for foam core
Dedicated collision bulkheads at bow, at transom (to protect the engines) and at the bottom section of each keel
Underwater epoxy – Antifouling application
DECK AND FITTINGS
The deck is of sandwich composite construction using Quadriaxial-stitched fabrics with 80 density foam of appropriate thickness as the core
High density material under all deck fittings with stainless steel backing plates
Deck surface has a moulded diamond patterned non-slip finish
Standard Gelcoat colour is white
Electric under deck horizontal anchor windlass 24V/1500W with wired remote in foredeck anchor locker
Combination shade-mosquito screens for opening deck hatches – Goiot
Several large non opening hull windows
Reading lights with built in USB outlets, overhead recessed ceiling lights, all LED
Switch for cabin lights
Fire extinguisher
Laminated flooring throughout
110v outlets with 1 x USB outlet close to bed
1 x Cabin fan (each cabin)
Pleated blinds for hull cabin windows
1 x 7000 BTU Inverter BLDC self-contained air con unit (per cabin) with one upper level outlet for each cabin. Control panel is fitted at bunk for easy access
2 X PORT HULL GUEST EN-SUITE BATHROOMS
Bathroom enclosed with clear acrylic with sandblast vinyl design and dual purpose door
Electric toilet
Solid surfacing counter top with integrated washbasin
Pressurized hot and cold water professional mixer tap
Cupboard and storage underneath
Overhead mirror storage unit for bathroom accessories. Now with increased headroom over basin area
Opening deck hatch for ventilation
Combination shade-mosquito screens for opening deck hatches – Goiot
Area 1 non opening port light
Towel rail, soap holder and toilet paper holder
1 X ENTIRE STARBOARD HULL OWNERS CABIN WITH EN-SUITE BATHROOM
Typical area headroom is an average of 2m
Access to the owners hull is from the saloon by a companionway and privacy is provided by a large wooden sliding door
Large solid surfacing counter top with integral “his” and “hers” double basins
Professional hot and cold mixer taps
Cupboards underneath for storage
Large mirror units above with storage for bathroom accessories
Electric toilet
110V waterproof outlet
Washer drier mounted in dedicated cupboard with removable shelves above
A fully enclosed large shower moulding with Acrylic opening door and seat
Opening deck hatch for ventilation
Combination shade-mosquito screens for opening deck hatches – Goiot
Large non opening hull window
Towel rail, soap holder and toilet paper holder
Overhead recessed LED lighting
Extra large dressing table with built in drawers and Ottoman style seat
110V outlets with 1 x USB outlet close to bed
Extra large wardrobes with hanging locker and shelves
Electronic safe installed in main wardrobe
Large Dresser unit with cupboards for storage
Double settee/lounger with storage underneath
King-size 1.95m x 1.4m bed with soft furnished headboard
Island style bed with steps up each side giving separate access
4 x large non opening vertical windows on outboard hull next to bed giving lots of light and vision
Pleated blinds for hull cabin windows
Extra large storage under bed with drawers
Recessed bookshelf with shelf and cupboards on inboard side next to bed
1 x 10 000 BTU Inverter BLDC self-contained air con unit with two upper level outlets. Control panel is fitted at bunk for easy access during night
2 x Fire extinguishers
ENGINES AND ENGINE ROOM
Access to the engine rooms is via 2 specially moulded large hatches in the aft cockpit floor
These hatches are lockable and feature gas struts
Two x Yanmar Marine diesel engines Model 4JH80-TE (80HP at 3200RPM) with SD60-T sail drive units, both freshwater cooled, Stbd side coupled via the heat exchanger to a 60L Calorifier for hot water
Each engine is mounted on a specially moulded bed
Each engine is fitted with an additional 24V/110A High Output Mastervolt Alternator for charging the Li-Ion House Batteries trough a Charge Regulator
Complete passive ventilation system
Wet exhaust system including water trap, gooseneck and anti-siphon
Yanmar fixed 3 blade propeller
Fuel capacity is 790L, 2 x tanks, 1 for each engine with shut off valve
Fuel transfer pump to transfer fuel from one tank to another
Fuel filter/water separator in each engine room
Fuel tanks vented to deck via a breather with flame arrestor
Both engines start from a dedicated engine starting battery mounted in a each engine room
Overhead LED lights in each engine compartment
1 x 120amp standard alternators fitted by engine manufacturer on each engine for charging dedicated engine start battery
Engine room soundproofed
Fireboy automatic fire extinguishing system in each engine room
2 x Large capacity bilge pump with hi-water alarm in each engine room
Emergency tiller arm supplied on dedicated brackets in stbd engine room
Toolbox with assorted tools
PLUMBING
All freshwater hoses of re-enforced PVC tubing with “speed fit” connections
All hot water piping enclosed in a neoprene covering to maintain temperature over long periods of time
860 L rigid polyethylene water tanks in front lockers for easy removal and cleaning
Tank vents terminate on deck
One water heater of 60lt with 110V resistor element. Complete with strainers, check valves and accumulator tank
All grey water from showers is discharged overboard by a automatic drain pump
Two large capacity water pressure pumps mounted in front lockers near water tanks with accumulator tank
Each pump draws water from the appropriate fresh water tank and service the entire boat
100 Ltr/26.42 US gal/min manual bilge pump, one for each hull
Outlets are above water level and discharge overboard
Holding tanks for 3 x toilets
4 x hi capacity electric bilge pumps with automatic sensors for main bilge area
Washer drier in forward area of stbd heads. Laundry area includes removable shelves at back of washer dryer.
Water maker – Newport 400 NP-MK II-400S fully automatic with backwash/fresh water flush – 62Ltr + Connect Controller
Dishwasher – 45cm D/Washer – 10 place setting
Connection for hose to hose down chain in windlass locker
Fresh water filter for ice maker fitted in port engine room
Drinking water tap in galley hooked to ice maker filter system
Pull out shower with cold and hot water fitted at top of port transom steps
Fresh water shore connection fitted on port transom step area for connecting ships fresh water system to shore water hose
ELECTRICAL
On board DC electrics are 12/24V with two wire-insulated return
Wires are sized to minimize voltage drop
All light current wiring is silicon tinned wiring which is flame proof and does not give off toxic vapours
All heavy current conductors carrying an excess of 50 Amps are 50-70mm²
All light current conductors programmed and powered by C-Zone digital switching
Batteries – the ship’s auxiliary load consists of 20 kWh Mastervolt Li-ion batteries (800Ah at 24V)
A separate battery is supplied for engine starting
For good heavy current termination, copper tinned bus bars are used
A comprehensive DC main digital switching switch panel is located in the Nav Station
Mastervolt Easyview for battery status monitoring
AC circuit – including shore power inlet sockets, shore power cord, electrical panel with necessary breakers and earth leakage
Euro American 2 pin and universal style AC outlets with USB facility fitted at various locations on the vessel
2 x large under water Zinc anodes fitted to hull. DC and AC are common grounded. Zinc saver
Electric BBQ built into wetbar with Corian lid in cockpit
Cotton pascale, quilted double bed fitted mattress protectors
Canopy shade for foredeck and 2x large bean bacg (or foldable deck seats)
Four button remote for C-Zone system
ELECTRONICS UPGRADE
Additional 2nd Garmin GMI 20 repeater screen at inside nav station
Garmin AIS 800 transceiver (receiver is standard)
BATTERY UPGRADE no charge for these, as it’s already included in the standard specifications!
Upgrade to 20kWh Li-ion batteries
High output Mastervolt alternators with extrenal smart controllers on both engines (110Ah on 24V)
ENTERTAINMENT PACKAGE
1x TV in master cabin
2x Bose speakers to be fitted on spreaders
4 x Underwater LED lights
Apple TV
COMMUNICATIONS PACKAGE
Cellular Modem / WiFi Router Antenna System
Iridium Go with external aerial on spreader
Starlink High Performance Dish with TP Link High Perfromnace router
FLEXITEEK DECKING
Flexiteek on cockpit floor, steps to helm station and helm station floor and transom and transom steps
SAILS
Code 65 – 130m² on bowsprit and Facnor electric furler. Sheets led back to electric winches at helm station
Furling Gennaker with top down swivel. Sheet led back to electric winches at helm station
Upgraded running rigging
PROPELLER UPGRADE
Gori 3 blade folding propellers with rope cutters
SCUBA PACKAGE
Coltri-6/EM INOX electric dive compressor – Condensate drain with automatic timer
4 x 12L Dumpie Dive Tanks plus holder and filling hose
WATERMAKER UPGRADE
Water maker – Newport NP-MK IIZ-1000 fully automatic with backwash fresh water flush – 150Ltr/hr (in lieu of Newport 400)
SAFETY EQUIPMENT
2 EPIRBS
Lifesling
Fully equipped ditch bag
High output emergency bilge pump
MOB inflatable IOR Dan Bouy
Strobe lights
ANCHOR UPGRADE
Stainless steel ULTRA anchor with flip swivel (in lieu of DELTA)
SPARES AND TOOLS
Tool cabinet instead of standard drawers or additional freezer
Professional tool kit in foam inserts in tool cabinet
Comprehensive spares kit
DINGHY & OUTBOARD ENGINE
AB 12′ aluminum hull tender with Yamaha 25HP EFI outboard engine (fitted with starter battery, fuel filter, electric bilge pump, custom lifting bridles for dinghy davits)
WORLDWIDE DELIVERY
Delivery to USA/Caribbean/Mediterranean aboard cargo ship
CUSTOMIZATIONS
COLORS
Furniture – Oak Lime Textured Mat
Floor – Sash Oak (grey)
Upholstery – Sterling
Countertops – Light Grey
Accent Panels – Platinum
Headliner – Off-White
Baseboards, trims and bathroom doors – Brown greyish formica (don’t know the name)
Outside Upholstery – Titanium
Flexiteek – Weathered with white caulking
MASTER CABIN
Leather pouch (9in wide x 7in tall; bottom of pouch positioned 22in from ceiling of cabin, it lines up with line dividing two accent panels in the head board of the beds) attached to headliner on outboard side of master cabin – made to store phone, iPad, earphones, small charger…
Bookshelf above vanity table in master cabin
MASTER BATHROOM
Intstall double tower rack high up so cabinet can open on same wall as toilet paper holder (consider lowering toilet paper holder slightly so there is more space for towels)
Install fidle made of alum or something else to create storage on top white structural beam/shelf on outboard side above window. This could then be used for keeping an air freshener and other bathroom decoration or supplies
Bench seat outside of shower in Light Grey (same material and color as countertops)
PORT CABINS
Port Bathrooms – Solid light frosting (similar to X5) all around for complete privacy when someone is using the head/toilet. Use frosting with a design around the shower area for aesthetic purposes, not for privacy, i.e. the purpose is to blend in with the frosting around the toilet area vs. create privacy in the shower.
Port Bathrooms (for both bathrooms) – Install double towel rack (not a second rack under existing one, but a rack with 2 rods, 1 in front of the other, so both towels can hang without being on top of each other).
Port aft cabin only – Leather pouch (9in wide x 7in tall; bottom of pouch 22in from ceiling of cabin, it lines up with line dividing two accent panels in the head board of the beds) attached to headliner on outboard side of master cabin – made to store phone, iPad, earphones, small charger…
SALOON
Main table that can be used as coffee table, daybed and dining table.
ADDITIONAL ITEMS
Camera on top of the mast
Dometic Electric Cooler CFX3 75L (not 95L – too big). Includes cover and cushion on top
Change middle stainless steel wire to Dynema life lines all around
Install multiple attachment points in the ceiling of cockpit (primarily targa area) to dry wetsuits, towels, kites, impact vests… We will have lots of wet and heavy gear that will need to be hung often. Points to be installed in a way so that a line can be tied and wetsuits can be drying without water dripping on top of cushions but in the passage area.
Fishing rod holders
Yachtrouter system (wifi/cellular booster)
Extra backrest at helm
Parasailor pre-install (only the fixed hardware)
Ethernet cables from Yacht router to both TVs
Dinghy and full setup with 1st aid kit and mini fire extinguisher
Fully equipped galley with breadmaker, toaster, blender, instant pot, vacuum sealer, soda stream, pots and pans, plates, bowls, cups, cutlery, etc.
The hull is of sandwich composite construction using Quadriaxial stitched fabrics, Divinicell composite PVC foam and Epoxy Vinyl Ester resin. This gives a stiff laminate with excellent strength and lightweight properties
The engine beds are of GRP and bonded to the hull
Sea-cocks under water line are Marelon and located in accessible positions
Hose connections to inboard side of stainless steel sea-cocks have two stainless steel hose clamps
For osmosis protection an ISO / NPG Gelcoat is used
Standard Gelcoat colour is white
Rudders are solid GRP boasting a 55mm solid stainless steel shaft with hydraulic steering system
Structural bulkheads are a combination of 80 density foam and Lloyds Marine ply wood hand laminated to hull and deck
Bulkhead thickness is 24mm for ply wood and 28mm for foam core
Dedicated collision bulkheads at bow, at transom (to protect the engines) and at the bottom section of each keel
Combination shade-mosquito screens for opening deck hatches – Goiot
Several large non opening hull windows
Reading lights with built in USB outlets, overhead recessed ceiling lights, all LED
Switch for cabin lights
Fire extinguisher
Laminated flooring throughout
110v outlets with 1 x USB outlet close to bed
1 x Cabin fan (each cabin)
Pleated blinds for hull cabin windows
1 x 7000 BTU Inverter BLDC self-contained air con unit (per cabin) with one upper level outlet for each cabin. Control panel is fitted at bunk for easy access
Access to the engine rooms is via 2 specially moulded large hatches in the aft cockpit floor
These hatches are lockable and feature gas struts
Two x Yanmar Marine diesel engines Model 4JH80-TE (80HP at 3200RPM) with SD60-T sail drive units, both freshwater cooled, Stbd side coupled via the heat exchanger to a 60L Calorifier for hot water
Each engine is mounted on a specially moulded bed
Each engine is fitted with an additional 24V/110A High Output Mastervolt Alternator for charging the Li-Ion House Batteries trough a Charge Regulator
Complete passive ventilation system
Wet exhaust system including water trap, gooseneck and anti-siphon
Yanmar fixed 3 blade propeller
Fuel capacity is 790L, 2 x tanks, 1 for each engine with shut off valve
Fuel transfer pump to transfer fuel from one tank to another
Fuel filter/water separator in each engine room
Fuel tanks vented to deck via a breather with flame arrestor
Both engines start from a dedicated engine starting battery mounted in a each engine room
Overhead LED lights in each engine compartment
1 x 120amp standard alternators fitted by engine manufacturer on each engine for charging dedicated engine start battery
Engine room soundproofed
Fireboy automatic fire extinguishing system in each engine room
2 x Large capacity bilge pump with hi-water alarm in each engine room
Emergency tiller arm supplied on dedicated brackets in stbd engine room
