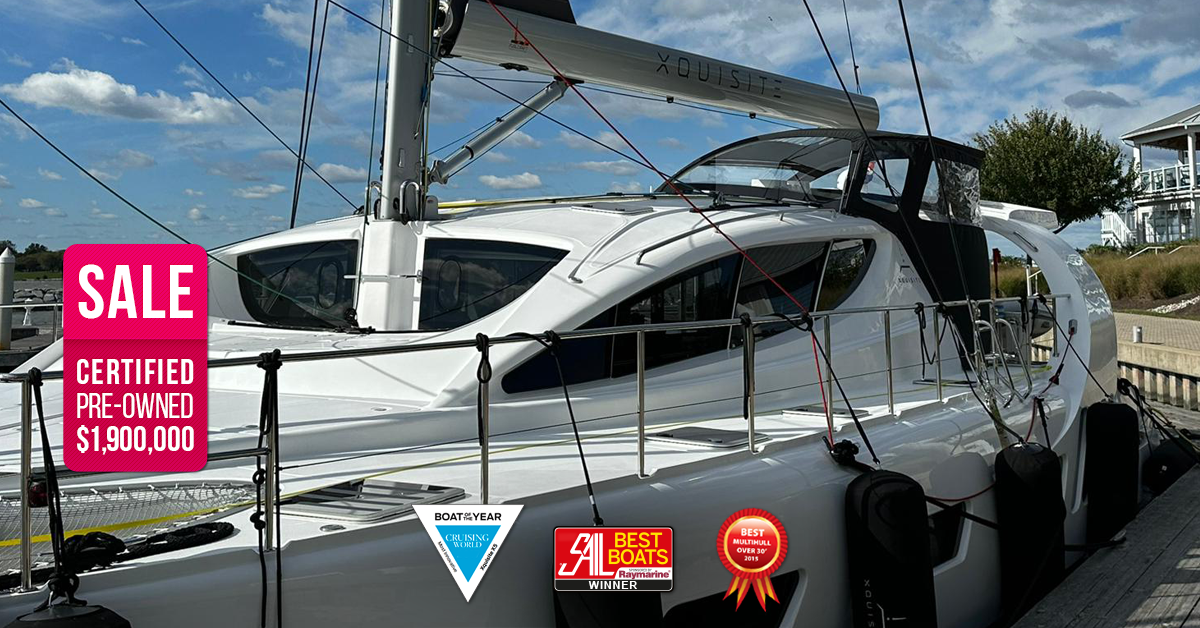

Completely checked and comes with our 90 days extended warranty!
She’s offered in our
Certified Pre-Owned Program
- Model: X5 Plus
- Year Built: 2023
- Location: Freeport, Bahamas
- Price: US$ 1,900,000
A whole week of onboard training for the new lucky owner!
X5 PLUS – ROUGE ONE – Specifications and Extras
LAYOUT
OWNER VERSION – 3x cabins and 3x en-suite heads/bathrooms
GENERAL SPECIFICATIONS
| Length overall | 16.17m / 53′ |
| Length hull | 15.25m / 50′ |
| Beam | 8m / 26.2′ |
| Draft | 1.35m / 4.4′ |
| Bridge deck clearance Light Craft | 1000mm / 3.3′ |
| Mast height above waterline | 24m / 78.7′ |
| Sail Area – Mainsail | 105 m² / 1130 sqf |
| Sail Area – Genoa | 67 m² / 721 sqf |
| Sail Area – Jib | 39 m² / 420 sqf |
| Sail Area – Code 65 | 130 m² / 1400 sqf |
| Engines | 2 x 80 HP |
| Fresh water (4×215 L tanks) | 860 L / 227 gal |
| Diesel (2×395 L tanks) | 790 L / 208 gal |
| CE Certified | Category A |
| Light craft displacement | 16000 kg / 35274 lbs |
UNIQUE EXTRAS
IN-BOOM FURLING MAIN SAIL | |
| Carbon fibre boom with furling main sail | |
COMFORT AND ENTERTAINMENT | |
| Fendertex – inflatable fenders with custom logo (8 units) | |
| Canopy shade for foredeck and 2x foldable deck seats | |
| Four button remote for C-Zone system | |
| Colour television – 3 x 32" TV’s in cabins | |
| 1x 32" TV in master cabin | |
| 4 x Underwater LED lights | |
| Garmin camera installed on mast | |
COMMUNICATIONS | |
| Cellular Modem / WiFi Router Antenna System | |
| Iridium Go with external aerial on spreader | |
SATELLITE TV SYSTEM | |
| KVH TV5 satellite TV system | |
SATELLITE BROADBAND INTERNET SYSTEM | |
| KVH TracPhone V3ip antenna system | |
FLEXITEEK DECKING | |
| Flexiteek on cockpit floor, steps to helm station and helm station floor and transom and transom steps | |
SCUBA PACKAGE | |
| Coltri-6/EM INOX electric dive compressor – Condensate drain with automatic timer | |
| 4 x 12L Dumpie Dive Tanks in moulded fiber glass tank storage and filling hose | |
ADDITIONAL FREEZER – in lieu of standard drawers or tool cabinet | |
| 2nd Vitrifrigo DW 100 BTX Freezer or fridge | |
SPARES AND TOOLS | |
| Tool cabinet instead of standard drawers or additional freezer | |
| Professional tool kit in foam inserts in tool cabinet | |
| Comprehensive spares kit | |
DINGHY & OUTBOARD ENGINE | |
| AB 12′ aluminum hull tender with Yamaha 25HP EFI outboard engine (fitted with starter battery, fuel filter, electric bilge pump, custom lifting bridles for dinghy davits) | |
WORLDWIDE DELIVERY | |
| Delivery to USA/Caribbean/Mediterranean aboard cargo ship | |
CUSTOMIZATION | |
| Yachtrouter wifi/cellular antenna system | |
| Coppercoat instead of standard antifouling | |
| Boat’s name and logo on transom in vinyl lettering | |
| Wine storage under hull bottom steps on both sides (16 bottles per side) | |
| Dummy safe (electrical box under nav station) | |
| Convertible salon table with electric pedestals | |
| Convertible cockpit table with electric pedestals | |
| Foredeck lounging with custom cushions | |
| Additional 12″ garmin display at inside nav station | |
| Master cabin desk to be converted into drawers with book shelf above instead of dresser table | |
| Fiddles on outboard shelves throughout the boat | |
| 2023 upgrade package (Touch screen chain counter at helm, fuel coolers for Yanmar engines, Garmin camera at furling boom, 3D Xquisite logos) | |
| KVH Tracnet 30 3in1 wifi/cell/satellite antenna system | |
COLORS | |
| Furniture – Oak Limed Textured Mat | |
| Floor – Amtico – Inked Cedar | |
| Interior Upholstery – Sunbrella – Natte – Taupe Chalk | |
| Exterior uphostery – Sunbrealla – Graphite (same as Satori) | |
| Countertops – Schemar – Vanilla Bean | |
| Accent Panels – Hitch – Lead | |
| Headliner – Silvertex – Ice | |
| Flexiteek – Grey and white / Weathered and white |
HULL AND APPENDAGES
| The hull is of sandwich composite construction using Quadriaxial stitched fabrics, Divinicell composite PVC foam and Epoxy Vinyl Ester resin. This gives a stiff laminate with excellent strength and lightweight properties | |
| The engine beds are of GRP and bonded to the hull | |
| Sea-cocks under water line are Marelon and located in accessible positions | |
| Hose connections to inboard side of stainless steel sea-cocks have two stainless steel hose clamps | |
| For osmosis protection an ISO / NPG Gelcoat is used | |
| Standard Gelcoat colour is white | |
| Rudders are solid GRP boasting a 55mm solid stainless steel shaft with hydraulic steering system | |
| Structural bulkheads are a combination of 80 density foam and Lloyds Marine ply wood hand laminated to hull and deck | |
| Bulkhead thickness is 24mm for ply wood and 28mm for foam core | |
| Dedicated collision bulkheads at bow, at transom (to protect the engines) and at the bottom section of each keel | |
| Underwater epoxy – Antifouling application |
DECK AND FITTINGS
| The deck is of sandwich composite construction using Quadriaxial-stitched fabrics with 80 density foam of appropriate thickness as the core | |
| High density material under all deck fittings with stainless steel backing plates | |
| Deck surface has a moulded diamond patterned non-slip finish | |
| Standard Gelcoat colour is white | |
| Electric under deck horizontal anchor windlass 24V/1500W with wired remote in foredeck anchor locker | |
| Large anchor cleat mounted in anchor locker | |
| Stainless steel anchor swivel with twin nylon anchor roller inside anchor locker | |
| Anchor: Stainless steel ULTRA 45kg anchor with flip swivel, 75m 10mm chain, 100m 16mm warp | |
| Stainless steel shroud chain plates are bolted to hull in area of structural bulkheads | |
| Two recessed water tank fillers fitted on coachroof so as to act as rain water collection points | |
| Two Diesel fillers fitted on aft top transom step | |
| Breathers exit above deck level | |
| 2 x 110v Electricity dock inlets on transom with shore power leads | |
| 1 x 220v Electricity dock inlet on transom with shore power lead | |
| Electrical stainless steel gooseneck at mast | |
| Fore deck hatches for storage with recessed and lockable stainless steel catches with stainless steel gas struts | |
| Large access opening deck hatch on port foredeck peak gives access to white flow coated locker with ladder going down into locker | |
| Cabin windows straight laminated glass panels with ceramic borders for UV protection | |
| Steaming lights on crossbeam A-frame, mast and aft targa | |
| Tow rail is incorporated into the deck with dedicated mounting areas for stanchions | |
| Two pull-pits with white moulded GRP seats | |
| Side railings with mid gate in solid stainless steel tubing with middle stainless steel wire. Railing height 720mm | |
| 8 x Large mooring cleats for marina berthing | |
| 2 x Transom cleats on inner hull | |
| Electric Roller furling self tacking Jib with curved traveller situated in front of mast step with jib sheet led aft to winch in cockpit | |
| Complete main-sheeting system with blocks led aft to winch in cockpit | |
| All lines from mast and sailing gear led aft to two main electric winches | |
| Sliding aluminium entrance door with 6.5mm laminated clear glass with lock | |
| Recessed sliding door grating in cockpit floor | |
| Fire extinguisher in cockpit | |
| Wet and dry lockers in cockpit for storage | |
| Large teak cockpit table incorporating world map in black polyurethane on fixed aluminum legs | |
| Small teak cockpit table on adjustable single aluminum leg enabling to be converted to a bed | |
| Wet bar in cockpit incorporating solid surfacing counter top with under mounted electric grill, sink and mixer tap | |
| Fridge for cockpit – Vitrifrigo C 60iX 60Ltr | |
| Drinks cupboard with shelves and bottle storage in wet bar with acrylic door and LED lights | |
| Overhead recessed LED cockpit lights | |
| Blue and red exterior courtesy floor lighting | |
| X5 LED backlit corporate logo on bulkhead in cockpit | |
| All lockers are self-draining and flow coated white | |
| One anodized aluminium structural cross beam with A-frame through bolted on bow | |
| Two large open net trampolines lashed to deck | |
| Stainless steel swimming ladder on Port side with stainless steel handrail up each stepped transom | |
| Integral complete overhead targa bar with soft furnishing inserts | |
| Build into the targa on port side a overhead shower with hot and cold water | |
| Pull out shower with cold and hot water fitted at top of port transom steps | |
| Fresh water shore connection fitted on port transom step area for connecting ships fresh water system to shore water hose | |
| Bimini sides and back with mesh windows that can also be closed for privacy, fitted in a recess in overhead moulding for flush look | |
| Recliner style sunbed on aft deck incorporating stowage underneath – stainless steel railing/cable to prevent person falling overboard | |
| 1 x 12 volt outlet at cockpit table | |
| 1 x 110 volt splash proof outlet at cockpit table | |
| 14 x large, non-opening recessed windows in tinted glass in hull outer sides | |
| Cockpit and helm cushions including backrests | |
| Davits on aft sunbed with remote controlled electric winches fitted in sunbed locker. Ropes and blocks included | |
| Handrails fitted in front top part of targa for extra security when moving up and down deck levels | |
| Small adjustable LED spotlights fitted on both aft sides of targa to supply light on aft steps and BBQ |
HELM STATION
| All lines led back to helm for easy single handed sailing. | |
| Winches are 2 speed electric self tailing, size 60 | |
| 14 x rope clutches at helm station for clutching sheets, halyards and ropes | |
| Extra large double seat helm chair with full length padded backrest in cockpit | |
| Large power dampened compass ahead of helm station in cockpit | |
| 1 x Garmin GMI20 multi display instrument at helm | |
| 1 x Garmin 16″ GPSMAP chart plotter with GPS and remote keypad | |
| 1 x Garmin GMR Fantom 24 Dome Radar with MotionScope | |
| 1 x Garmin autopilot – GHP reactor 12 core pack with GHC20 display | |
| 1 x Garmin wired command mike | |
| Glass windscreen and extended sliding cloth bimini above helm chair | |
| Separate moulded instrument module with angled mounting surfaces for instruments and incorporated wireless phone charge station | |
| Storage locker with lid for ropes below steering wheel | |
| C-Zone switch panel to control various systems from helm | |
| 1 x 12V outlet and 1 x USB outlet | |
| Second control with chain counter for windlass operation at cockpit | |
| Engine instrumentation, electronic throttle and gear controls | |
| 800mm, Black composite three spoke race look helm wheel | |
| Handrail fitted below stbd winch for easy and safe access to helm station | |
| Dedicated storage area for small items like phones, binoculars etc. | |
| Red/white light fitted at helm to provide light at night |
RIGGING AND SAILS
| Spars by Sparcraft S.A. | |
| Spars built of extruded aluminium and anodised silver-grey | |
| Single spreader fractional rig with internal wiring shielded in PVC tube secured to mast | |
| Mast grounded through shrouds/chain plates to copper grounding plates in keels | |
| Batten car system for mainsail | |
| Boom, standing and running rigging | |
| Shrouds have chafe guards | |
| Flag halyards from bottom spreader | |
| Furling system for headsails | |
| Navigation, deck and anchor lights | |
| VHF aerial on top of mast. | |
| 2 x Bose speakers to be fitted on spreaders | |
| Sails by North Sails – Full batten mainsail with three reefs totalling 105m² | |
| Stack pack with corporate logo | |
| 2 x mainsail lazy-Jacks | |
| 1 x mainsail halyard – 12mm Spectra | |
| 1 x Genoa furler halyard – 8mm Spectra with Bow Shackle and sliding adjuster on mast | |
| 1 x Jib furler halyard – 8mm Spectra with Bow Shackle and sliding adjuster on mast | |
| 1 x Spinnaker / Code D halyard -12mm Spectra | |
| 1 x Self tacking Jib sheet – 12mm Spectra | |
| 1 x Main boom topping lift – 12mm Braid | |
| 1 x Mainsheet sheet – 12mm Spectra | |
| 1 x Reefline no1 – 12mm Spectra | |
| 1 x Reefline no2 – 12mm Spectra | |
| 1 x Reefline no3 – 12mm Spectra | |
| 1 x Fixed outhaul – 12mm Spectra | |
| 2 x Mainsail traveller car control lines – 10mm braid | |
| 2 x Genoa sheets – 12mm Super Braid | |
| Electric Furling 39m² Self taking Jib with UV including deck hardware | |
| Electric Furling 67m² Genoa with UV including deck hardware | |
| Code D – 130m² on bowsprit and Facnor electric furler |
INTERIOR FINISHES
| All joinery work and finishing in the living areas is done in accordance with the best yacht practice, using first-grade marine materials | |
| All cupboard locker doors and drawers fitted with stylish pelican hook type catches in satin chrome finish | |
| All cupboard locker doors and drawers fitted with soft close hinges and drawer slides | |
| All Veneer and solid wood are of (wood to be confirmed) with a matt polyurethane acrylic lacquer for a professional and durable finish | |
| Interior of all cupboards where possible have lined or painted surface | |
| Ceilings and topside linings in (colour to be confirmed) soft touch leather furnishings | |
| (Colour to be confirmed) laminated hi wear flooring throughout | |
| Cabin mattresses is 120mm – multilayer foam with several densities covered with fabric | |
| Basin units, basins and galley tops made from Corian solid surfacing (colour to be confirmed) |
SALOON
| Large saloon area with 360 degree panoramic view | |
| 75mm raised headroom | |
| Incorporated opening portholes in forward facing windows for ventilation | |
| U-shaped settee with cloth upholstery (colour to be confirmed) | |
| Large, convertible saloon table with internal 110V outlet for printer | |
| Combination shade-mosquito screens for opening deck hatches – Goiot | |
| Pleated blinds for saloon cabin windows | |
| Storage compartments under saloon seating | |
| Overhead stylish LED recessed ceiling lights | |
| Light switches to operate and dim light output | |
| 3 x large opening deck hatches | |
| Locking Sliding aluminium door with open/closed positions | |
| Escape hatch in saloon floor with sand blasted glass ‘world map’ logo | |
| Sliding window to cockpit | |
| Laminated flooring throughout | |
| 110V outlets | |
| 1 x Cabin fan | |
| 2 x 10000 BTU Inverter BLDC self-contained air con units with outlets at nav and settee |
ENTERTAINMENT AREA
| Typical area headroom is an average of 2,05m | |
| Large U-shaped cupboard unit with entertainment equipment and storage drawers | |
| 1 x 32″ LED smart television on TV lift system that can rotate from 0 to 90 degrees | |
| Large vertical cupboard housing refrigeration/freezer unit with small storage cupboard on the side | |
| 24V compressor driven door fridge-capacity 157L combined with a 2 drawer deep freezer – capacity 144L with incorporated ice maker |
GALLEY AND PANTRY
| Typical area headroom is an average of 2,05m | |
| Galley in main saloon to Port with direct access to cockpit | |
| Large L-shaped counter top in solid surfacing with double under counter sink with chromed professional mixer tap | |
| Drinking water tap hooked to ice maker filter system | |
| Large double drawers under sink unit with heavy duty drawer slides | |
| Integrated dish draining area | |
| Large cupboard doors with storage | |
| One set of drawers | |
| Drawer for spice and condiments | |
| Rubbish bin in dedicated drawer for easy access | |
| 2 x Double domino style induction hobs with pot holders | |
| Extraction system above hob | |
| Speed oven with grill (convection microwave) | |
| Large Island unit with solid surfacing | |
| Large single cupboard | |
| Recessed overhead LED lighting | |
| Light switch and dimmer for overhead lighting | |
| Laminated flooring | |
| Numerous 110v outlets | |
| Fire extinguisher | |
| Fire blanket |
NAVIGATION STATION
| 75mm raised headroom | |
| Very good 360 degree visibility due to large cabin windows | |
| Overhead recessed LED lighting | |
| Office chair at navigation station | |
| iPad with LaunchPort docking station and sleeve | |
| 1 x 110v outlet fitted on countertop | |
| 1 x Cabin fan | |
| Chart light | |
| L-shaped nav desk with large countertop with incorporated wireless phone charging | |
| Numerous cupboards with doors and drawers | |
| Fire extinguisher |
MOUNTED IN A PRACTICAL AND NEAT ARRANGEMENT INTO A STYLISH AND MODERN DASHBOARD ARE THE BELOW MENTIONED EQUIPMENT
| Custom designed switchboard with digital switching switches | |
| Mastervolt Easy View digital monitoring screen for selected onboard electrical equipment and charging systems | |
| 1 x 12V outlet | |
| Garmin VHF radio | |
| Additional 2nd Garmin GMI 20 repeater screen at inside nav station | |
| Garmin AIS 800 transceiver (receiver is standard) | |
| Fusion Apollo 770 multizone music system with 4x speakers and subwoofer in salon and 4x speakers in cockpit | |
| 1 x 110V outlet | |
| Spectra water maker control panel | |
| Fischer Panda generator control panel | |
| Port and stbd saloon air conditioner control panels | |
| Le Grand USB(x3) outlets |
2 X PORT HULL GUEST CABINS
| Typical area headroom is an average of 2m | |
| Access to each of the cabins is from the saloon by a companionway. Privacy is provided by a cabin door leading to each cabin | |
| Queen size bed with mattress and mattress protectors and soft furnished headboard | |
| Island style bed with steps up each side giving separate access | |
| Recessed bookshelf with cabinet and wardrobe | |
| Extra large storage under bed with drawers | |
| Dressing table with drawers underneath | |
| Larger overhead opening deck hatches facing forward for better natural ventilation | |
| Combination shade-mosquito screens for opening deck hatches – Goiot | |
| Several large non opening hull windows | |
| Reading lights with built in USB outlets, overhead recessed ceiling lights, all LED | |
| Switch for cabin lights | |
| Fire extinguisher | |
| Laminated flooring throughout | |
| 110v outlets with 1 x USB outlet close to bed | |
| 1 x Cabin fan (each cabin) | |
| Pleated blinds for hull cabin windows | |
| 1 x 7000 BTU Inverter BLDC self-contained air con unit (per cabin) with one upper level outlet for each cabin. Control panel is fitted at bunk for easy access |
2 X PORT HULL GUEST EN-SUITE BATHROOMS
| Bathroom enclosed with clear acrylic with sandblast vinyl design and dual purpose door | |
| Electric toilet | |
| Solid surfacing counter top with integrated washbasin | |
| Pressurized hot and cold water professional mixer tap | |
| Cupboard and storage underneath | |
| Overhead mirror storage unit for bathroom accessories. Now with increased headroom over basin area | |
| Opening deck hatch for ventilation | |
| Combination shade-mosquito screens for opening deck hatches – Goiot | |
| Area 1 non opening port light | |
| Towel rail, soap holder and toilet paper holder |
1 X ENTIRE STARBOARD HULL OWNERS CABIN WITH EN-SUITE BATHROOM
| Typical area headroom is an average of 2m | |
| Access to the owners hull is from the saloon by a companionway and privacy is provided by a large wooden sliding door | |
| Large solid surfacing counter top with integral “his” and “hers” double basins | |
| Professional hot and cold mixer taps | |
| Cupboards underneath for storage | |
| Large mirror units above with storage for bathroom accessories | |
| Electric toilet | |
| 110V waterproof outlet | |
| Washer drier mounted in dedicated cupboard with removable shelves above | |
| A fully enclosed large shower moulding with Acrylic opening door and seat | |
| Opening deck hatch for ventilation | |
| Combination shade-mosquito screens for opening deck hatches – Goiot | |
| Large non opening hull window | |
| Towel rail, soap holder and toilet paper holder | |
| Overhead recessed LED lighting | |
| Extra large dressing table with built in drawers and Ottoman style seat | |
| 110V outlets with 1 x USB outlet close to bed | |
| Extra large wardrobes with hanging locker and shelves | |
| Electronic safe installed in main wardrobe | |
| Large Dresser unit with cupboards for storage | |
| Double settee/lounger with storage underneath | |
| Queen size bed with mattress and mattress protectors and soft furnished headboard | |
| Island style bed with steps up each side giving separate access | |
| 4 x large non opening vertical windows on outboard hull next to bed giving lots of light and vision | |
| Pleated blinds for hull cabin windows | |
| Extra large storage under bed with drawers | |
| Recessed bookshelf with shelf and cupboards on inboard side next to bed | |
| Larger overhead opening forward facing deck hatch for better natural ventilation | |
| Light switch and for cabin lights | |
| 1 x Cabin fan | |
| 1 x 10 000 BTU Inverter BLDC self-contained air con unit with two upper level outlets. Control panel is fitted at bunk for easy access during night | |
| 2 x Fire extinguishers |
ENGINES AND ENGINE ROOM
| Access to the engine rooms is via 2 specially moulded large hatches in the aft cockpit floor | |
| These hatches are lockable and feature gas struts | |
| Two x Yanmar Marine diesel engines Model 4JH80-TE (80HP at 3200RPM) with SD60-T sail drive units, both freshwater cooled, Stbd side coupled via the heat exchanger to a 60L Calorifier for hot water | |
| Each engine is mounted on a specially moulded bed | |
| Each engine is fitted with an additional 24V/110A High Output Mastervolt Alternator for charging the Li-Ion House Batteries trough a Charge Regulator | |
| Complete passive ventilation system | |
| Wet exhaust system including water trap, gooseneck and anti-siphon | |
| Gori 3 blade folding propellers with rope cutters | |
| Fuel capacity is 790L, 2 x tanks, 1 for each engine with shut off valve | |
| Fuel transfer pump to transfer fuel from one tank to another | |
| Fuel filter/water separator in each engine room | |
| Fuel tanks vented to deck via a breather with flame arrestor | |
| Both engines start from a dedicated engine starting battery mounted in a each engine room | |
| Overhead LED lights in each engine compartment | |
| 1 x 120amp standard alternators fitted by engine manufacturer on each engine for charging dedicated engine start battery | |
| Engine room soundproofed | |
| Fireboy automatic fire extinguishing system in each engine room | |
| 2 x Large capacity bilge pump with hi-water alarm in each engine room | |
| Emergency tiller arm supplied on dedicated brackets in stbd engine room | |
| Toolbox with assorted tools |
PLUMBING
| All freshwater hoses of re-enforced PVC tubing with “speed fit” connections | |
| All hot water piping enclosed in a neoprene covering to maintain temperature over long periods of time | |
| 860 L rigid polyethylene water tanks in front lockers for easy removal and cleaning | |
| Tank vents terminate on deck | |
| One water heater of 60lt with 110V resistor element. Complete with strainers, check valves and accumulator tank | |
| All grey water from showers is discharged overboard by a automatic drain pump | |
| Two large capacity water pressure pumps mounted in front lockers near water tanks with accumulator tank | |
| Each pump draws water from the appropriate fresh water tank and service the entire boat | |
| 100 Ltr/26.42 US gal/min manual bilge pump, one for each hull | |
| Outlets are above water level and discharge overboard | |
| Holding tanks for 3 x toilets | |
| 4 x hi capacity electric bilge pumps with automatic sensors for main bilge area | |
| Washer drier in forward area of stbd heads. Laundry area includes removable shelves at back of washer dryer. | |
| Water maker – Newport 1000C (24VDC system) fully automatic with backwash/fresh water flush – 155L/41gallon/hour + Connect Controller | |
| Dishwasher – 45cm D/Washer – 10 place setting | |
| Connection for hose to hose down chain in windlass locker | |
| Fresh water filter for ice maker fitted in port engine room | |
| Drinking water tap in galley hooked to ice maker filter system | |
| Pull out shower with cold and hot water fitted at top of port transom steps | |
| Fresh water shore connection fitted on port transom step area for connecting ships fresh water system to shore water hose |
ELECTRICAL
| On board DC electrics are 12/24V with two wire-insulated return | |
| Wires are sized to minimize voltage drop | |
| All light current wiring is silicon tinned wiring which is flame proof and does not give off toxic vapours | |
| All heavy current conductors carrying an excess of 50 Amps are 50-70mm² | |
| All light current conductors programmed and powered by C-Zone digital switching | |
| Batteries – the ship’s auxiliary load consists of 22 kWh Mastervolt Li-ion batteries (800Ah at 24V) | |
| A separate battery is supplied for engine starting | |
| For good heavy current termination, copper tinned bus bars are used | |
| A comprehensive DC main digital switching switch panel is located in the Nav Station | |
| Mastervolt Easyview for battery status monitoring | |
| AC circuit – including shore power inlet sockets, shore power cord, electrical panel with necessary breakers and earth leakage | |
| Euro American 2 pin and universal style AC outlets with USB facility fitted at various locations on the vessel | |
| 2 x large under water Zinc anodes fitted to hull. DC and AC are common grounded. Zinc saver | |
| Charger – 1x Mastervolt Chargmaster 24/110 battery charger | |
| Generator – Fischer Panda 15000i PMS – 12KW/15KVA variable speed fitted in port engine room with its own sound insulation cover | |
| Invertor Charger – 2x Mastervolt Mass Combi 24/3000-70 (120V) 6kW total | |
| Solar panels – 6 x 190 Watt on saloon coach roof with MPPT solar regulator | |
| Solar panels – 6 x 190 Watt on targa extension with MPPT solar regulator |
SAFETY EQUIPMENT
| 8 fenders / 10 x 10m 18mm tie up ropes | |
| Category 1 offshore safety equipment including 8 man life raft – Viking |
LAYOUT
LAYOUT
OWNER VERSION – 3x cabins and 3x en-suite heads/bathrooms
GENERAL SPECIFICATIONS
GENERAL SPECIFICATIONS
| Length overall | 16.17m / 53′ |
| Length hull | 15.25m / 50′ |
| Beam | 8m / 26.2′ |
| Draft | 1.35m / 4.4′ |
| Bridge deck clearance Light Craft | 1000mm / 3.3′ |
| Mast height above waterline | 24m / 78.7′ |
| Sail Area – Mainsail | 105 m² / 1130 sqf |
| Sail Area – Genoa | 67 m² / 721 sqf |
| Sail Area – Jib | 39 m² / 420 sqf |
| Sail Area – Code 65 | 130 m² / 1400 sqf |
| Engines | 2 x 80 HP |
| Fresh water (4×215 L tanks) | 860 L / 227 gal |
| Diesel (2×395 L tanks) | 790 L / 208 gal |
| CE Certified | Category A |
| Light craft displacement | 16000 kg / 35274 lbs |
UNIQUE EXTRAS
UNIQUE EXTRAS
IN-BOOM FURLING MAIN SAIL | |
| Carbon fibre boom with furling main sail | |
COMFORT AND ENTERTAINMENT | |
| Fendertex – inflatable fenders with custom logo (8 units) | |
| Canopy shade for foredeck and 2x foldable deck seats | |
| Four button remote for C-Zone system | |
| Colour television – 3 x 32" TV’s in cabins | |
| 1x 32" TV in master cabin | |
| 4 x Underwater LED lights | |
| Garmin camera installed on mast | |
COMMUNICATIONS | |
| Cellular Modem / WiFi Router Antenna System | |
| Iridium Go with external aerial on spreader | |
SATELLITE TV SYSTEM | |
| KVH TV5 satellite TV system | |
SATELLITE BROADBAND INTERNET SYSTEM | |
| KVH TracPhone V3ip antenna system | |
FLEXITEEK DECKING | |
| Flexiteek on cockpit floor, steps to helm station and helm station floor and transom and transom steps | |
SCUBA PACKAGE | |
| Coltri-6/EM INOX electric dive compressor – Condensate drain with automatic timer | |
| 4 x 12L Dumpie Dive Tanks in moulded fiber glass tank storage and filling hose | |
ADDITIONAL FREEZER – in lieu of standard drawers or tool cabinet | |
| 2nd Vitrifrigo DW 100 BTX Freezer or fridge | |
SPARES AND TOOLS | |
| Tool cabinet instead of standard drawers or additional freezer | |
| Professional tool kit in foam inserts in tool cabinet | |
| Comprehensive spares kit | |
DINGHY & OUTBOARD ENGINE | |
| AB 12′ aluminum hull tender with Yamaha 25HP EFI outboard engine (fitted with starter battery, fuel filter, electric bilge pump, custom lifting bridles for dinghy davits) | |
WORLDWIDE DELIVERY | |
| Delivery to USA/Caribbean/Mediterranean aboard cargo ship | |
CUSTOMIZATION | |
| Yachtrouter wifi/cellular antenna system | |
| Coppercoat instead of standard antifouling | |
| Boat’s name and logo on transom in vinyl lettering | |
| Wine storage under hull bottom steps on both sides (16 bottles per side) | |
| Dummy safe (electrical box under nav station) | |
| Convertible salon table with electric pedestals | |
| Convertible cockpit table with electric pedestals | |
| Foredeck lounging with custom cushions | |
| Additional 12″ garmin display at inside nav station | |
| Master cabin desk to be converted into drawers with book shelf above instead of dresser table | |
| Fiddles on outboard shelves throughout the boat | |
| 2023 upgrade package (Touch screen chain counter at helm, fuel coolers for Yanmar engines, Garmin camera at furling boom, 3D Xquisite logos) | |
| KVH Tracnet 30 3in1 wifi/cell/satellite antenna system | |
COLORS | |
| Furniture – Oak Limed Textured Mat | |
| Floor – Amtico – Inked Cedar | |
| Interior Upholstery – Sunbrella – Natte – Taupe Chalk | |
| Exterior uphostery – Sunbrealla – Graphite (same as Satori) | |
| Countertops – Schemar – Vanilla Bean | |
| Accent Panels – Hitch – Lead | |
| Headliner – Silvertex – Ice | |
| Flexiteek – Grey and white / Weathered and white |
HULL AND APPENDAGES
HULL AND APPENDAGES
| The hull is of sandwich composite construction using Quadriaxial stitched fabrics, Divinicell composite PVC foam and Epoxy Vinyl Ester resin. This gives a stiff laminate with excellent strength and lightweight properties | |
| The engine beds are of GRP and bonded to the hull | |
| Sea-cocks under water line are Marelon and located in accessible positions | |
| Hose connections to inboard side of stainless steel sea-cocks have two stainless steel hose clamps | |
| For osmosis protection an ISO / NPG Gelcoat is used | |
| Standard Gelcoat colour is white | |
| Rudders are solid GRP boasting a 55mm solid stainless steel shaft with hydraulic steering system | |
| Structural bulkheads are a combination of 80 density foam and Lloyds Marine ply wood hand laminated to hull and deck | |
| Bulkhead thickness is 24mm for ply wood and 28mm for foam core | |
| Dedicated collision bulkheads at bow, at transom (to protect the engines) and at the bottom section of each keel | |
| Underwater epoxy – Antifouling application |
DECK AND FITTINGS
DECK AND FITTINGS
| The deck is of sandwich composite construction using Quadriaxial-stitched fabrics with 80 density foam of appropriate thickness as the core | |
| High density material under all deck fittings with stainless steel backing plates | |
| Deck surface has a moulded diamond patterned non-slip finish | |
| Standard Gelcoat colour is white | |
| Electric under deck horizontal anchor windlass 24V/1500W with wired remote in foredeck anchor locker | |
| Large anchor cleat mounted in anchor locker | |
| Stainless steel anchor swivel with twin nylon anchor roller inside anchor locker | |
| Anchor: Stainless steel ULTRA 45kg anchor with flip swivel, 75m 10mm chain, 100m 16mm warp | |
| Stainless steel shroud chain plates are bolted to hull in area of structural bulkheads | |
| Two recessed water tank fillers fitted on coachroof so as to act as rain water collection points | |
| Two Diesel fillers fitted on aft top transom step | |
| Breathers exit above deck level | |
| 2 x 110v Electricity dock inlets on transom with shore power leads | |
| 1 x 220v Electricity dock inlet on transom with shore power lead | |
| Electrical stainless steel gooseneck at mast | |
| Fore deck hatches for storage with recessed and lockable stainless steel catches with stainless steel gas struts | |
| Large access opening deck hatch on port foredeck peak gives access to white flow coated locker with ladder going down into locker | |
| Cabin windows straight laminated glass panels with ceramic borders for UV protection | |
| Steaming lights on crossbeam A-frame, mast and aft targa | |
| Tow rail is incorporated into the deck with dedicated mounting areas for stanchions | |
| Two pull-pits with white moulded GRP seats | |
| Side railings with mid gate in solid stainless steel tubing with middle stainless steel wire. Railing height 720mm | |
| 8 x Large mooring cleats for marina berthing | |
| 2 x Transom cleats on inner hull | |
| Electric Roller furling self tacking Jib with curved traveller situated in front of mast step with jib sheet led aft to winch in cockpit | |
| Complete main-sheeting system with blocks led aft to winch in cockpit | |
| All lines from mast and sailing gear led aft to two main electric winches | |
| Sliding aluminium entrance door with 6.5mm laminated clear glass with lock | |
| Recessed sliding door grating in cockpit floor | |
| Fire extinguisher in cockpit | |
| Wet and dry lockers in cockpit for storage | |
| Large teak cockpit table incorporating world map in black polyurethane on fixed aluminum legs | |
| Small teak cockpit table on adjustable single aluminum leg enabling to be converted to a bed | |
| Wet bar in cockpit incorporating solid surfacing counter top with under mounted electric grill, sink and mixer tap | |
| Fridge for cockpit – Vitrifrigo C 60iX 60Ltr | |
| Drinks cupboard with shelves and bottle storage in wet bar with acrylic door and LED lights | |
| Overhead recessed LED cockpit lights | |
| Blue and red exterior courtesy floor lighting | |
| X5 LED backlit corporate logo on bulkhead in cockpit | |
| All lockers are self-draining and flow coated white | |
| One anodized aluminium structural cross beam with A-frame through bolted on bow | |
| Two large open net trampolines lashed to deck | |
| Stainless steel swimming ladder on Port side with stainless steel handrail up each stepped transom | |
| Integral complete overhead targa bar with soft furnishing inserts | |
| Build into the targa on port side a overhead shower with hot and cold water | |
| Pull out shower with cold and hot water fitted at top of port transom steps | |
| Fresh water shore connection fitted on port transom step area for connecting ships fresh water system to shore water hose | |
| Bimini sides and back with mesh windows that can also be closed for privacy, fitted in a recess in overhead moulding for flush look | |
| Recliner style sunbed on aft deck incorporating stowage underneath – stainless steel railing/cable to prevent person falling overboard | |
| 1 x 12 volt outlet at cockpit table | |
| 1 x 110 volt splash proof outlet at cockpit table | |
| 14 x large, non-opening recessed windows in tinted glass in hull outer sides | |
| Cockpit and helm cushions including backrests | |
| Davits on aft sunbed with remote controlled electric winches fitted in sunbed locker. Ropes and blocks included | |
| Handrails fitted in front top part of targa for extra security when moving up and down deck levels | |
| Small adjustable LED spotlights fitted on both aft sides of targa to supply light on aft steps and BBQ |
HELM STATION
HELM STATION
| All lines led back to helm for easy single handed sailing. | |
| Winches are 2 speed electric self tailing, size 60 | |
| 14 x rope clutches at helm station for clutching sheets, halyards and ropes | |
| Extra large double seat helm chair with full length padded backrest in cockpit | |
| Large power dampened compass ahead of helm station in cockpit | |
| 1 x Garmin GMI20 multi display instrument at helm | |
| 1 x Garmin 16″ GPSMAP chart plotter with GPS and remote keypad | |
| 1 x Garmin GMR Fantom 24 Dome Radar with MotionScope | |
| 1 x Garmin autopilot – GHP reactor 12 core pack with GHC20 display | |
| 1 x Garmin wired command mike | |
| Glass windscreen and extended sliding cloth bimini above helm chair | |
| Separate moulded instrument module with angled mounting surfaces for instruments and incorporated wireless phone charge station | |
| Storage locker with lid for ropes below steering wheel | |
| C-Zone switch panel to control various systems from helm | |
| 1 x 12V outlet and 1 x USB outlet | |
| Second control with chain counter for windlass operation at cockpit | |
| Engine instrumentation, electronic throttle and gear controls | |
| 800mm, Black composite three spoke race look helm wheel | |
| Handrail fitted below stbd winch for easy and safe access to helm station | |
| Dedicated storage area for small items like phones, binoculars etc. | |
| Red/white light fitted at helm to provide light at night |
RIGGING AND SAILS
RIGGING AND SAILS
| Spars by Sparcraft S.A. | |
| Spars built of extruded aluminium and anodised silver-grey | |
| Single spreader fractional rig with internal wiring shielded in PVC tube secured to mast | |
| Mast grounded through shrouds/chain plates to copper grounding plates in keels | |
| Batten car system for mainsail | |
| Boom, standing and running rigging | |
| Shrouds have chafe guards | |
| Flag halyards from bottom spreader | |
| Furling system for headsails | |
| Navigation, deck and anchor lights | |
| VHF aerial on top of mast. | |
| 2 x Bose speakers to be fitted on spreaders | |
| Sails by North Sails – Full batten mainsail with three reefs totalling 105m² | |
| Stack pack with corporate logo | |
| 2 x mainsail lazy-Jacks | |
| 1 x mainsail halyard – 12mm Spectra | |
| 1 x Genoa furler halyard – 8mm Spectra with Bow Shackle and sliding adjuster on mast | |
| 1 x Jib furler halyard – 8mm Spectra with Bow Shackle and sliding adjuster on mast | |
| 1 x Spinnaker / Code D halyard -12mm Spectra | |
| 1 x Self tacking Jib sheet – 12mm Spectra | |
| 1 x Main boom topping lift – 12mm Braid | |
| 1 x Mainsheet sheet – 12mm Spectra | |
| 1 x Reefline no1 – 12mm Spectra | |
| 1 x Reefline no2 – 12mm Spectra | |
| 1 x Reefline no3 – 12mm Spectra | |
| 1 x Fixed outhaul – 12mm Spectra | |
| 2 x Mainsail traveller car control lines – 10mm braid | |
| 2 x Genoa sheets – 12mm Super Braid | |
| Electric Furling 39m² Self taking Jib with UV including deck hardware | |
| Electric Furling 67m² Genoa with UV including deck hardware | |
| Code D – 130m² on bowsprit and Facnor electric furler |
INTERIOR FINISHES
INTERIOR FINISHES
| All joinery work and finishing in the living areas is done in accordance with the best yacht practice, using first-grade marine materials | |
| All cupboard locker doors and drawers fitted with stylish pelican hook type catches in satin chrome finish | |
| All cupboard locker doors and drawers fitted with soft close hinges and drawer slides | |
| All Veneer and solid wood are of (wood to be confirmed) with a matt polyurethane acrylic lacquer for a professional and durable finish | |
| Interior of all cupboards where possible have lined or painted surface | |
| Ceilings and topside linings in (colour to be confirmed) soft touch leather furnishings | |
| (Colour to be confirmed) laminated hi wear flooring throughout | |
| Cabin mattresses is 120mm – multilayer foam with several densities covered with fabric | |
| Basin units, basins and galley tops made from Corian solid surfacing (colour to be confirmed) |
SALOON
SALOON
| Large saloon area with 360 degree panoramic view | |
| 75mm raised headroom | |
| Incorporated opening portholes in forward facing windows for ventilation | |
| U-shaped settee with cloth upholstery (colour to be confirmed) | |
| Large, convertible saloon table with internal 110V outlet for printer | |
| Combination shade-mosquito screens for opening deck hatches – Goiot | |
| Pleated blinds for saloon cabin windows | |
| Storage compartments under saloon seating | |
| Overhead stylish LED recessed ceiling lights | |
| Light switches to operate and dim light output | |
| 3 x large opening deck hatches | |
| Locking Sliding aluminium door with open/closed positions | |
| Escape hatch in saloon floor with sand blasted glass ‘world map’ logo | |
| Sliding window to cockpit | |
| Laminated flooring throughout | |
| 110V outlets | |
| 1 x Cabin fan | |
| 2 x 10000 BTU Inverter BLDC self-contained air con units with outlets at nav and settee |
ENTERTAINMENT AREA
ENTERTAINMENT AREA
| Typical area headroom is an average of 2,05m | |
| Large U-shaped cupboard unit with entertainment equipment and storage drawers | |
| 1 x 32″ LED smart television on TV lift system that can rotate from 0 to 90 degrees | |
| Large vertical cupboard housing refrigeration/freezer unit with small storage cupboard on the side | |
| 24V compressor driven door fridge-capacity 157L combined with a 2 drawer deep freezer – capacity 144L with incorporated ice maker |
GALLEY AND PANTRY
GALLEY AND PANTRY
| Typical area headroom is an average of 2,05m | |
| Galley in main saloon to Port with direct access to cockpit | |
| Large L-shaped counter top in solid surfacing with double under counter sink with chromed professional mixer tap | |
| Drinking water tap hooked to ice maker filter system | |
| Large double drawers under sink unit with heavy duty drawer slides | |
| Integrated dish draining area | |
| Large cupboard doors with storage | |
| One set of drawers | |
| Drawer for spice and condiments | |
| Rubbish bin in dedicated drawer for easy access | |
| 2 x Double domino style induction hobs with pot holders | |
| Extraction system above hob | |
| Speed oven with grill (convection microwave) | |
| Large Island unit with solid surfacing | |
| Large single cupboard | |
| Recessed overhead LED lighting | |
| Light switch and dimmer for overhead lighting | |
| Laminated flooring | |
| Numerous 110v outlets | |
| Fire extinguisher | |
| Fire blanket |
NAVIGATION STATION
NAVIGATION STATION
| 75mm raised headroom | |
| Very good 360 degree visibility due to large cabin windows | |
| Overhead recessed LED lighting | |
| Office chair at navigation station | |
| iPad with LaunchPort docking station and sleeve | |
| 1 x 110v outlet fitted on countertop | |
| 1 x Cabin fan | |
| Chart light | |
| L-shaped nav desk with large countertop with incorporated wireless phone charging | |
| Numerous cupboards with doors and drawers | |
| Fire extinguisher |
MOUNTED IN A PRACTICAL AND NEAT ARRANGEMENT INTO A STYLISH AND MODERN DASHBOARD ARE THE BELOW MENTIONED EQUIPMENT
| Custom designed switchboard with digital switching switches | |
| Mastervolt Easy View digital monitoring screen for selected onboard electrical equipment and charging systems | |
| 1 x 12V outlet | |
| Garmin VHF radio | |
| Additional 2nd Garmin GMI 20 repeater screen at inside nav station | |
| Garmin AIS 800 transceiver (receiver is standard) | |
| Fusion Apollo 770 multizone music system with 4x speakers and subwoofer in salon and 4x speakers in cockpit | |
| 1 x 110V outlet | |
| Spectra water maker control panel | |
| Fischer Panda generator control panel | |
| Port and stbd saloon air conditioner control panels | |
| Le Grand USB(x3) outlets |
2 X PORT HULL GUEST CABINS
2 X PORT HULL GUEST CABINS
| Typical area headroom is an average of 2m | |
| Access to each of the cabins is from the saloon by a companionway. Privacy is provided by a cabin door leading to each cabin | |
| Queen size bed with mattress and mattress protectors and soft furnished headboard | |
| Island style bed with steps up each side giving separate access | |
| Recessed bookshelf with cabinet and wardrobe | |
| Extra large storage under bed with drawers | |
| Dressing table with drawers underneath | |
| Larger overhead opening deck hatches facing forward for better natural ventilation | |
| Combination shade-mosquito screens for opening deck hatches – Goiot | |
| Several large non opening hull windows | |
| Reading lights with built in USB outlets, overhead recessed ceiling lights, all LED | |
| Switch for cabin lights | |
| Fire extinguisher | |
| Laminated flooring throughout | |
| 110v outlets with 1 x USB outlet close to bed | |
| 1 x Cabin fan (each cabin) | |
| Pleated blinds for hull cabin windows | |
| 1 x 7000 BTU Inverter BLDC self-contained air con unit (per cabin) with one upper level outlet for each cabin. Control panel is fitted at bunk for easy access |
2 X PORT HULL GUEST EN-SUITE BATHROOMS
2 X PORT HULL GUEST EN-SUITE BATHROOMS
| Bathroom enclosed with clear acrylic with sandblast vinyl design and dual purpose door | |
| Electric toilet | |
| Solid surfacing counter top with integrated washbasin | |
| Pressurized hot and cold water professional mixer tap | |
| Cupboard and storage underneath | |
| Overhead mirror storage unit for bathroom accessories. Now with increased headroom over basin area | |
| Opening deck hatch for ventilation | |
| Combination shade-mosquito screens for opening deck hatches – Goiot | |
| Area 1 non opening port light | |
| Towel rail, soap holder and toilet paper holder |
1 X ENTIRE STARBOARD HULL OWNERS CABIN WITH EN-SUITE BATHROOM
1 X ENTIRE STARBOARD HULL OWNERS CABIN WITH EN-SUITE BATHROOM
| Typical area headroom is an average of 2m | |
| Access to the owners hull is from the saloon by a companionway and privacy is provided by a large wooden sliding door | |
| Large solid surfacing counter top with integral “his” and “hers” double basins | |
| Professional hot and cold mixer taps | |
| Cupboards underneath for storage | |
| Large mirror units above with storage for bathroom accessories | |
| Electric toilet | |
| 110V waterproof outlet | |
| Washer drier mounted in dedicated cupboard with removable shelves above | |
| A fully enclosed large shower moulding with Acrylic opening door and seat | |
| Opening deck hatch for ventilation | |
| Combination shade-mosquito screens for opening deck hatches – Goiot | |
| Large non opening hull window | |
| Towel rail, soap holder and toilet paper holder | |
| Overhead recessed LED lighting | |
| Extra large dressing table with built in drawers and Ottoman style seat | |
| 110V outlets with 1 x USB outlet close to bed | |
| Extra large wardrobes with hanging locker and shelves | |
| Electronic safe installed in main wardrobe | |
| Large Dresser unit with cupboards for storage | |
| Double settee/lounger with storage underneath | |
| Queen size bed with mattress and mattress protectors and soft furnished headboard | |
| Island style bed with steps up each side giving separate access | |
| 4 x large non opening vertical windows on outboard hull next to bed giving lots of light and vision | |
| Pleated blinds for hull cabin windows | |
| Extra large storage under bed with drawers | |
| Recessed bookshelf with shelf and cupboards on inboard side next to bed | |
| Larger overhead opening forward facing deck hatch for better natural ventilation | |
| Light switch and for cabin lights | |
| 1 x Cabin fan | |
| 1 x 10 000 BTU Inverter BLDC self-contained air con unit with two upper level outlets. Control panel is fitted at bunk for easy access during night | |
| 2 x Fire extinguishers |
ENGINES AND ENGINE ROOM
ENGINES AND ENGINE ROOM
| Access to the engine rooms is via 2 specially moulded large hatches in the aft cockpit floor | |
| These hatches are lockable and feature gas struts | |
| Two x Yanmar Marine diesel engines Model 4JH80-TE (80HP at 3200RPM) with SD60-T sail drive units, both freshwater cooled, Stbd side coupled via the heat exchanger to a 60L Calorifier for hot water | |
| Each engine is mounted on a specially moulded bed | |
| Each engine is fitted with an additional 24V/110A High Output Mastervolt Alternator for charging the Li-Ion House Batteries trough a Charge Regulator | |
| Complete passive ventilation system | |
| Wet exhaust system including water trap, gooseneck and anti-siphon | |
| Gori 3 blade folding propellers with rope cutters | |
| Fuel capacity is 790L, 2 x tanks, 1 for each engine with shut off valve | |
| Fuel transfer pump to transfer fuel from one tank to another | |
| Fuel filter/water separator in each engine room | |
| Fuel tanks vented to deck via a breather with flame arrestor | |
| Both engines start from a dedicated engine starting battery mounted in a each engine room | |
| Overhead LED lights in each engine compartment | |
| 1 x 120amp standard alternators fitted by engine manufacturer on each engine for charging dedicated engine start battery | |
| Engine room soundproofed | |
| Fireboy automatic fire extinguishing system in each engine room | |
| 2 x Large capacity bilge pump with hi-water alarm in each engine room | |
| Emergency tiller arm supplied on dedicated brackets in stbd engine room | |
| Toolbox with assorted tools |
PLUMBING
PLUMBING
| All freshwater hoses of re-enforced PVC tubing with “speed fit” connections | |
| All hot water piping enclosed in a neoprene covering to maintain temperature over long periods of time | |
| 860 L rigid polyethylene water tanks in front lockers for easy removal and cleaning | |
| Tank vents terminate on deck | |
| One water heater of 60lt with 110V resistor element. Complete with strainers, check valves and accumulator tank | |
| All grey water from showers is discharged overboard by a automatic drain pump | |
| Two large capacity water pressure pumps mounted in front lockers near water tanks with accumulator tank | |
| Each pump draws water from the appropriate fresh water tank and service the entire boat | |
| 100 Ltr/26.42 US gal/min manual bilge pump, one for each hull | |
| Outlets are above water level and discharge overboard | |
| Holding tanks for 3 x toilets | |
| 4 x hi capacity electric bilge pumps with automatic sensors for main bilge area | |
| Washer drier in forward area of stbd heads. Laundry area includes removable shelves at back of washer dryer. | |
| Water maker – Newport 1000C (24VDC system) fully automatic with backwash/fresh water flush – 155L/41gallon/hour + Connect Controller | |
| Dishwasher – 45cm D/Washer – 10 place setting | |
| Connection for hose to hose down chain in windlass locker | |
| Fresh water filter for ice maker fitted in port engine room | |
| Drinking water tap in galley hooked to ice maker filter system | |
| Pull out shower with cold and hot water fitted at top of port transom steps | |
| Fresh water shore connection fitted on port transom step area for connecting ships fresh water system to shore water hose |
ELECTRICAL
ELECTRICAL
| On board DC electrics are 12/24V with two wire-insulated return | |
| Wires are sized to minimize voltage drop | |
| All light current wiring is silicon tinned wiring which is flame proof and does not give off toxic vapours | |
| All heavy current conductors carrying an excess of 50 Amps are 50-70mm² | |
| All light current conductors programmed and powered by C-Zone digital switching | |
| Batteries – the ship’s auxiliary load consists of 22 kWh Mastervolt Li-ion batteries (800Ah at 24V) | |
| A separate battery is supplied for engine starting | |
| For good heavy current termination, copper tinned bus bars are used | |
| A comprehensive DC main digital switching switch panel is located in the Nav Station | |
| Mastervolt Easyview for battery status monitoring | |
| AC circuit – including shore power inlet sockets, shore power cord, electrical panel with necessary breakers and earth leakage | |
| Euro American 2 pin and universal style AC outlets with USB facility fitted at various locations on the vessel | |
| 2 x large under water Zinc anodes fitted to hull. DC and AC are common grounded. Zinc saver | |
| Charger – 1x Mastervolt Chargmaster 24/110 battery charger | |
| Generator – Fischer Panda 15000i PMS – 12KW/15KVA variable speed fitted in port engine room with its own sound insulation cover | |
| Invertor Charger – 2x Mastervolt Mass Combi 24/3000-70 (120V) 6kW total | |
| Solar panels – 6 x 190 Watt on saloon coach roof with MPPT solar regulator | |
| Solar panels – 6 x 190 Watt on targa extension with MPPT solar regulator |
SAFETY EQUIPMENT
SAFETY EQUIPMENT
| 8 fenders / 10 x 10m 18mm tie up ropes | |
| Category 1 offshore safety equipment including 8 man life raft – Viking |
Specifications – X5 Plus
