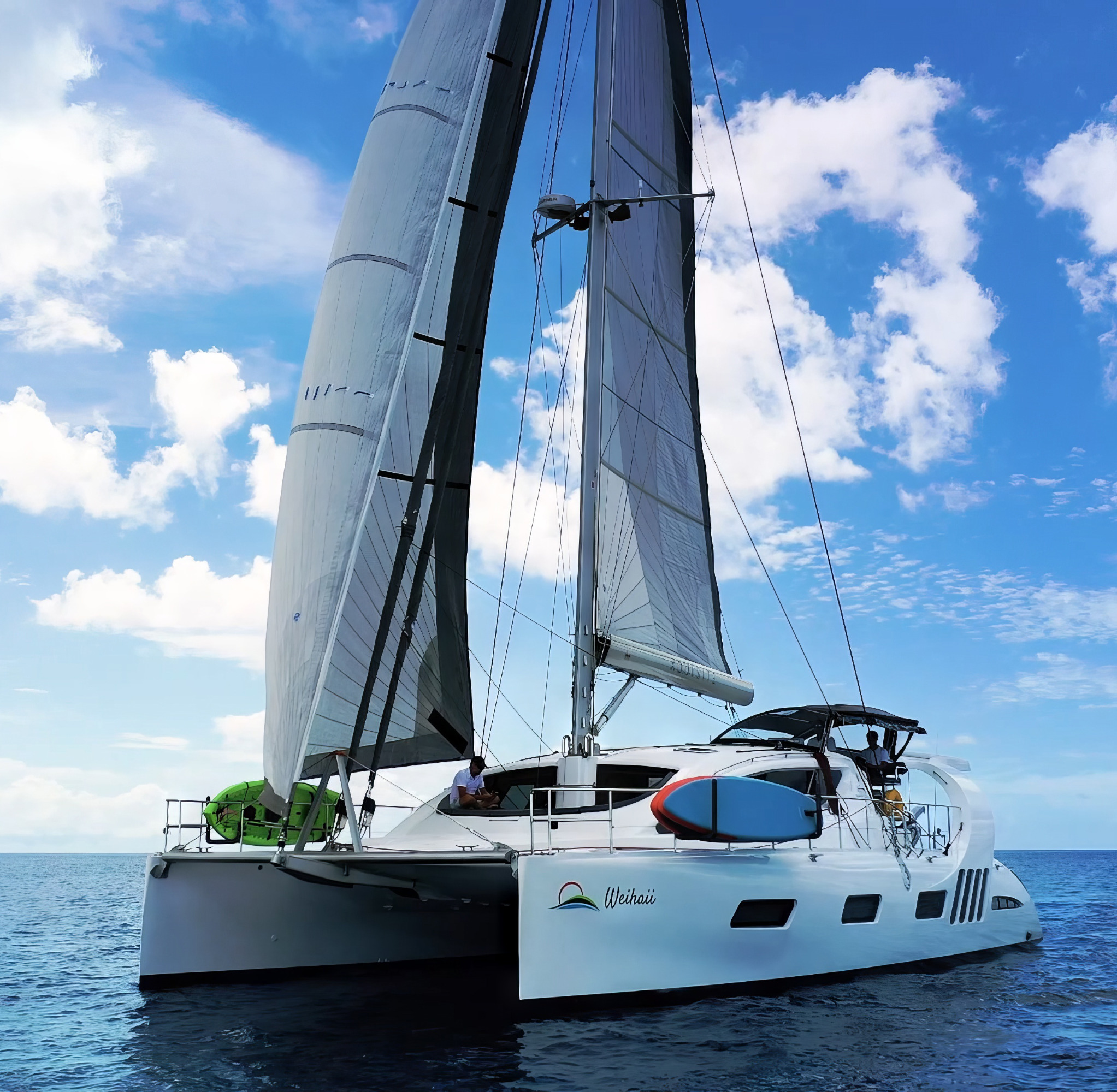

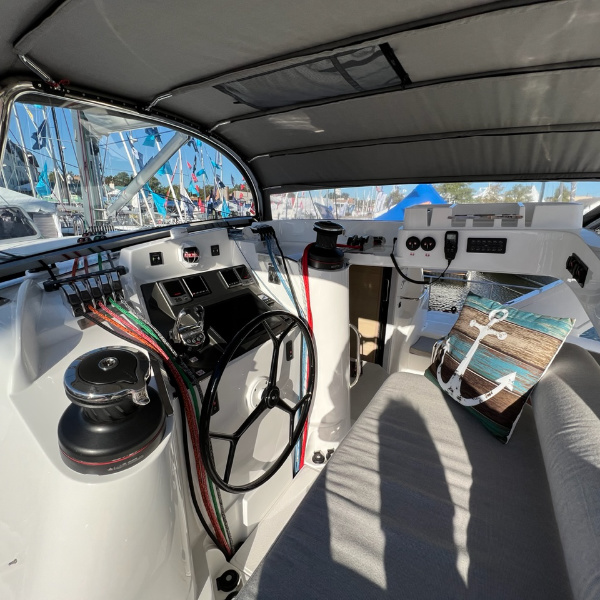

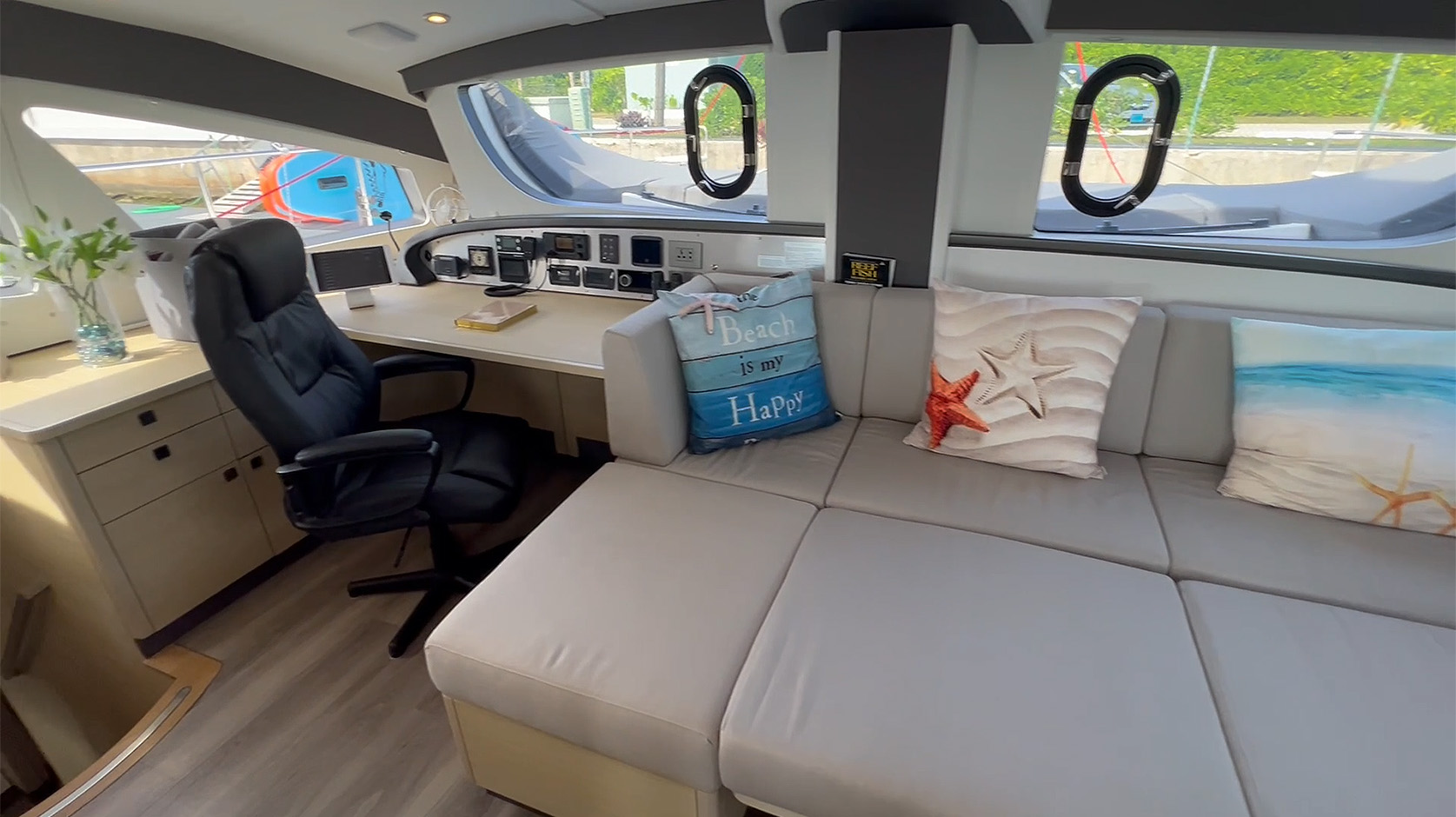

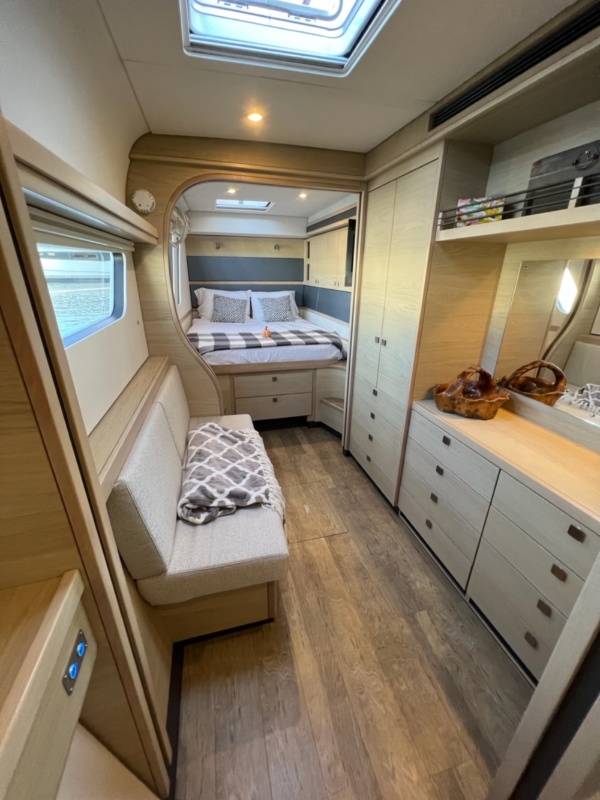

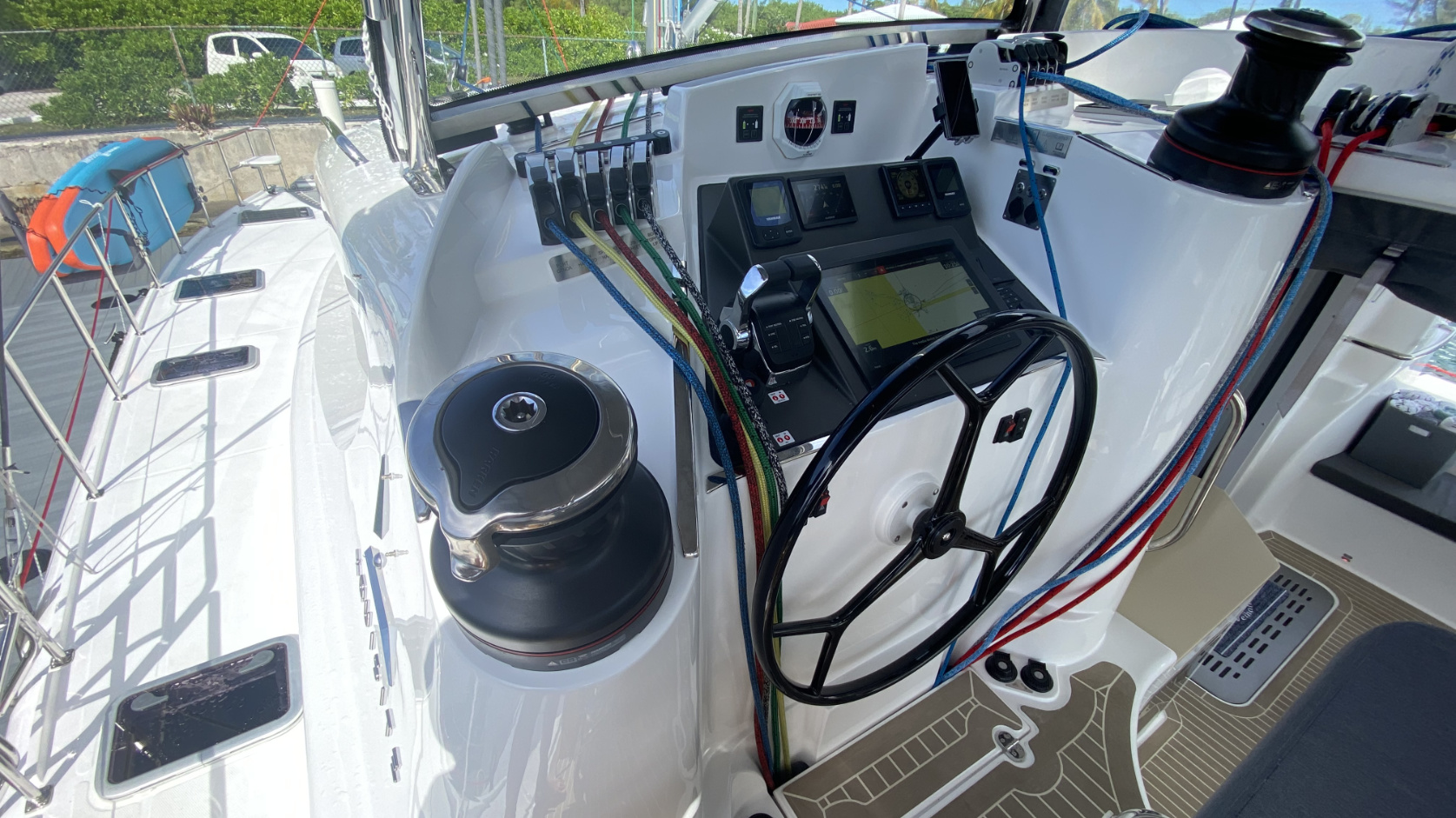

Certified Pre-Owned 2023 X5 PLUS “WEIHAII”

• Certified Pre-Owned
• 90-Day Extended Warranty

• Complete Technical Checkup
• Onboard Training

Completely checked and comes with our 90-Day Extended Warranty!

A whole week of onboard training for the new lucky owner!

Contact Us for further details

Contact Us

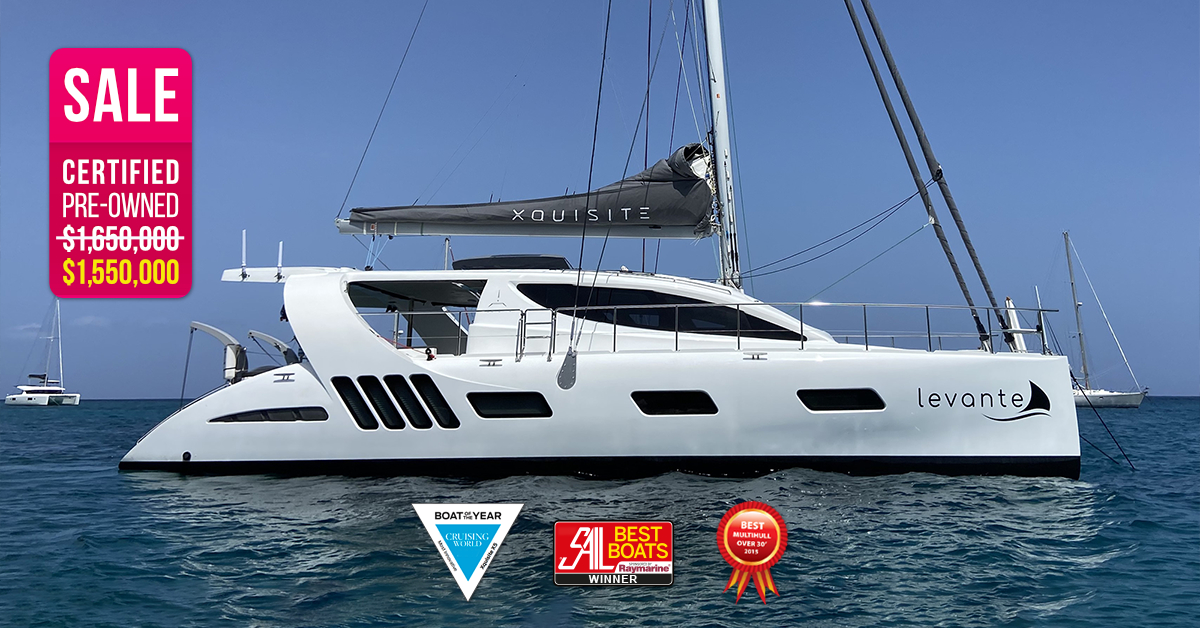

Certified Pre-Owned 2022 X5 Plus “LEVANTE”

• Excellent Condition
• 90-Day Extended Warranty

• Comprehensive Technical Checkup
• Onboard Training

Unique Extras & New Additional Items!

•
  Summary

•
  Photo Gallery

•
  Specifications

Completely checked and comes with our 90-Day Extended Warranty!

A whole week of onboard training for the new lucky owner!

Xquisite X5 PLUS Specifications and Unique Extras below

Xquisite X5 PLUS Specifications and Unique Extras below

•

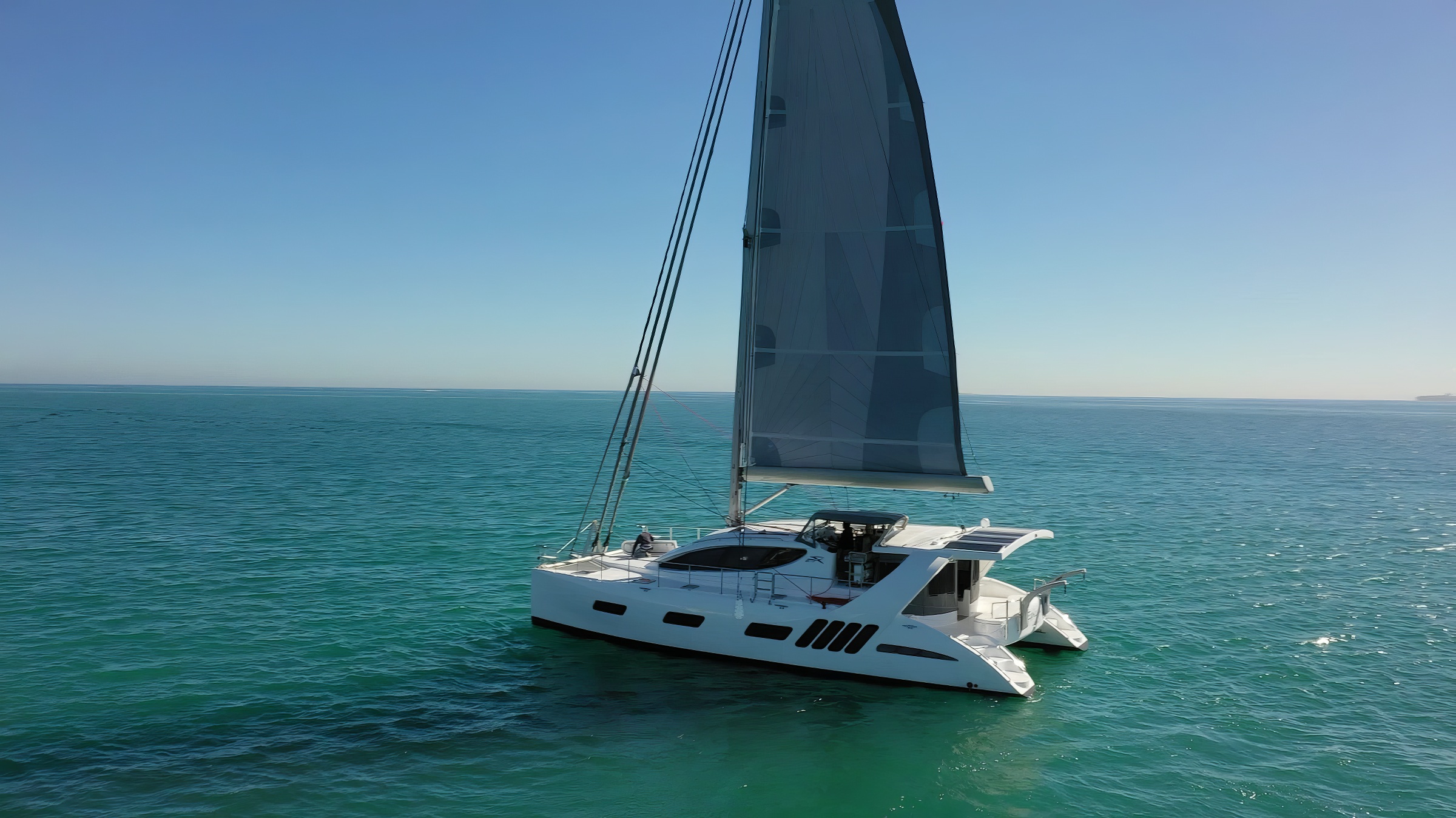

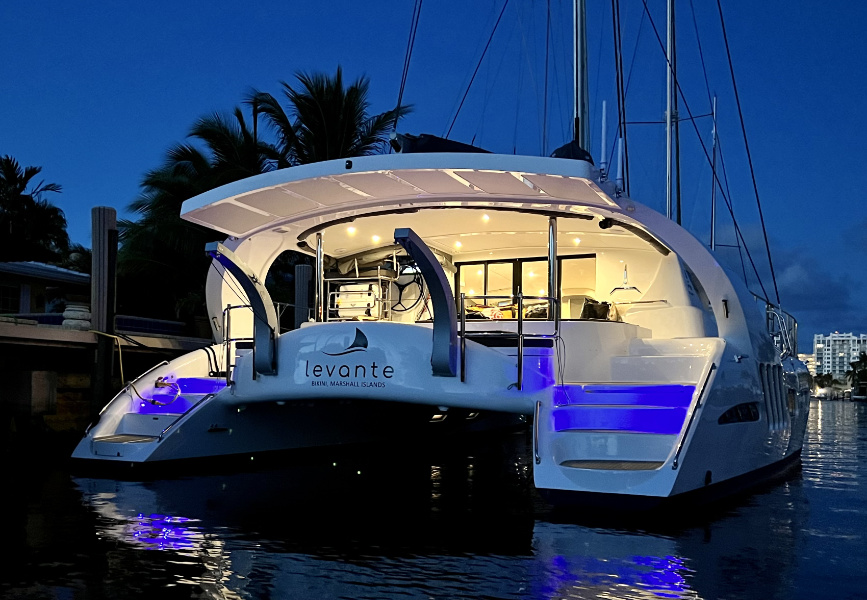

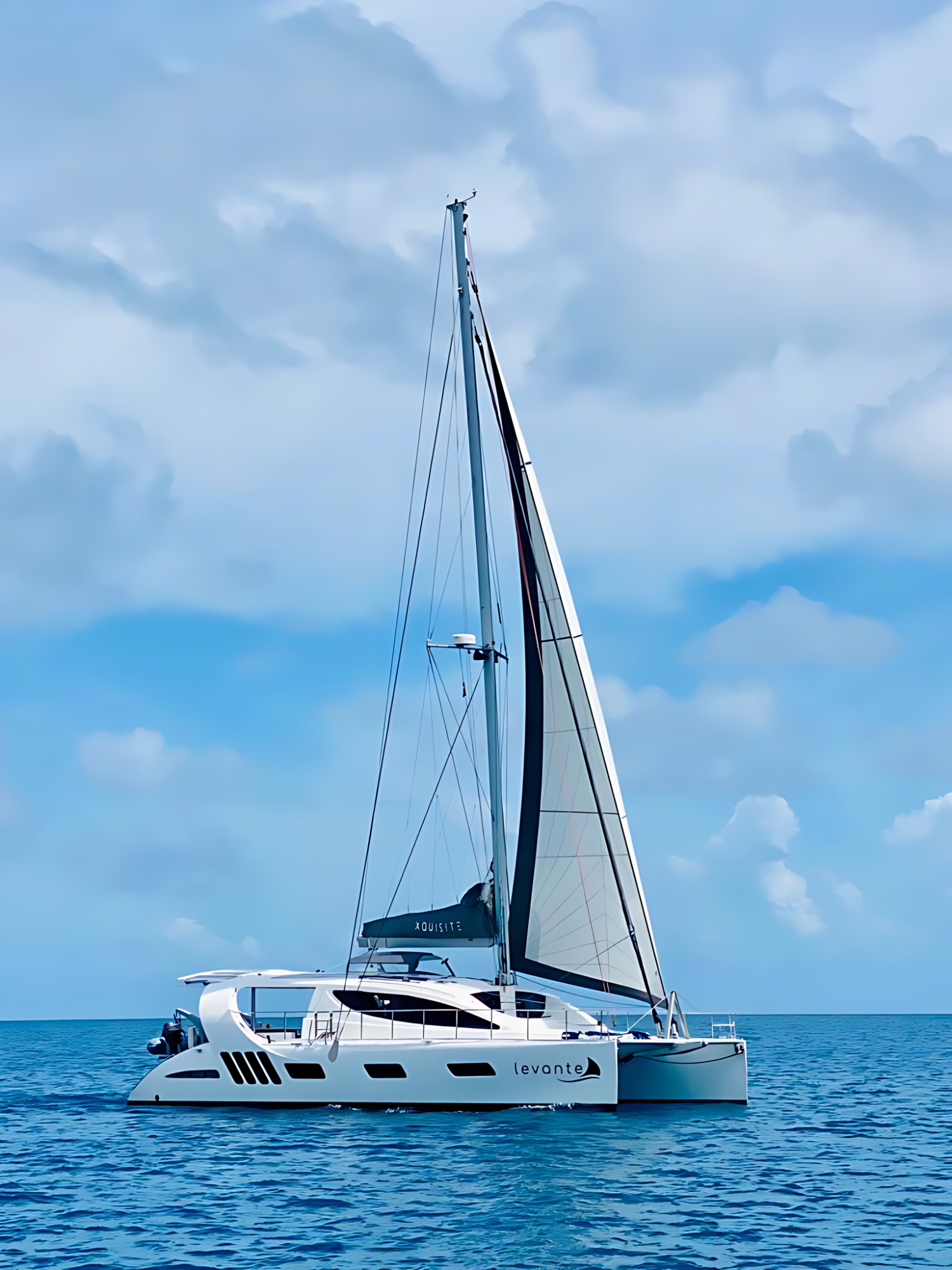

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Exterior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Exterior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Exterior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Exterior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Exterior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Exterior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Exterior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Exterior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Exterior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Exterior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Exterior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Exterior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Exterior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Exterior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Exterior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Exterior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Exterior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Exterior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Exterior

•

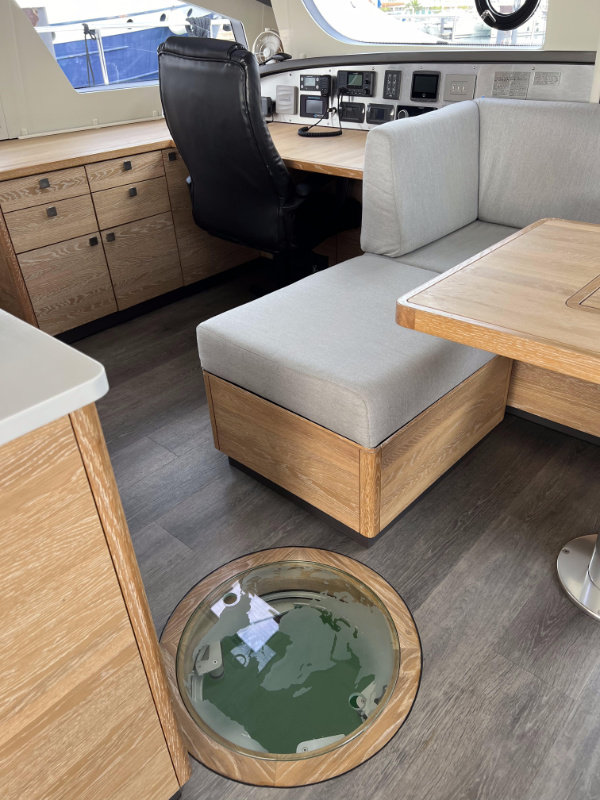

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Interior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Interior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Interior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Interior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Interior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Interior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Interior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Interior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Interior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Interior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Interior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Interior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Interior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Interior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Interior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Interior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Interior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Interior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Interior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Interior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Interior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Interior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Interior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Interior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Interior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Interior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Interior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Interior

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Components

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Components

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Components

•

  Certified Pre-Owned X5 Plus 2022 – LEVANTE – Components

X5 PLUS – LEVANTE – Specifications and Extras

•

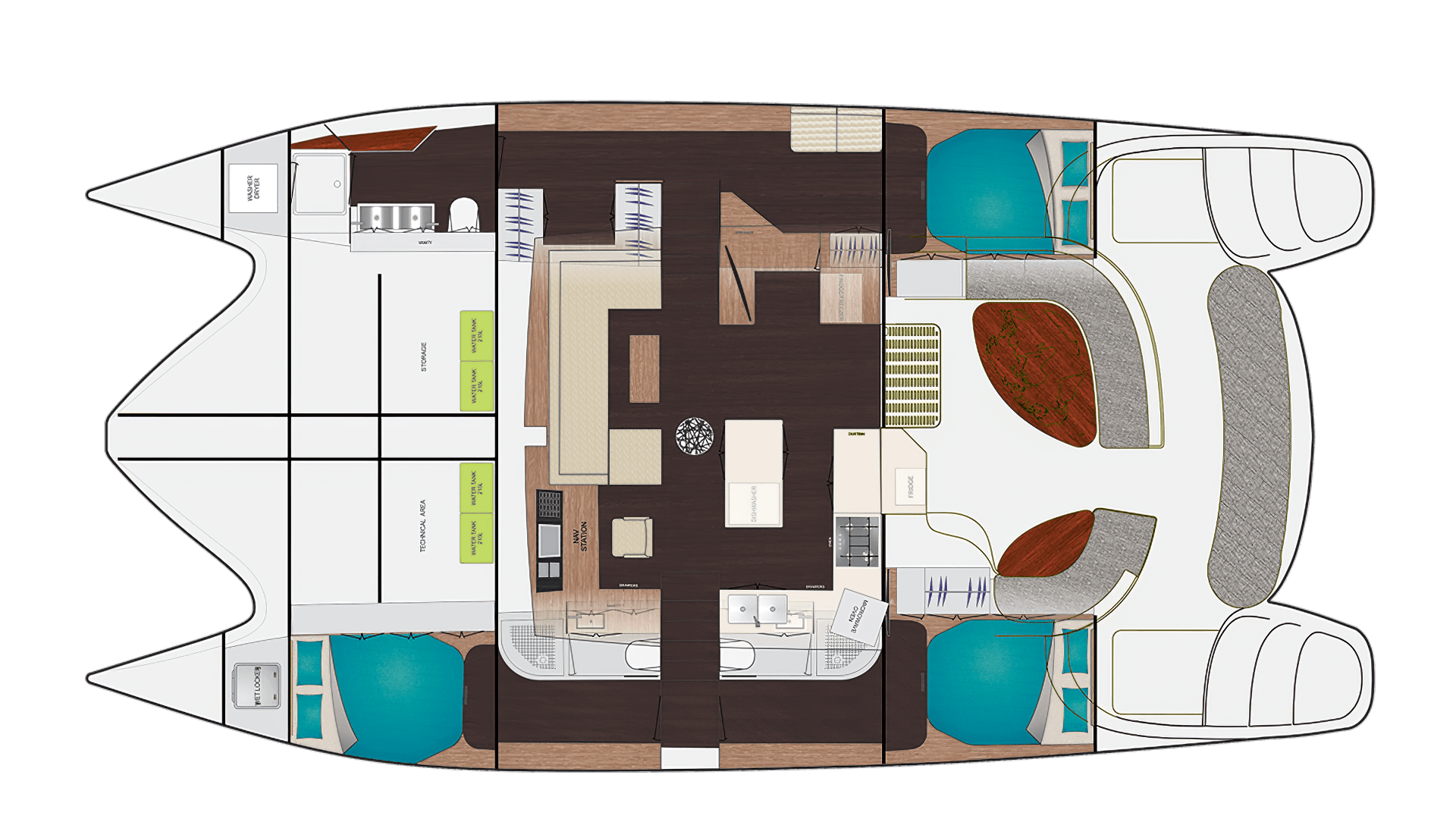

  LAYOUT

  OWNER VERSION – 3x cabins and 3x en-suite heads/bathrooms

• GENERAL SPECIFICATIONS

  Length overall	16.17m / 53′
  Length hull	15.25m / 50′
  Beam	8m / 26.2′
  Draft	1.35m / 4.4′
  Bridge deck clearance Light Craft	1000mm / 3.3′
  Mast height above waterline	24m / 78.7′
  Sail Area – Mainsail	105 m² / 1130 sqf
  Sail Area – Genoa	67 m² / 721 sqf
  Sail Area – Jib	39 m² / 420 sqf
  Sail Area – Code 65	130 m² / 1400 sqf
  Engines	2 x 80 HP
  Fresh water (4×215 L tanks)	860 L / 227 gal
  Diesel (2×395 L tanks)	790 L / 208 gal
  CE Certified	Category A
  Light craft displacement	16000 kg / 35274 lbs

• UNIQUE EXTRAS

  COMFORT PACKAGE
  Electric BBQ built into wetbar with Corian lid in cockpit
  Cotton pascale, quilted double bed fitted mattress protectors
  Canopy shade for foredeck and 2x large bean bacg
  Four button remote for C-Zone system
  ELECTRONICS UPGRADE
  Additional 2nd Garmin GMI 20 repeater screen at inside nav station
  Garmin AIS 800 transceiver
  ENTERTAINMENT PACKAGE
  1x TV in master cabin
  2x Bose speakers to be fitted on spreaders
  4 x Underwater LED lights
  Apple TV
  COMMUNICATIONS PACKAGE
  Cellular Modem / WiFi Router Antenna System
  Iridium Go with external aerial on spreader
  Starlink High Performance Dish with TP Link High Perfromnace router
  FLEXITEEK DECKING
  Flexiteek on cockpit floor, steps to helm station and helm station floor and transom and transom steps
  SAILS
  Code 65 – 130m² on bowsprit and Facnor electric furler. Sheets led back to electric winches at helm station
  Furling Gennaker with top down swivel. Sheet led back to electric winches at helm station
  Upgraded running rigging
  PROPELLER UPGRADE
  Gori 3 blade folding propellers with rope cutters
  SCUBA PACKAGE
  Coltri-6/EM INOX electric dive compressor – Condensate drain with automatic timer
  4 x 12L Dumpie Dive Tanks plus holder and filling hose
  WATERMAKER UPGRADE
  Water maker – Newport NP-MK IIZ-1000 fully automatic with backwash fresh water flush – 150Ltr/hr
  SAFETY EQUIPMENT
  2 EPIRBS
  Lifesling
  Fully equipped ditch bag
  High output emergency bilge pump
  MOB inflatable IOR Dan Bouy
  Strobe lights
  ANCHOR UPGRADE
  Stainless steel ULTRA anchor with flip swivel
  SPARES AND TOOLS
  Tool cabinet instead of standard drawers or additional freezer
  Professional tool kit in foam inserts in tool cabinet
  Comprehensive spares kit
  DINGHY & OUTBOARD ENGINE
  AB 12′ aluminum hull tender with Yamaha 25HP EFI outboard engine (fitted with starter battery, fuel filter, electric bilge pump, custom lifting bridles for dinghy davits)
  WORLDWIDE DELIVERY
  Delivery to USA/Caribbean/Mediterranean aboard cargo ship
  CUSTOMIZATIONS
  COLORS
  Furniture – Oak Lime Textured Mat
  Floor – Sash Oak (grey)
  Upholstery – Sterling
  Countertops – Light Grey
  Accent Panels – Platinum
  Headliner – Off-White
  Baseboards, trims and bathroom doors – Brown greyish
  Outside Upholstery – Titanium
  Flexiteek – Weathered with white caulking
  MASTER CABIN
  Leather pouch (9in wide x 7in tall; bottom of pouch positioned 22in from ceiling of cabin, it lines up with line dividing two accent panels in the head board of the beds) attached to headliner on outboard side of master cabin – made to store phone, iPad, earphones, small charger…
  Bookshelf above vanity table in master cabin
  MASTER BATHROOM
  Intstall double tower rack
  Bench seat outside of shower in Light Grey
  PORT CABINS
  Port Bathrooms – Solid light frosting (similar to X5) all around for complete privacy when someone is using the head/toilet
  Port Bathrooms (for both bathrooms) – Install double towel rack
  Port aft cabin only – Leather pouch (9in wide x 7in tall; bottom of pouch 22in from ceiling of cabin, it lines up with line dividing two accent panels in the head board of the beds) attached to headliner on outboard side of master cabin – made to store phone, iPad, earphones, small charger…
  SALOON
  Main table that can be used as coffee table, daybed and dining table.
  ADDITIONAL ITEMS
  Camera on top of the mast
  Dometic Electric Cooler CFX3 75L, Includes cover and cushion on top
  Fishing rod holders
  Yachtrouter system (wifi/cellular booster)
  Extra backrest at helm
  Parasailor pre-install (only the fixed hardware)
  Ethernet cables from Yacht router to both TVs
  Dinghy and full setup with 1st aid kit and mini fire extinguisher
  Fully equipped galley with breadmaker, toaster, blender, instant pot, vacuum sealer, soda stream, pots and pans, plates, bowls, cups, cutlery, etc.
  Fishing gear

• HULL AND APPENDAGES

  The hull is of sandwich composite construction using Quadriaxial stitched fabrics, Divinicell composite PVC foam and Epoxy Vinyl Ester resin. This gives a stiff laminate with excellent strength and lightweight properties
  The engine beds are of GRP and bonded to the hull
  Sea-cocks under water line are Marelon and located in accessible positions
  Hose connections to inboard side of stainless steel sea-cocks have two stainless steel hose clamps
  For osmosis protection an ISO / NPG Gelcoat is used
  Standard Gelcoat colour is white
  Rudders are solid GRP boasting a 55mm solid stainless steel shaft with hydraulic steering system
  Structural bulkheads are a combination of 80 density foam and Lloyds Marine ply wood hand laminated to hull and deck
  Bulkhead thickness is 24mm for ply wood and 28mm for foam core
  Dedicated collision bulkheads at bow, at transom (to protect the engines) and at the bottom section of each keel
  Underwater epoxy – Antifouling application

• DECK AND FITTINGS

  The deck is of sandwich composite construction using Quadriaxial-stitched fabrics with 80 density foam of appropriate thickness as the core
  High density material under all deck fittings with stainless steel backing plates
  Deck surface has a moulded diamond patterned non-slip finish
  Standard Gelcoat colour is white
  Electric under deck horizontal anchor windlass 24V/1500W with wired remote in foredeck anchor locker
  Large anchor cleat mounted in anchor locker
  Stainless steel anchor swivel with twin nylon anchor roller inside anchor locker
  Anchor – Delta 50kg, 75m of 10mm chain, 100m 16mm warp
  Stainless steel shroud chain plates are bolted to hull in area of structural bulkheads
  Two recessed water tank fillers fitted on coachroof so as to act as rain water collection points
  Two Diesel fillers fitted on aft top transom step
  Breathers exit above deck level
  2 x 110v Electricity dock inlets on transom with shore power leads
  1 x 220v Electricity dock inlet on transom with shore power lead
  Electrical stainless steel gooseneck at mast
  Fore deck hatches for storage with recessed and lockable stainless steel catches with stainless steel gas struts
  Large access opening deck hatch on port foredeck peak gives access to white flow coated locker with ladder going down into locker
  Cabin windows straight laminated glass panels with ceramic borders for UV protection
  Steaming lights on crossbeam A-frame, mast and aft targa
  Tow rail is incorporated into the deck with dedicated mounting areas for stanchions
  Two pull-pits with white moulded GRP seats
  Side railings with mid gate in solid stainless steel tubing with middle stainless steel wire. Railing height 720mm
  8 x Large mooring cleats for marina berthing
  2 x Transom cleats on inner hull
  Electric Roller furling self tacking Jib with curved traveller situated in front of mast step with jib sheet led aft to winch in cockpit
  Complete main-sheeting system with blocks led aft to winch in cockpit
  All lines from mast and sailing gear led aft to two main electric winches
  Sliding aluminium entrance door with 6.5mm laminated clear glass with lock
  Recessed sliding door grating in cockpit floor
  Fire extinguisher in cockpit
  Wet and dry lockers in cockpit for storage
  Large teak cockpit table incorporating world map in black polyurethane on fixed aluminum legs
  Small teak cockpit table on adjustable single aluminum leg enabling to be converted to a bed
  Wet bar in cockpit incorporating solid surfacing counter top with under mounted GRP sink and mixer tap
  Fridge for cockpit – Vitrifrigo C 60iX 60Ltr
  Drinks cupboard with shelves and bottle storage in wet bar with acrylic door and LED lights
  Overhead recessed LED cockpit lights
  Blue and red exterior courtesy floor lighting
  X5 LED backlit corporate logo on bulkhead in cockpit
  All lockers are self-draining and flow coated white
  One anodized aluminium structural cross beam with A-frame through bolted on bow
  Two large open net trampolines lashed to deck
  Stainless steel swimming ladder on Port side with stainless steel handrail up each stepped transom
  Integral complete overhead targa bar with soft furnishing inserts
  Build into the targa on port side a overhead shower with hot and cold water
  Pull out shower with cold and hot water fitted at top of port transom steps
  Fresh water shore connection fitted on port transom step area for connecting ships fresh water system to shore water hose
  Bimini sides and back with mesh windows that can also be closed for privacy, fitted in a recess in overhead moulding for flush look
  Recliner style sunbed on aft deck incorporating stowage underneath – stainless steel railing/cable to prevent person falling overboard
  1 x 12 volt outlet at cockpit table
  1 x 110 volt splash proof outlet at cockpit table
  14 x large, non-opening recessed windows in tinted glass in hull outer sides
  Cockpit and helm cushions including backrests
  Davits on aft sunbed with remote controlled electric winches fitted in sunbed locker. Ropes and blocks included
  Handrails fitted in front top part of targa for extra security when moving up and down deck levels
  Small adjustable LED spotlights fitted on both aft sides of targa to supply light on aft steps and BBQ

• HELM STATION

  All lines led back to helm for easy single handed sailing.
  Winches are 2 speed electric self tailing, size 60
  14 x rope clutches at helm station for clutching sheets, halyards and ropes
  Extra large double seat helm chair with full length padded backrest in cockpit
  Large power dampened compass ahead of helm station in cockpit
  1 x Garmin GMI20 multi display instrument at helm
  1 x Garmin 16″ GPSMAP chart plotter with GPS and remote keypad
  1 x Garmin GMR Fantom 24 Dome Radar with MotionScope
  1 x Garmin autopilot – GHP reactor 12 core pack with GHC20 display
  1 x Garmin wired command mike
  Glass windscreen and extended sliding cloth bimini above helm chair
  Separate moulded instrument module with angled mounting surfaces for instruments and incorporated wireless phone charge station
  Storage locker with lid for ropes below steering wheel
  C-Zone switch panel to control various systems from helm
  1 x 12V outlet and 1 x USB outlet
  Second control with chain counter for windlass operation at cockpit
  Engine instrumentation, electronic throttle and gear controls
  800mm, Black composite three spoke race look helm wheel
  Handrail fitted below stbd winch for easy and safe access to helm station
  Dedicated storage area for small items like phones, binoculars etc.
  Red/white light fitted at helm to provide light at night

• RIGGING AND SAILS

  Spars by Sparcraft S.A.
  Spars built of extruded aluminium and anodised silver-grey
  Single spreader fractional rig with internal wiring shielded in PVC tube secured to mast
  Mast grounded through shrouds/chain plates to copper grounding plates in keels
  Batten car system for mainsail
  Boom, standing and running rigging
  Shrouds have chafe guards
  Flag halyards from bottom spreader
  Furling system for headsails
  Navigation, deck and anchor lights
  VHF aerial on top of mast.
  Sails by North Sails – Full batten mainsail with three reefs totalling 100m²
  Stack pack with corporate logo
  2 x mainsail lazy-Jacks
  1 x mainsail halyard – 12mm Spectra
  1 x Genoa furler halyard – 8mm Spectra with Bow Shackle and sliding adjuster on mast
  1 x Jib furler halyard – 8mm Spectra with Bow Shackle and sliding adjuster on mast
  1 x Spinnaker / Code 0 halyard -12mm Spectra
  1 x Self tacking Jib sheet – 12mm Spectra
  1 x Main boom topping lift – 12mm Braid
  1 x Mainsheet sheet – 12mm Spectra
  1 x Reefline no1 – 12mm Spectra
  1 x Reefline no2 – 12mm Spectra
  1 x Reefline no3 – 12mm Spectra
  1 x Fixed outhaul – 12mm Spectra
  2 x Mainsail traveller car control lines – 10mm braid
  2 x Genoa sheets – 12mm Super Braid
  Electric Furling 40m² Self taking Jib with UV including deck hardware
  Electric Furling 60m² Genoa with UV including deck hardware

• INTERIOR FINISHES

  All joinery work and finishing in the living areas is done in accordance with the best yacht practice, using first-grade marine materials
  All cupboard locker doors and drawers fitted with stylish pelican hook type catches in satin chrome finish
  All cupboard locker doors and drawers fitted with soft close hinges and drawer slides
  All Veneer and solid wood are of (wood to be confirmed) with a matt polyurethane acrylic lacquer for a professional and durable finish
  Interior of all cupboards where possible have lined or painted surface
  Ceilings and topside linings in (colour to be confirmed) soft touch leather furnishings
  (Colour to be confirmed) laminated hi wear flooring throughout
  Cabin mattresses is 120mm – multilayer foam with several densities covered with fabric
  Basin units, basins and galley tops made from Corian solid surfacing (colour to be confirmed)

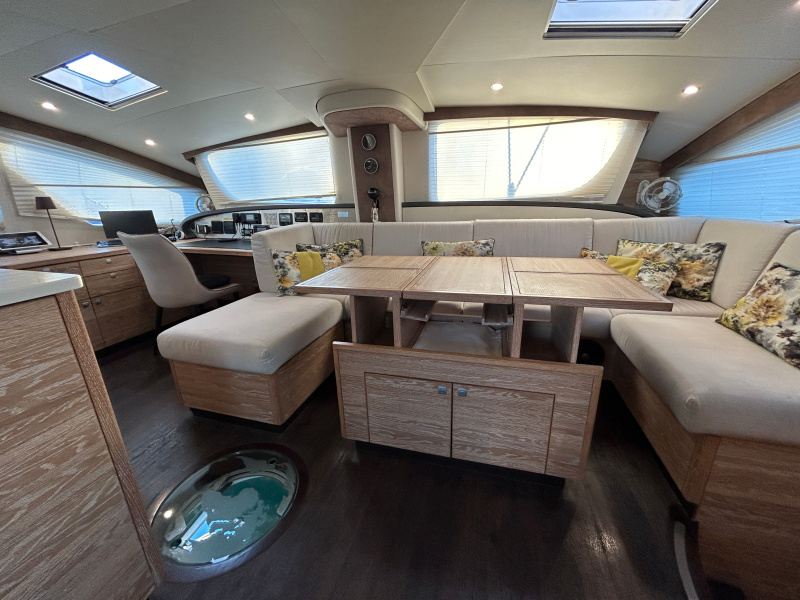

• SALOON

  Large saloon area with 360 degree panoramic view
  75mm raised headroom
  Incorporated opening portholes in forward facing windows for ventilation
  U-shaped settee with cloth upholstery (colour to be confirmed)
  Large, convertible saloon table with internal 110V outlet for printer
  Combination shade-mosquito screens for opening deck hatches – Goiot
  Pleated blinds for saloon cabin windows
  Storage compartments under saloon seating
  Overhead stylish LED recessed ceiling lights
  Light switches to operate and dim light output
  3 x large opening deck hatches
  Locking Sliding aluminium door with open/closed positions
  Escape hatch in saloon floor with sand blasted glass ‘world map’ logo
  Sliding window to cockpit
  Laminated flooring throughout
  110V outlets
  1 x Cabin fan
  2 x 10000 BTU Inverter BLDC self-contained air con units with outlets at nav and settee

• ENTERTAINMENT AREA

  Typical area headroom is an average of 2,05m
  Large U-shaped cupboard unit with entertainment equipment and storage drawers
  1 x 32″ LED smart television on TV lift system that can rotate from 0 to 90 degrees
  Large vertical cupboard housing refrigeration/freezer unit with small storage cupboard on the side
  24V compressor driven door fridge-capacity 157L combined with a 2 drawer deep freezer – capacity 144L with incorporated ice maker

• GALLEY AND PANTRY

  Typical area headroom is an average of 2,05m
  Galley in main saloon to Port with direct access to cockpit
  Large L-shaped counter top in solid surfacing with double under counter sink with chromed professional mixer tap
  Drinking water tap hooked to ice maker filter system
  Large double drawers under sink unit with heavy duty drawer slides
  Integrated dish draining area
  Large cupboard doors with storage
  One set of drawers
  Drawer for spice and condiments
  Rubbish bin in dedicated drawer for easy access
  2 x Double domino style induction hobs with pot holders
  Extraction system above hob
  Speed oven with grill (convection microwave)
  Large Island unit with solid surfacing
  Large single cupboard
  Recessed overhead LED lighting
  Light switch and dimmer for overhead lighting
  Laminated flooring
  Numerous 110v outlets
  Fire extinguisher
  Fire blanket

• NAVIGATION STATION

  75mm raised headroom
  Very good 360 degree visibility due to large cabin windows
  Overhead recessed LED lighting
  Office chair at navigation station
  iPad with LaunchPort docking station and sleeve
  1 x 110v outlet fitted on countertop
  1 x Cabin fan
  Chart light
  L-shaped nav desk with large countertop with incorporated wireless phone charging
  Numerous cupboards with doors and drawers
  Fire extinguisher

  MOUNTED IN A PRACTICAL AND NEAT ARRANGEMENT INTO A STYLISH AND MODERN DASHBOARD ARE THE BELOW MENTIONED EQUIPMENT

  Custom designed switchboard with digital switching switches
  Mastervolt Easy View digital monitoring screen for selected onboard electrical equipment and charging systems
  1 x 12V outlet
  Garmin VHF radio with AIS receiver
  Fusion Apollo 770 music system with 4 x MS-FR7021 7″ 260watt marine speakers (two in saloon and two in cockpit)
  1 x 110V outlet
  Spectra water maker control panel
  Fischer Panda generator control panel
  Port and stbd saloon air conditioner control panels
  Le Grand USB(x3) outlets

• 2 X PORT HULL GUEST CABINS

  Typical area headroom is an average of 2m
  Access to each of the cabins is from the saloon by a companionway. Privacy is provided by a cabin door leading to each cabin
  Large 1.95m x 1.4m bed with soft furnished headboard
  Island style bed with steps up each side giving separate access
  Recessed bookshelf with cabinet and wardrobe
  Extra large storage under bed with drawers
  Dressing table with drawers underneath
  Larger overhead opening deck hatches facing forward for better natural ventilation
  Combination shade-mosquito screens for opening deck hatches – Goiot
  Several large non opening hull windows
  Reading lights with built in USB outlets, overhead recessed ceiling lights, all LED
  Switch for cabin lights
  Fire extinguisher
  Laminated flooring throughout
  110v outlets with 1 x USB outlet close to bed
  1 x Cabin fan (each cabin)
  Pleated blinds for hull cabin windows
  1 x 7000 BTU Inverter BLDC self-contained air con unit (per cabin) with one upper level outlet for each cabin. Control panel is fitted at bunk for easy access

• 2 X PORT HULL GUEST EN-SUITE BATHROOMS

  Bathroom enclosed with clear acrylic with sandblast vinyl design and dual purpose door
  Electric toilet
  Solid surfacing counter top with integrated washbasin
  Pressurized hot and cold water professional mixer tap
  Cupboard and storage underneath
  Overhead mirror storage unit for bathroom accessories. Now with increased headroom over basin area
  Opening deck hatch for ventilation
  Combination shade-mosquito screens for opening deck hatches – Goiot
  Area 1 non opening port light
  Towel rail, soap holder and toilet paper holder

• 1 X ENTIRE STARBOARD HULL OWNERS CABIN WITH EN-SUITE BATHROOM

  Typical area headroom is an average of 2m
  Access to the owners hull is from the saloon by a companionway and privacy is provided by a large wooden sliding door
  Large solid surfacing counter top with integral “his” and “hers” double basins
  Professional hot and cold mixer taps
  Cupboards underneath for storage
  Large mirror units above with storage for bathroom accessories
  Electric toilet
  110V waterproof outlet
  Washer drier mounted in dedicated cupboard with removable shelves above
  A fully enclosed large shower moulding with Acrylic opening door and seat
  Opening deck hatch for ventilation
  Combination shade-mosquito screens for opening deck hatches – Goiot
  Large non opening hull window
  Towel rail, soap holder and toilet paper holder
  Overhead recessed LED lighting
  Extra large dressing table with built in drawers and Ottoman style seat
  110V outlets with 1 x USB outlet close to bed
  Extra large wardrobes with hanging locker and shelves
  Electronic safe installed in main wardrobe
  Large Dresser unit with cupboards for storage
  Double settee/lounger with storage underneath
  King-size 1.95m x 1.4m bed with soft furnished headboard
  Island style bed with steps up each side giving separate access
  4 x large non opening vertical windows on outboard hull next to bed giving lots of light and vision
  Pleated blinds for hull cabin windows
  Extra large storage under bed with drawers
  Recessed bookshelf with shelf and cupboards on inboard side next to bed
  Larger overhead opening forward facing deck hatch for better natural ventilation
  Light switch and for cabin lights
  1 x Cabin fan
  1 x 10 000 BTU Inverter BLDC self-contained air con unit with two upper level outlets. Control panel is fitted at bunk for easy access during night
  2 x Fire extinguishers

• ENGINES AND ENGINE ROOM

  Access to the engine rooms is via 2 specially moulded large hatches in the aft cockpit floor
  These hatches are lockable and feature gas struts
  Two x Yanmar Marine diesel engines Model 4JH80-TE (80HP at 3200RPM) with SD60-T sail drive units, both freshwater cooled, Stbd side coupled via the heat exchanger to a 60L Calorifier for hot water
  Each engine is mounted on a specially moulded bed
  Each engine is fitted with an additional 24V/110A High Output Mastervolt Alternator for charging the Li-Ion House Batteries trough a Charge Regulator
  Complete passive ventilation system
  Wet exhaust system including water trap, gooseneck and anti-siphon
  Yanmar fixed 3 blade propeller
  Fuel capacity is 790L, 2 x tanks, 1 for each engine with shut off valve
  Fuel transfer pump to transfer fuel from one tank to another
  Fuel filter/water separator in each engine room
  Fuel tanks vented to deck via a breather with flame arrestor
  Both engines start from a dedicated engine starting battery mounted in a each engine room
  Overhead LED lights in each engine compartment
  1 x 120amp standard alternators fitted by engine manufacturer on each engine for charging dedicated engine start battery
  Engine room soundproofed
  Fireboy automatic fire extinguishing system in each engine room
  2 x Large capacity bilge pump with hi-water alarm in each engine room
  Emergency tiller arm supplied on dedicated brackets in stbd engine room
  Toolbox with assorted tools

• PLUMBING

  All freshwater hoses of re-enforced PVC tubing with “speed fit” connections
  All hot water piping enclosed in a neoprene covering to maintain temperature over long periods of time
  860 L rigid polyethylene water tanks in front lockers for easy removal and cleaning
  Tank vents terminate on deck
  One water heater of 60lt with 110V resistor element. Complete with strainers, check valves and accumulator tank
  All grey water from showers is discharged overboard by a automatic drain pump
  Two large capacity water pressure pumps mounted in front lockers near water tanks with accumulator tank
  Each pump draws water from the appropriate fresh water tank and service the entire boat
  100 Ltr/26.42 US gal/min manual bilge pump, one for each hull
  Outlets are above water level and discharge overboard
  Holding tanks for 3 x toilets
  4 x hi capacity electric bilge pumps with automatic sensors for main bilge area
  Washer drier in forward area of stbd heads. Laundry area includes removable shelves at back of washer dryer.
  Water maker – Newport 400 NP-MK II-400S fully automatic with backwash/fresh water flush – 62Ltr + Connect Controller
  Dishwasher – 45cm D/Washer – 10 place setting
  Connection for hose to hose down chain in windlass locker
  Fresh water filter for ice maker fitted in port engine room
  Drinking water tap in galley hooked to ice maker filter system
  Pull out shower with cold and hot water fitted at top of port transom steps
  Fresh water shore connection fitted on port transom step area for connecting ships fresh water system to shore water hose

• ELECTRICAL

  On board DC electrics are 12/24V with two wire-insulated return
  Wires are sized to minimize voltage drop
  All light current wiring is silicon tinned wiring which is flame proof and does not give off toxic vapours
  All heavy current conductors carrying an excess of 50 Amps are 50-70mm²
  All light current conductors programmed and powered by C-Zone digital switching
  Batteries – the ship’s auxiliary load consists of 20 kWh Mastervolt Li-ion batteries (800Ah at 24V)
  A separate battery is supplied for engine starting
  For good heavy current termination, copper tinned bus bars are used
  A comprehensive DC main digital switching switch panel is located in the Nav Station
  Mastervolt Easyview for battery status monitoring
  AC circuit – including shore power inlet sockets, shore power cord, electrical panel with necessary breakers and earth leakage
  Euro American 2 pin and universal style AC outlets with USB facility fitted at various locations on the vessel
  2 x large under water Zinc anodes fitted to hull. DC and AC are common grounded. Zinc saver
  Charger – 1x Mastervolt Chargmaster 24/110 battery charger
  Generator – Fischer Panda 15000i PMS – 12KW/15KVA variable speed fitted in port engine room with its own sound insulation cover
  Invertor Charger – 2x Mastervolt Mass Combi 24/3000-70 (120V) 6kW total
  Solar panels – 6 x 190 Watt on saloon coach roof with MPPT solar regulator
  Solar panels – 6 x 190 Watt on targa extension with MPPT solar regulator

• SAFETY EQUIPMENT

  8 fenders / 10 x 10m 18mm tie up ropes
  Category 1 offshore safety equipment including 8 man life raft – Viking

•

  LAYOUT

  OWNER VERSION – 3x cabins and 3x en-suite heads/bathrooms

• GENERAL SPECIFICATIONS

  Length overall	16.17m / 53′
  Length hull	15.25m / 50′
  Beam	8m / 26.2′
  Draft	1.35m / 4.4′
  Bridge deck clearance Light Craft	1000mm / 3.3′
  Mast height above waterline	24m / 78.7′
  Sail Area – Mainsail	105 m² / 1130 sqf
  Sail Area – Genoa	67 m² / 721 sqf
  Sail Area – Jib	39 m² / 420 sqf
  Sail Area – Code 65	130 m² / 1400 sqf
  Engines	2 x 80 HP
  Fresh water (4×215 L tanks)	860 L / 227 gal
  Diesel (2×395 L tanks)	790 L / 208 gal
  CE Certified	Category A
  Light craft displacement	16000 kg / 35274 lbs

• UNIQUE EXTRAS

  COMFORT PACKAGE
  Electric BBQ built into wetbar with Corian lid in cockpit
  Cotton pascale, quilted double bed fitted mattress protectors
  Canopy shade for foredeck and 2x large bean bacg
  Four button remote for C-Zone system
  ELECTRONICS UPGRADE
  Additional 2nd Garmin GMI 20 repeater screen at inside nav station
  Garmin AIS 800 transceiver
  ENTERTAINMENT PACKAGE
  1x TV in master cabin
  2x Bose speakers to be fitted on spreaders
  4 x Underwater LED lights
  Apple TV
  COMMUNICATIONS PACKAGE
  Cellular Modem / WiFi Router Antenna System
  Iridium Go with external aerial on spreader
  Starlink High Performance Dish with TP Link High Perfromnace router
  FLEXITEEK DECKING
  Flexiteek on cockpit floor, steps to helm station and helm station floor and transom and transom steps
  SAILS
  Code 65 – 130m² on bowsprit and Facnor electric furler. Sheets led back to electric winches at helm station
  Furling Gennaker with top down swivel. Sheet led back to electric winches at helm station
  Upgraded running rigging
  PROPELLER UPGRADE
  Gori 3 blade folding propellers with rope cutters
  SCUBA PACKAGE
  Coltri-6/EM INOX electric dive compressor – Condensate drain with automatic timer
  4 x 12L Dumpie Dive Tanks plus holder and filling hose
  WATERMAKER UPGRADE
  Water maker – Newport NP-MK IIZ-1000 fully automatic with backwash fresh water flush – 150Ltr/hr
  SAFETY EQUIPMENT
  2 EPIRBS
  Lifesling
  Fully equipped ditch bag
  High output emergency bilge pump
  MOB inflatable IOR Dan Bouy
  Strobe lights
  ANCHOR UPGRADE
  Stainless steel ULTRA anchor with flip swivel
  SPARES AND TOOLS
  Tool cabinet instead of standard drawers or additional freezer
  Professional tool kit in foam inserts in tool cabinet
  Comprehensive spares kit
  DINGHY & OUTBOARD ENGINE
  AB 12′ aluminum hull tender with Yamaha 25HP EFI outboard engine (fitted with starter battery, fuel filter, electric bilge pump, custom lifting bridles for dinghy davits)
  WORLDWIDE DELIVERY
  Delivery to USA/Caribbean/Mediterranean aboard cargo ship
  CUSTOMIZATIONS
  COLORS
  Furniture – Oak Lime Textured Mat
  Floor – Sash Oak (grey)
  Upholstery – Sterling
  Countertops – Light Grey
  Accent Panels – Platinum
  Headliner – Off-White
  Baseboards, trims and bathroom doors – Brown greyish
  Outside Upholstery – Titanium
  Flexiteek – Weathered with white caulking
  MASTER CABIN
  Leather pouch (9in wide x 7in tall; bottom of pouch positioned 22in from ceiling of cabin, it lines up with line dividing two accent panels in the head board of the beds) attached to headliner on outboard side of master cabin – made to store phone, iPad, earphones, small charger…
  Bookshelf above vanity table in master cabin
  MASTER BATHROOM
  Intstall double tower rack
  Bench seat outside of shower in Light Grey
  PORT CABINS
  Port Bathrooms – Solid light frosting (similar to X5) all around for complete privacy when someone is using the head/toilet
  Port Bathrooms (for both bathrooms) – Install double towel rack
  Port aft cabin only – Leather pouch (9in wide x 7in tall; bottom of pouch 22in from ceiling of cabin, it lines up with line dividing two accent panels in the head board of the beds) attached to headliner on outboard side of master cabin – made to store phone, iPad, earphones, small charger…
  SALOON
  Main table that can be used as coffee table, daybed and dining table.
  ADDITIONAL ITEMS
  Camera on top of the mast
  Dometic Electric Cooler CFX3 75L, Includes cover and cushion on top
  Fishing rod holders
  Yachtrouter system (wifi/cellular booster)
  Extra backrest at helm
  Parasailor pre-install (only the fixed hardware)
  Ethernet cables from Yacht router to both TVs
  Dinghy and full setup with 1st aid kit and mini fire extinguisher
  Fully equipped galley with breadmaker, toaster, blender, instant pot, vacuum sealer, soda stream, pots and pans, plates, bowls, cups, cutlery, etc.
  Fishing gear

• HULL AND APPENDAGES

  The hull is of sandwich composite construction using Quadriaxial stitched fabrics, Divinicell composite PVC foam and Epoxy Vinyl Ester resin. This gives a stiff laminate with excellent strength and lightweight properties
  The engine beds are of GRP and bonded to the hull
  Sea-cocks under water line are Marelon and located in accessible positions
  Hose connections to inboard side of stainless steel sea-cocks have two stainless steel hose clamps
  For osmosis protection an ISO / NPG Gelcoat is used
  Standard Gelcoat colour is white
  Rudders are solid GRP boasting a 55mm solid stainless steel shaft with hydraulic steering system
  Structural bulkheads are a combination of 80 density foam and Lloyds Marine ply wood hand laminated to hull and deck
  Bulkhead thickness is 24mm for ply wood and 28mm for foam core
  Dedicated collision bulkheads at bow, at transom (to protect the engines) and at the bottom section of each keel
  Underwater epoxy – Antifouling application

• DECK AND FITTINGS

  The deck is of sandwich composite construction using Quadriaxial-stitched fabrics with 80 density foam of appropriate thickness as the core
  High density material under all deck fittings with stainless steel backing plates
  Deck surface has a moulded diamond patterned non-slip finish
  Standard Gelcoat colour is white
  Electric under deck horizontal anchor windlass 24V/1500W with wired remote in foredeck anchor locker
  Large anchor cleat mounted in anchor locker
  Stainless steel anchor swivel with twin nylon anchor roller inside anchor locker
  Anchor – Delta 50kg, 75m of 10mm chain, 100m 16mm warp
  Stainless steel shroud chain plates are bolted to hull in area of structural bulkheads
  Two recessed water tank fillers fitted on coachroof so as to act as rain water collection points
  Two Diesel fillers fitted on aft top transom step
  Breathers exit above deck level
  2 x 110v Electricity dock inlets on transom with shore power leads
  1 x 220v Electricity dock inlet on transom with shore power lead
  Electrical stainless steel gooseneck at mast
  Fore deck hatches for storage with recessed and lockable stainless steel catches with stainless steel gas struts
  Large access opening deck hatch on port foredeck peak gives access to white flow coated locker with ladder going down into locker
  Cabin windows straight laminated glass panels with ceramic borders for UV protection
  Steaming lights on crossbeam A-frame, mast and aft targa
  Tow rail is incorporated into the deck with dedicated mounting areas for stanchions
  Two pull-pits with white moulded GRP seats
  Side railings with mid gate in solid stainless steel tubing with middle stainless steel wire. Railing height 720mm
  8 x Large mooring cleats for marina berthing
  2 x Transom cleats on inner hull
  Electric Roller furling self tacking Jib with curved traveller situated in front of mast step with jib sheet led aft to winch in cockpit
  Complete main-sheeting system with blocks led aft to winch in cockpit
  All lines from mast and sailing gear led aft to two main electric winches
  Sliding aluminium entrance door with 6.5mm laminated clear glass with lock
  Recessed sliding door grating in cockpit floor
  Fire extinguisher in cockpit
  Wet and dry lockers in cockpit for storage
  Large teak cockpit table incorporating world map in black polyurethane on fixed aluminum legs
  Small teak cockpit table on adjustable single aluminum leg enabling to be converted to a bed
  Wet bar in cockpit incorporating solid surfacing counter top with under mounted GRP sink and mixer tap
  Fridge for cockpit – Vitrifrigo C 60iX 60Ltr
  Drinks cupboard with shelves and bottle storage in wet bar with acrylic door and LED lights
  Overhead recessed LED cockpit lights
  Blue and red exterior courtesy floor lighting
  X5 LED backlit corporate logo on bulkhead in cockpit
  All lockers are self-draining and flow coated white
  One anodized aluminium structural cross beam with A-frame through bolted on bow
  Two large open net trampolines lashed to deck
  Stainless steel swimming ladder on Port side with stainless steel handrail up each stepped transom
  Integral complete overhead targa bar with soft furnishing inserts
  Build into the targa on port side a overhead shower with hot and cold water
  Pull out shower with cold and hot water fitted at top of port transom steps
  Fresh water shore connection fitted on port transom step area for connecting ships fresh water system to shore water hose
  Bimini sides and back with mesh windows that can also be closed for privacy, fitted in a recess in overhead moulding for flush look
  Recliner style sunbed on aft deck incorporating stowage underneath – stainless steel railing/cable to prevent person falling overboard
  1 x 12 volt outlet at cockpit table
  1 x 110 volt splash proof outlet at cockpit table
  14 x large, non-opening recessed windows in tinted glass in hull outer sides
  Cockpit and helm cushions including backrests
  Davits on aft sunbed with remote controlled electric winches fitted in sunbed locker. Ropes and blocks included
  Handrails fitted in front top part of targa for extra security when moving up and down deck levels
  Small adjustable LED spotlights fitted on both aft sides of targa to supply light on aft steps and BBQ

• HELM STATION

  All lines led back to helm for easy single handed sailing.
  Winches are 2 speed electric self tailing, size 60
  14 x rope clutches at helm station for clutching sheets, halyards and ropes
  Extra large double seat helm chair with full length padded backrest in cockpit
  Large power dampened compass ahead of helm station in cockpit
  1 x Garmin GMI20 multi display instrument at helm
  1 x Garmin 16″ GPSMAP chart plotter with GPS and remote keypad
  1 x Garmin GMR Fantom 24 Dome Radar with MotionScope
  1 x Garmin autopilot – GHP reactor 12 core pack with GHC20 display
  1 x Garmin wired command mike
  Glass windscreen and extended sliding cloth bimini above helm chair
  Separate moulded instrument module with angled mounting surfaces for instruments and incorporated wireless phone charge station
  Storage locker with lid for ropes below steering wheel
  C-Zone switch panel to control various systems from helm
  1 x 12V outlet and 1 x USB outlet
  Second control with chain counter for windlass operation at cockpit
  Engine instrumentation, electronic throttle and gear controls
  800mm, Black composite three spoke race look helm wheel
  Handrail fitted below stbd winch for easy and safe access to helm station
  Dedicated storage area for small items like phones, binoculars etc.
  Red/white light fitted at helm to provide light at night

• RIGGING AND SAILS

  Spars by Sparcraft S.A.
  Spars built of extruded aluminium and anodised silver-grey
  Single spreader fractional rig with internal wiring shielded in PVC tube secured to mast
  Mast grounded through shrouds/chain plates to copper grounding plates in keels
  Batten car system for mainsail
  Boom, standing and running rigging
  Shrouds have chafe guards
  Flag halyards from bottom spreader
  Furling system for headsails
  Navigation, deck and anchor lights
  VHF aerial on top of mast.
  Sails by North Sails – Full batten mainsail with three reefs totalling 100m²
  Stack pack with corporate logo
  2 x mainsail lazy-Jacks
  1 x mainsail halyard – 12mm Spectra
  1 x Genoa furler halyard – 8mm Spectra with Bow Shackle and sliding adjuster on mast
  1 x Jib furler halyard – 8mm Spectra with Bow Shackle and sliding adjuster on mast
  1 x Spinnaker / Code 0 halyard -12mm Spectra
  1 x Self tacking Jib sheet – 12mm Spectra
  1 x Main boom topping lift – 12mm Braid
  1 x Mainsheet sheet – 12mm Spectra
  1 x Reefline no1 – 12mm Spectra
  1 x Reefline no2 – 12mm Spectra
  1 x Reefline no3 – 12mm Spectra
  1 x Fixed outhaul – 12mm Spectra
  2 x Mainsail traveller car control lines – 10mm braid
  2 x Genoa sheets – 12mm Super Braid
  Electric Furling 40m² Self taking Jib with UV including deck hardware
  Electric Furling 60m² Genoa with UV including deck hardware

• INTERIOR FINISHES

  All joinery work and finishing in the living areas is done in accordance with the best yacht practice, using first-grade marine materials
  All cupboard locker doors and drawers fitted with stylish pelican hook type catches in satin chrome finish
  All cupboard locker doors and drawers fitted with soft close hinges and drawer slides
  All Veneer and solid wood are of (wood to be confirmed) with a matt polyurethane acrylic lacquer for a professional and durable finish
  Interior of all cupboards where possible have lined or painted surface
  Ceilings and topside linings in (colour to be confirmed) soft touch leather furnishings
  (Colour to be confirmed) laminated hi wear flooring throughout
  Cabin mattresses is 120mm – multilayer foam with several densities covered with fabric
  Basin units, basins and galley tops made from Corian solid surfacing (colour to be confirmed)

• SALOON

  Large saloon area with 360 degree panoramic view
  75mm raised headroom
  Incorporated opening portholes in forward facing windows for ventilation
  U-shaped settee with cloth upholstery (colour to be confirmed)
  Large, convertible saloon table with internal 110V outlet for printer
  Combination shade-mosquito screens for opening deck hatches – Goiot
  Pleated blinds for saloon cabin windows
  Storage compartments under saloon seating
  Overhead stylish LED recessed ceiling lights
  Light switches to operate and dim light output
  3 x large opening deck hatches
  Locking Sliding aluminium door with open/closed positions
  Escape hatch in saloon floor with sand blasted glass ‘world map’ logo
  Sliding window to cockpit
  Laminated flooring throughout
  110V outlets
  1 x Cabin fan
  2 x 10000 BTU Inverter BLDC self-contained air con units with outlets at nav and settee

• ENTERTAINMENT AREA

  Typical area headroom is an average of 2,05m
  Large U-shaped cupboard unit with entertainment equipment and storage drawers
  1 x 32″ LED smart television on TV lift system that can rotate from 0 to 90 degrees
  Large vertical cupboard housing refrigeration/freezer unit with small storage cupboard on the side
  24V compressor driven door fridge-capacity 157L combined with a 2 drawer deep freezer – capacity 144L with incorporated ice maker

• GALLEY AND PANTRY

  Typical area headroom is an average of 2,05m
  Galley in main saloon to Port with direct access to cockpit
  Large L-shaped counter top in solid surfacing with double under counter sink with chromed professional mixer tap
  Drinking water tap hooked to ice maker filter system
  Large double drawers under sink unit with heavy duty drawer slides
  Integrated dish draining area
  Large cupboard doors with storage
  One set of drawers
  Drawer for spice and condiments
  Rubbish bin in dedicated drawer for easy access
  2 x Double domino style induction hobs with pot holders
  Extraction system above hob
  Speed oven with grill (convection microwave)
  Large Island unit with solid surfacing
  Large single cupboard
  Recessed overhead LED lighting
  Light switch and dimmer for overhead lighting
  Laminated flooring
  Numerous 110v outlets
  Fire extinguisher
  Fire blanket

• NAVIGATION STATION

  75mm raised headroom
  Very good 360 degree visibility due to large cabin windows
  Overhead recessed LED lighting
  Office chair at navigation station
  iPad with LaunchPort docking station and sleeve
  1 x 110v outlet fitted on countertop
  1 x Cabin fan
  Chart light
  L-shaped nav desk with large countertop with incorporated wireless phone charging
  Numerous cupboards with doors and drawers
  Fire extinguisher

  MOUNTED IN A PRACTICAL AND NEAT ARRANGEMENT INTO A STYLISH AND MODERN DASHBOARD ARE THE BELOW MENTIONED EQUIPMENT

  Custom designed switchboard with digital switching switches
  Mastervolt Easy View digital monitoring screen for selected onboard electrical equipment and charging systems
  1 x 12V outlet
  Garmin VHF radio with AIS receiver
  Fusion Apollo 770 music system with 4 x MS-FR7021 7″ 260watt marine speakers (two in saloon and two in cockpit)
  1 x 110V outlet
  Spectra water maker control panel
  Fischer Panda generator control panel
  Port and stbd saloon air conditioner control panels
  Le Grand USB(x3) outlets

• 2 X PORT HULL GUEST CABINS

  Typical area headroom is an average of 2m
  Access to each of the cabins is from the saloon by a companionway. Privacy is provided by a cabin door leading to each cabin
  Large 1.95m x 1.4m bed with soft furnished headboard
  Island style bed with steps up each side giving separate access
  Recessed bookshelf with cabinet and wardrobe
  Extra large storage under bed with drawers
  Dressing table with drawers underneath
  Larger overhead opening deck hatches facing forward for better natural ventilation
  Combination shade-mosquito screens for opening deck hatches – Goiot
  Several large non opening hull windows
  Reading lights with built in USB outlets, overhead recessed ceiling lights, all LED
  Switch for cabin lights
  Fire extinguisher
  Laminated flooring throughout
  110v outlets with 1 x USB outlet close to bed
  1 x Cabin fan (each cabin)
  Pleated blinds for hull cabin windows
  1 x 7000 BTU Inverter BLDC self-contained air con unit (per cabin) with one upper level outlet for each cabin. Control panel is fitted at bunk for easy access

• 2 X PORT HULL GUEST EN-SUITE BATHROOMS

  Bathroom enclosed with clear acrylic with sandblast vinyl design and dual purpose door
  Electric toilet
  Solid surfacing counter top with integrated washbasin
  Pressurized hot and cold water professional mixer tap
  Cupboard and storage underneath
  Overhead mirror storage unit for bathroom accessories. Now with increased headroom over basin area
  Opening deck hatch for ventilation
  Combination shade-mosquito screens for opening deck hatches – Goiot
  Area 1 non opening port light
  Towel rail, soap holder and toilet paper holder

• 1 X ENTIRE STARBOARD HULL OWNERS CABIN WITH EN-SUITE BATHROOM

  Typical area headroom is an average of 2m
  Access to the owners hull is from the saloon by a companionway and privacy is provided by a large wooden sliding door
  Large solid surfacing counter top with integral “his” and “hers” double basins
  Professional hot and cold mixer taps
  Cupboards underneath for storage
  Large mirror units above with storage for bathroom accessories
  Electric toilet
  110V waterproof outlet
  Washer drier mounted in dedicated cupboard with removable shelves above
  A fully enclosed large shower moulding with Acrylic opening door and seat
  Opening deck hatch for ventilation
  Combination shade-mosquito screens for opening deck hatches – Goiot
  Large non opening hull window
  Towel rail, soap holder and toilet paper holder
  Overhead recessed LED lighting
  Extra large dressing table with built in drawers and Ottoman style seat
  110V outlets with 1 x USB outlet close to bed
  Extra large wardrobes with hanging locker and shelves
  Electronic safe installed in main wardrobe
  Large Dresser unit with cupboards for storage
  Double settee/lounger with storage underneath
  King-size 1.95m x 1.4m bed with soft furnished headboard
  Island style bed with steps up each side giving separate access
  4 x large non opening vertical windows on outboard hull next to bed giving lots of light and vision
  Pleated blinds for hull cabin windows
  Extra large storage under bed with drawers
  Recessed bookshelf with shelf and cupboards on inboard side next to bed
  Larger overhead opening forward facing deck hatch for better natural ventilation
  Light switch and for cabin lights
  1 x Cabin fan
  1 x 10 000 BTU Inverter BLDC self-contained air con unit with two upper level outlets. Control panel is fitted at bunk for easy access during night
  2 x Fire extinguishers

• ENGINES AND ENGINE ROOM

  Access to the engine rooms is via 2 specially moulded large hatches in the aft cockpit floor
  These hatches are lockable and feature gas struts
  Two x Yanmar Marine diesel engines Model 4JH80-TE (80HP at 3200RPM) with SD60-T sail drive units, both freshwater cooled, Stbd side coupled via the heat exchanger to a 60L Calorifier for hot water
  Each engine is mounted on a specially moulded bed
  Each engine is fitted with an additional 24V/110A High Output Mastervolt Alternator for charging the Li-Ion House Batteries trough a Charge Regulator
  Complete passive ventilation system
  Wet exhaust system including water trap, gooseneck and anti-siphon
  Yanmar fixed 3 blade propeller
  Fuel capacity is 790L, 2 x tanks, 1 for each engine with shut off valve
  Fuel transfer pump to transfer fuel from one tank to another
  Fuel filter/water separator in each engine room
  Fuel tanks vented to deck via a breather with flame arrestor
  Both engines start from a dedicated engine starting battery mounted in a each engine room
  Overhead LED lights in each engine compartment
  1 x 120amp standard alternators fitted by engine manufacturer on each engine for charging dedicated engine start battery
  Engine room soundproofed
  Fireboy automatic fire extinguishing system in each engine room
  2 x Large capacity bilge pump with hi-water alarm in each engine room
  Emergency tiller arm supplied on dedicated brackets in stbd engine room
  Toolbox with assorted tools

• PLUMBING

  All freshwater hoses of re-enforced PVC tubing with “speed fit” connections
  All hot water piping enclosed in a neoprene covering to maintain temperature over long periods of time
  860 L rigid polyethylene water tanks in front lockers for easy removal and cleaning
  Tank vents terminate on deck
  One water heater of 60lt with 110V resistor element. Complete with strainers, check valves and accumulator tank
  All grey water from showers is discharged overboard by a automatic drain pump
  Two large capacity water pressure pumps mounted in front lockers near water tanks with accumulator tank
  Each pump draws water from the appropriate fresh water tank and service the entire boat
  100 Ltr/26.42 US gal/min manual bilge pump, one for each hull
  Outlets are above water level and discharge overboard
  Holding tanks for 3 x toilets
  4 x hi capacity electric bilge pumps with automatic sensors for main bilge area
  Washer drier in forward area of stbd heads. Laundry area includes removable shelves at back of washer dryer.
  Water maker – Newport 400 NP-MK II-400S fully automatic with backwash/fresh water flush – 62Ltr + Connect Controller
  Dishwasher – 45cm D/Washer – 10 place setting
  Connection for hose to hose down chain in windlass locker
  Fresh water filter for ice maker fitted in port engine room
  Drinking water tap in galley hooked to ice maker filter system
  Pull out shower with cold and hot water fitted at top of port transom steps
  Fresh water shore connection fitted on port transom step area for connecting ships fresh water system to shore water hose

• ELECTRICAL

  On board DC electrics are 12/24V with two wire-insulated return
  Wires are sized to minimize voltage drop
  All light current wiring is silicon tinned wiring which is flame proof and does not give off toxic vapours
  All heavy current conductors carrying an excess of 50 Amps are 50-70mm²
  All light current conductors programmed and powered by C-Zone digital switching
  Batteries – the ship’s auxiliary load consists of 20 kWh Mastervolt Li-ion batteries (800Ah at 24V)
  A separate battery is supplied for engine starting
  For good heavy current termination, copper tinned bus bars are used
  A comprehensive DC main digital switching switch panel is located in the Nav Station
  Mastervolt Easyview for battery status monitoring
  AC circuit – including shore power inlet sockets, shore power cord, electrical panel with necessary breakers and earth leakage
  Euro American 2 pin and universal style AC outlets with USB facility fitted at various locations on the vessel
  2 x large under water Zinc anodes fitted to hull. DC and AC are common grounded. Zinc saver
  Charger – 1x Mastervolt Chargmaster 24/110 battery charger
  Generator – Fischer Panda 15000i PMS – 12KW/15KVA variable speed fitted in port engine room with its own sound insulation cover
  Invertor Charger – 2x Mastervolt Mass Combi 24/3000-70 (120V) 6kW total
  Solar panels – 6 x 190 Watt on saloon coach roof with MPPT solar regulator
  Solar panels – 6 x 190 Watt on targa extension with MPPT solar regulator

• SAFETY EQUIPMENT

  8 fenders / 10 x 10m 18mm tie up ropes
  Category 1 offshore safety equipment including 8 man life raft – Viking

Contact Us for further details

Contact Us
