Certified Pre-Owned 2018 X5 “VANQUISH”

is now on sale!

• Certified Pre-Owned
• 90-Day Extended Warranty

• Complete Technical Checkup
• Onboard Training

Unique Extras & New Additional Items!

•
  Summary

•
  Photo Gallery

•
  Specifications

Completely checked and comes with our 90-Day Extended Warranty!

A whole week of onboard training for the new lucky owner!

Xquisite X5 SAIL Specifications & Unique Extras below

Xquisite X5 SAIL Specifications and Unique Extras below

•

  CPO 2018 X5 Exterior

•

  CPO 2018 X5 Exterior

•

  CPO 2018 X5 Exterior

•

  CPO 2018 X5 Exterior

•

  CPO 2018 X5 Exterior

•

  CPO 2018 X5 Exterior

•

  CPO 2018 X5 Exterior

•

  CPO 2018 X5 Exterior

•

  CPO 2018 X5 Exterior

•

  CPO 2018 X5 Exterior

•

  CPO 2018 X5 Exterior

•

  CPO 2018 X5 Exterior

•

  CPO 2018 X5 Exterior

•

  CPO 2018 X5 Exterior

•

  CPO 2018 X5 Exterior

•

  CPO 2018 X5 Exterior

•

  CPO 2018 X5 Exterior

•

  CPO 2018 X5 Exterior

•

  CPO 2018 X5 Interior

•

  CPO 2018 X5 Interior

•

  CPO 2018 X5 Interior

•

  CPO 2018 X5 Interior

•

  CPO 2018 X5 Interior

•

  CPO 2018 X5 Interior

•

  CPO 2018 X5 Interior

•

  CPO 2018 X5 Interior

•

  CPO 2018 X5 Interior

•

  CPO 2018 X5 Interior

•

  CPO 2018 X5 Interior

•

  CPO 2018 X5 Interior

•

  CPO 2018 X5 Interior

•

  CPO 2018 X5 Interior

•

  CPO 2018 X5 Interior

•

  CPO 2018 X5 Interior

•

  CPO 2018 X5

•

  CPO 2018 X5

X5 – VANQUISH – Specs & Extras

•

  LAYOUT

  OWNER VERSION – 3x cabins and 3x en-suite heads/bathrooms

• GENERAL SPECIFICATIONS

  Length overall	15.44 m	50.64 ft
  Length waterline	15.15 m	49.69 ft
  Beam	8 m	24.24 ft
  Draft	1.35 m	4.43 ft
  Bridge deck clearance Light Craft	1 m	3.28 ft
  Mast height above waterline	24 m	78.72 ft
  Sail Area
  Sail Area – Mainsail	100 m²	1076 sf
  Sail Area-Reacher	83 m²	893 sf
  Sail Area-Jib	36 m²	387 sf
  Engines	2 x 80 HP	2 x 80 HP
  Fresh water (4 x 215Ltr tanks)	860 Ltr	226 gal
  Diesel (2 x 395Ltr tanks)	790 Ltr	208 gal
  CE Certified	Category A	Category A
  Displacement (mlcc)	19000 kg	41800 lbs

• UNIQUE EXTRAS

  OPTIONAL EXTRAS AT THE TIM OF BUILD
  Gas BBQ on transom with 3 propane tanks
  Cotton pascale, quilted double bed fitted mattress protectors
  Fendertex inflatable fenders with custom logo (x8 units)
  Canopy shade for foredeck and 2x large bean bags (or foldable deck seats)
  Additional 2nd Garmin GMI 20 repeater screen at helm
  Garmin AIS 600 transceiver
  Garmin Sirius XM receiver
  Iridium Go with external aerial on spreader
  Additional TV in master cabin
  Bose home theater speaker system
  2 x Bose Enviromental speakers to be fitted on underneath of spreaders
  4 x Underwater LED lights
  Flexiteek on cockpit floor, aft deck and transom steps
  Easy Max-Prop 3 blade 20″ – 24 deg pitch (or Gori folding propellers with rope cutters)
  AB 12′ aluminum hull tender with Yamaha 25HP EFI outboard engine with customs bridles for dinghy davits
  Comprehensive spare kit and tools
  ADDITIONAL ITEMS
  2x Dometic portable freezers
  Vitamin Blender
  Sous Vide unit with container
  Steam cleaner
  Fendertex inflatable fenders
  ShopVac
  Canopee foredeck shade with 4 deck chairs
  Pressure washer
  Brownie Air compressor with 60ft hose and 2 regulators
  Starlink satellite internet system
  Sunbrealla covers for all hatches, helm instruments, helm and furlers
  Dinghy cover
  2x inflatable SUPs
  2x fishing rod holders, fishing rods and tackle
  New foam in cockpit cushions
  Fully equipped kitchen and linens for cabins
  2 burner induction cooktop

• HULL AND APPENDAGES

  The hull is of sandwich composite construction using Quadriaxial stitched fabrics, Divinicell composite PVC foam and Epoxy Vinyl Ester resin. This gives a stiff laminate with excellent strength and lightweight properties
  The engine beds are of GRP and bonded to the hull
  Sea-cocks under water line are Marelon and located in accessible positions
  Hose connections to inboard side of stainless steel sea-cocks have two stainless steel hose clamps
  For osmosis protection an ISO / NPG Gelcoat is used
  Standard Gelcoat colour is white
  Rudders are solid GRP boasting a 55mm solid stainless steel shaft with hydraulic steering system
  Structural bulkheads are of Lloyds Marine ply wood construction and hand laminated to hull and deck
  Bulkhead thickness is 24mm
  Dedicated collision bulkheads at bow, at transom (to protect the engines) and at the bottom section of each keel
  Underwater epoxy – Antifouling application

• DECK AND FITTINGS

  The deck is of sandwich composite construction using Quadriaxial-stitched fabrics with end grain Balsa of appropriate thickness as the core
  High density material under all deck fittings with stainless steel backing plates.
  Deck surface has a moulded diamond patterned non-slip finish.
  Standard Gelcoat colour is white.
  Electric under deck horizontal anchor windlass 12v 1500 watt with wired remote in foredeck anchor locker.
  Large anchor cleat mounted in anchor locker.
  Stainless steel anchor swivel with twin nylon anchor roller inside anchor locker.
  Anchor – Delta 50kg, 70m of 10mm chain, 100m 16mm warp
  Stainless steel shroud chain plates are bolted to hull in area of structural bulkheads.
  Two recessed water tank fillers fitted on coachroof so as to act as rain water collection points
  Two Diesel fillers fitted on aft top transom step
  Breathers exit above deck level.
  2 x 110v Electricity dock inlets on transom with shore power leads
  1 x 220v Electricity dock inlet on transom with shore power lead
  Electrical stainless steel gooseneck at mast.
  Furling line lead blocks leading control lines back to cockpit
  Fore deck hatches for storage with recessed and lockable stainless steel catches with stainless steel gas struts
  Large access opening deck hatch on port foredeck peak gives access to white flow coated locker with ladder going down into locker.
  Cabin windows, non-opening, in tinted glass.
  Two x 5kg composite gas bottles with LP regulator and pressure gauge in self-ventilating gas locker in cockpit seat.
  Steaming lights on crossbeam A-frame, mast and aft targa
  Stainless steel toe rail covering hull deck bond.
  Two pull-pits with white moulded GRP seats
  Side railings with mid gate in solid stainless steel tubing with middle stainless steel wire. Railing height 720mm
  8 x Large mooring cleats for marina berthing.
  2 x Transom cleats on inner hull
  Roller furling self tacking Jib with curved traveller situated in front of mast step with furler control line and jib sheet led aft to winch in cockpit
  Complete main-sheeting system with blocks led aft to winch in cockpit.
  All lines from mast and sailing gear led aft in recessed deck moulding with cover plates
  Sliding aluminium entrance door with 6.5mm laminated clear glass with lock
  Recessed sliding door grating in cockpit floor.
  Fire extinguisher in cockpit
  Wet and dry lockers in cockpit for storage.
  Large teak cockpit table incorporating world map in black polyurethane on fixed aluminum legs.
  Small teak cockpit table on adjustable single aluminum leg enabling to be converted to a bed
  Wet bar in cockpit incorporating solid surfacing counter top with under mounted GRP sink and mixer tap
  Fridge for cockpit – Vitrifrigo C 60iX 60Ltr
  Drinks cupboard with shelves and bottle storage in wet bar with acrylic door and LED lights
  Overhead recessed LED cockpit lights
  Blue exterior courtecy floor lighting
  X5 LED backlit corporate logo on bulkhead in cockpit
  All lockers are self-draining and flow coated white
  One anodized aluminium structural cross beam with A-frame through bolted on bow.
  Two large open net trampolines lashed to deck.
  Stainless steel swimming ladder on Port side with stainless steel handrail up each stepped transom.
  Integral complete overhead targa bar with soft furnishing inserts
  Build into the targa on port side a overhead shower with hot and cold water
  Bimini sides and back with mesh windows that can also be closed for privacy, fitted in a recess in overhead moulding for flush look
  Recliner style sunbed on aft deck incorporating stowage underneath – stainless steel railing/cable to prevent person falling overboard
  1 x 12 volt outlet at cockpit table
  1 x 110 volt splash proof outlet at cockpit table
  14 x large, non-opening recessed windows in tinted glass in hull outer sides
  Cockpit and helm cushions including backrests
  Davits on aft sunbed with remote controlled electric winches fitted in sunbed locker. Ropes and blocks included. (Manual override)

• HELM STATION

  All lines led back to helm for easy single handed sailing
  Winches are 2 speed electric self tailing, size 60
  14 x rope clutches at helm station for clutching sheets, halyards and ropes
  Second control (switch only) for windlass operation at cockpit
  Extra large double seat helm chair with padded backrest in cockpit
  Large power dampened compass ahead of helm station in cockpit.
  Engine instrumentation, manual throttle and gear controls
  700mm, Stainless steel helm wheel
  1 x Garmin GMI20 multi display instrument at helm
  1 x Garmin 16″ GPSMAP chart plotter with GPS and remote keypad
  1 x Garmin GMR 24X HD 36 mile – 4KW radar
  1 x Garmin autopilot – GHP reactor 12 core pack with GHC20 display
  1 x Garmin GHS10 wired command mike
  Glass windscreen and extended sliding cloth bimini above helm chair
  Separate moulded instrument module with angled mounting surfaces for instruments and incorporated cup holder
  Storage locker with lid for ropes below steering wheel
  C-Zone switch panel to control various systems from helm
  1 x 12V outlet and 1 x USB outlet
  Second control with chain counter for windlass operation at cockpit
  Engine instrumentation, electronic throttle and gear controls
  800mm, Black composite three spoke race look helm wheel

• RIGGING AND SAILS

  Spars by Sparcraft S.A.
  Spars built of extruded aluminium and anodised silver-grey.
  Single spreader fractional rig with internal wiring shielded in PVC tube secured to mast.
  Mast grounded through shrouds/chain plates to copper grounding plates in keels
  Batten car system for mainsail
  Boom, standing and running rigging.
  Shrouds have chafe guards
  Flag halyards from bottom spreader
  Furling system for headsails.
  Navigation, deck and anchor lights
  VHF aerial on top of mast.
  Sails by North Sails – Full batten mainsail with three reefs totalling 100m²
  Stack pack with corporate logo.
  2 x mainsail lazy-Jacks
  1 x mainsail halyard – 14mm Spectra
  1 x Reacher furler halyard – 8mm 7×19 wire with short braid section and sliding adjuster on mast
  1 x Jib furler halyard – 8mm 7×19 wire with short braid section and sliding adjuster on mast
  1 x Spinnaker halyard – 12mm Spectra
  1 x Self tacking Jib sheet – 12mm Spectra
  1 x Main boom topping lift – 12mm Braid
  1 x Mainsheet sheet – 12mm Spectra
  1 x Reefline no1 – 12mm Spectra
  1 x Reefline no2 – 12mm Spectra
  1 x Reefline no3 – 12mm Spectra
  1 x Fixed outhaul – 12mm Spectra
  2 x Mainsail traveller car control lines – 10mm braid
  2 x Reacher sheets – 14mm Spectra
  Furling 36m² Self taking Jib with UV including deck hardware
  Furling 83m² Reacher with UV including deck hardware
  1 x Reacher furling line – 10mm Spectra Braid
  1 x Jib furling line – 10mm Spectra Braid

• INTERIOR FINISHES

  All joinery work and finishing in the living areas is done in accordance with the best yacht practice, using first-grade marine materials.
  All Veneer and solid wood are of V20 Oak limed wash 178.42 with a matt polyurethane acrylic lacquer for a professional and durable finish.
  Interior of all cupboards where possible have lined or painted surface
  Ceilings and topside linings in light cream soft touch leather furnishings
  Dark brown plastic laminated hi wear flooring throughout
  Cabin mattresses is 120mm – multilayer foam with several densities covered with fabric.
  Basin units, basins and galley tops made from Corian solid surfacing

• SALOON

  Large saloon area with 360 degree panoramic view
  U-shaped settee with cloth upholstery
  Large, convertable saloon table with internal 110V outlet for printer
  Combination shade-mosquito screens for opening deck hatches – Goiot
  Pleated blinds for saloon cabin windows
  Storage compartments under saloon seating
  Overhead stylish LED recessed ceiling lights.
  Light switches to operate and dim light output
  3 x large opening deck hatches
  Locking Sliding aluminium door with open/closed positions (Titanium finish)
  Escape hatch in saloon floor with sand blasted glass ‘world map’ logo
  Sliding window to cockpit.
  Laminated flooring throughout.
  110V outlets
  1 x Cabin fan – Hella Turbo 2
  2 x 12 000 BTU air con units with outlets at nav and settee

• ENTERTAINMENT AREA

  Large U-shaped cupboard unit with entertainment equipment and storage drawers
  1 x 40″ LED smart television with built in media player on TV lift system
  Large vertical cupboard housing refrigiration/freezer unit with small storage cupboard on the side
  12v compressor driven door fridge-capacity 157L combined with a 2 drawer deep freezer – capacity 144L with incorporated ice maker

• GALLEY AND PANTRY

  Galley in main saloon to Port with direct access to cockpit
  Large L-shaped counter top in solid surfacing with double under counter sink with chromed professional mixer tap
  Large double drawers under sink unit with heavy duty drawer slides
  Integrated dish draining area.
  Large cupboard doors with storage
  One set of drawers.
  Drawer for spice and condiments
  Rubbish bin in dedicated drawer for easy access
  Four-burner gas hob with flame failure device and pot holders.
  Extraction system above hob
  Speed oven with grill (convection microwave)
  Large Island unit with solid surfacing
  Large single cupboard
  Recessed overhead LED lighting.
  Light switch and dimmer for overhead lighting
  Electronic Gas shut off valve/alarm with 1 x sniffer
  Laminated flooring.
  Numerous 110v outlets
  Fire extinguisher
  Fire blanket

• NAVIGATION STATION

  Situated in port front section of saloon and forward facing.
  Very good 360 degree visibility due to large cabin windows
  Mounted in a console is a custom designed switchboard with digital switching switches and digital battery monitoring system
  L-shaped nav desk with large countertop
  Numerous cupboards with doors and drawers.
  1 x 110v outlet and 1 x 110v outlet with USB
  1 x 12 volt outlet
  Chart light
  Overhead recessed LED lighting
  Fire extinguisher
  1 x Garmin 300 VHF radio with AIS receiver
  1 x Fusion MS IP 700i series music system with 4 x MS-FR7021 7″ 260watt marine speakers (two in saloon and two in cockpit)
  Office chair at navigation station
  iPad with LaunchPort docking station and sleeve
  Le Grand USB (x3) outlet fitted to dashboard

• 2 X PORT HULL GUEST CABINS

  Access to each of the cabins is from the saloon by a companionway. Privacy is provided by a cabin door leading to each cabin
  Large 1.95m x 1.4m bed with soft furnished headboard.
  Island style bed with steps up each side giving separate access.
  Recessed bookshelf with cabinet and wardrobe
  Extra large storage under bed with drawers
  Dressing table with drawers underneath.
  Overhead opening deck hatch for ventilation
  Combination shade-mosquito screens for opening deck hatches – Goiot
  Several large non opening hull windows.
  Reading lights, overhead recessed ceiling lights, all LED
  Switch for cabin lights
  Fire extinguisher
  Laminated flooring throughout.
  110v outlets with 1 x USB outlet close to bed
  1 x Cabin fan – Hella Turbo 2 (each cabin)
  Pleated blinds for hull cabin windows
  1 x 8000 BTU air con unit (per cabin) with one upper level outlet for each cabin

• 2 X PORT HULL GUEST EN-SUITE BATHROOMS

  Bathroom enclosed with clear acrylic with sandblast vinyl design and dual pupose door
  Electric toilet
  Solid surfacing counter top with integrated washbasin
  Pressurized hot and cold water professional mixer tap.
  Cupboard and storage underneath
  Overhead mirror unit with storage for bathroom accessories
  Opening deck hatch for ventilation.
  Combination shade-mosquito screens for opening deck hatches – Goiot
  Opening Area 1 non opening port light
  Towel rail, soap holder and toilet paper holder

• 1 X ENTIRE STARBOARD HULL OWNERS CABIN WITH EN-SUITE BATHROOM

  Access to the owners hull is from the saloon by a companionway and privacy is provided by a large wooden sliding door
  Large solid surfacing counter top with integral “his” and “hers” double basins.
  Professional hot and cold mixer taps
  Cupboards underneath for storage
  Large mirror units above with storage for bathroom accessories
  Electric toilet
  110V waterproof outlet
  Washer drier mounted in dedicated cupboard with removable shelves above
  A fully enclosed large shower moulding with Acrylic opening door and seat
  Opening deck hatch for ventilation.
  Combination shade-mosquito screens for opening deck hatches – Goiot
  Large non opening hull window
  Towel rail, soap holder and toilet paper holder
  Overhead recessed LED lighting
  Extra large dressing table with built in desk with drawers
  110V outlets with 1 x USB outlet close to bed
  Extra large wardrobes with hanging locker and shelves
  Electronic safe installed in main wardrobe
  Large Dresser unit with cupboards for storage
  Double settee/lounger with storage underneath
  King-size 1.95m x 1.4m bed with soft furnished headboard.
  Island style bed with steps up each side giving separate access.
  4 x large non opening vertical windows on outboard hull next to bed giving lots of light and vision
  Pleated blinds for hull cabin windows
  Extra large storage under bed with drawers
  Recessed bookshelf with shelf and cupboards on inboard side next to bed
  Overhead opening deck hatch
  Light switch and for cabin lights
  1 x Cabin fan – Hella Turbo 2
  1 x 12 000 BTU air con unit with two upper level outlets

• ENGINES AND ENGINE ROOM

  Access to the engine rooms is via 2 specially moulded large hatches in the aft cockpit floor.
  These hatches are lockable and feature gas struts
  Two x Yanmar Marine diesel engines Model 4JH80-TE (80HP at 3200RPM) with SD60-T sail drive units, both freshwater cooled, Stbd side coupled via the heat exchanger to a 60L Calorifier for hot water.
  Each engine is mounted on a specially moulded bed.
  Complete passive ventilation system
  Wet exhaust system including water trap, gooseneck and anti-siphon.
  Yanmar fixed 3 blade propeller
  Fuel capacity is 790L, 2 x tanks, 1 for each engine with shut off valve.
  Fuel transfer pump to transfer fuel from one tank to another
  Fuel filter/water separator in each engine room
  Fuel tanks vented to deck via a breather with flame arrestor.
  Both engines start from a dedicated engine starting battery mounted in a each engine room.
  Overhead LED lights in each engine compartment.
  2 x 120amp standard alternators fitted by engine manufacturer
  Engine room soundproofed
  Fireboy automatic fire extinguishing system in each engine room
  2 x Large capacity bilge pump with hi-water alarm in each engine room
  Emergency tiller arm supplied on dedicated brackets in stbd engine room.
  Toolbox with assorted tools

• PLUMBING

  All freshwater hoses of re-enforced PVC tubing with “speed fit” connections.
  All hot water piping enclosed in a neoprene covering to maintain temperature over long periods of time
  860 L rigid polyethylene water tanks in front lockers for easy removal and cleaning.
  Tank vents terminate on deck
  One water heater of 60lt with 110V resistor element. Complete with strainers, check valves and accumulator tank.
  All grey water from showers is discharged overboard by a automatic drain pump
  Two large capacity water pressure pumps mounted in front lockers near water tanks with accumulator tank
  Each pump draws water from the appropriate fresh water tank and service the entire boat.
  100 Ltr/26.42 US gal/min manual bilge pump, one for each hull.
  Outlets are above water level and discharge overboard.
  Holding tanks for 3 x toilets.
  4 x hi capacity electric bilge pumps with automatic sensors for main bilge area.
  Washer drier in forward area of stbd heads. Laundry area includes removable shelves at back of washer dryer.
  Water maker – Newport 400 NP-MK II-400S fully automatic with backwash/fresh water flush – 62Ltr + Connect Controller
  Dishwasher – 45cm D/Washer – 10 place setting
  Connection for hose to hose down chain in windlass locker
  Fresh water filter for ice maker fitted in cupboard next to fridge

• ELECTRICAL

  On board DC electrics are 12V with two wire-insulated return.
  Wires are sized to minimize voltage drop.
  All light current wiring is silicon tinned wiring which is flame proof and does not give off toxic vapours
  All light current conductors carrying an excess of 50 Amps are 50-70mm².
  All light current conductors programmed and powered by C-Zone digital switching
  Batteries – the ship’s auxiliary load consists of 6 x 750 Ahr 2V Gel batteries
  A separate battery is supplied for engine starting.
  For good heavy current termination, copper tinned bus bars are used.
  A comprehensive DC main digital switching switch panel is located in the Nav Station.
  Mastervolt Easyview for battery status monitoring
  AC circuit – including shore power inlet sockets, shore power cord, electrical panel with necessary breakers and earth leakage.
  Euro American 2 pin and universal style AC outlets with USB facility fitted at various locations on the vessel
  2 x large under water Zinc anodes fitted to hull. DC and AC are common grounded. Zinc saver
  Charger – 1 x Mastervolt Chargmaster 12/100-3 100amp battery charger
  Genset – Fischer Panda 15000i PMS – 12KW/15KVA variable speed
  Invertor Charger – Mastervolt Mass Combi 12/2500-120V/60HZ

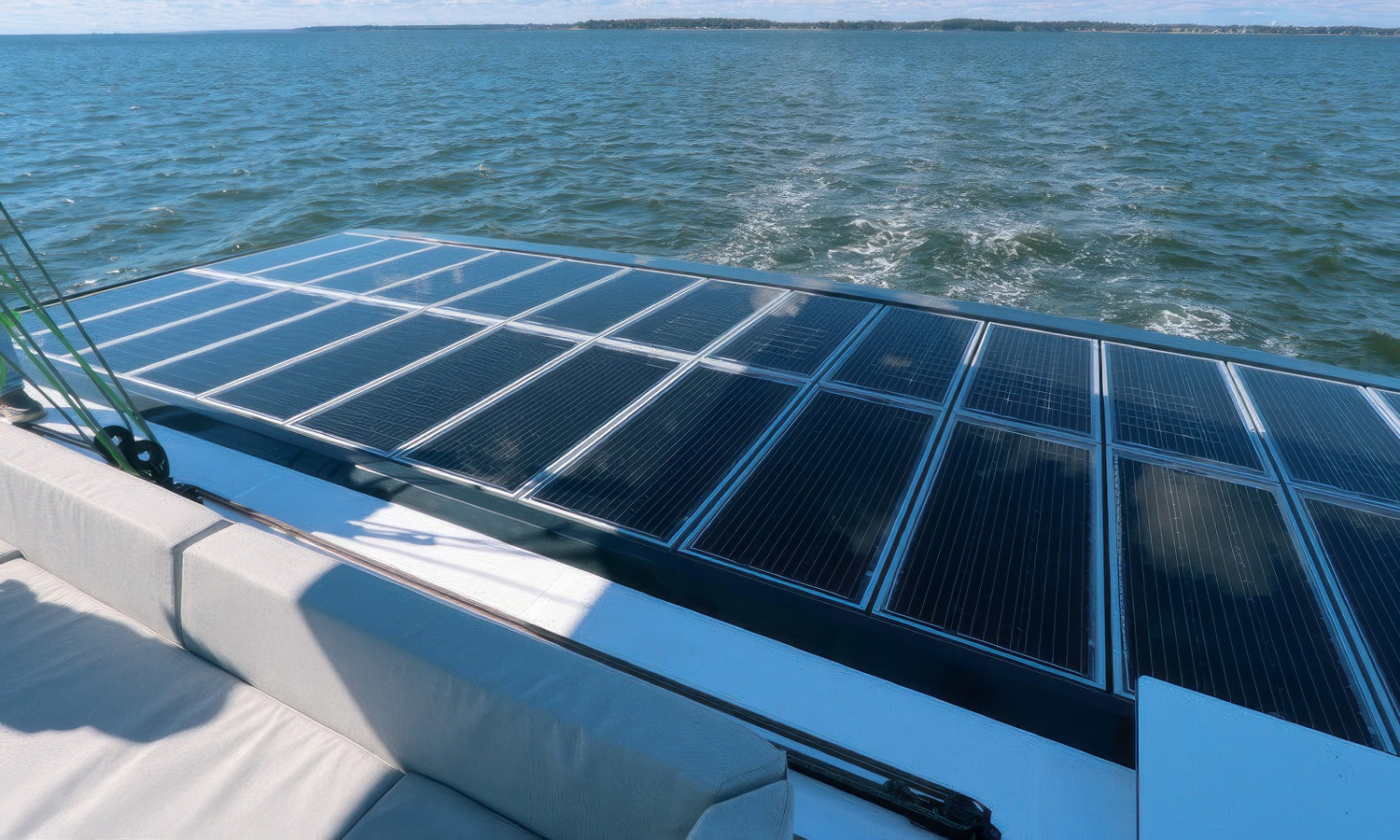

  Solar panels – 6 x 145 Watt on saloon coachroof with 1 x 60 Amp Mastervolt MPPT solar regulator

• SAFETY EQUIPMENT

  8 fenders / 10 x 10m 18mm tie up ropes
  Category 1 offshore safety equipment including 8 man life raft – Viking

•

  LAYOUT

  OWNER VERSION – 3x cabins and 3x en-suite heads/bathrooms

• GENERAL SPECIFICATIONS

  Length overall	15.44 m	50.64 ft
  Length waterline	15.15 m	49.69 ft
  Beam	8 m	24.24 ft
  Draft	1.35 m	4.43 ft
  Bridge deck clearance Light Craft	1 m	3.28 ft
  Mast height above waterline	24 m	78.72 ft
  Sail Area
  Sail Area – Mainsail	100 m²	1076 sf
  Sail Area-Reacher	83 m²	893 sf
  Sail Area-Jib	36 m²	387 sf
  Engines	2 x 80 HP	2 x 80 HP
  Fresh water (4 x 215Ltr tanks)	860 Ltr	226 gal
  Diesel (2 x 395Ltr tanks)	790 Ltr	208 gal
  CE Certified	Category A	Category A
  Displacement (mlcc)	19000 kg	41800 lbs

• UNIQUE EXTRAS

  OPTIONAL EXTRAS AT THE TIM OF BUILD
  Gas BBQ on transom with 3 propane tanks
  Cotton pascale, quilted double bed fitted mattress protectors
  Fendertex inflatable fenders with custom logo (x8 units)
  Canopy shade for foredeck and 2x large bean bags (or foldable deck seats)
  Additional 2nd Garmin GMI 20 repeater screen at helm
  Garmin AIS 600 transceiver
  Garmin Sirius XM receiver
  Iridium Go with external aerial on spreader
  Additional TV in master cabin
  Bose home theater speaker system
  2 x Bose Enviromental speakers to be fitted on underneath of spreaders
  4 x Underwater LED lights
  Flexiteek on cockpit floor, aft deck and transom steps
  Easy Max-Prop 3 blade 20″ – 24 deg pitch (or Gori folding propellers with rope cutters)
  AB 12′ aluminum hull tender with Yamaha 25HP EFI outboard engine with customs bridles for dinghy davits
  Comprehensive spare kit and tools
  ADDITIONAL ITEMS
  2x Dometic portable freezers
  Vitamin Blender
  Sous Vide unit with container
  Steam cleaner
  Fendertex inflatable fenders
  ShopVac
  Canopee foredeck shade with 4 deck chairs
  Pressure washer
  Brownie Air compressor with 60ft hose and 2 regulators
  Starlink satellite internet system
  Sunbrealla covers for all hatches, helm instruments, helm and furlers
  Dinghy cover
  2x inflatable SUPs
  2x fishing rod holders, fishing rods and tackle
  New foam in cockpit cushions
  Fully equipped kitchen and linens for cabins
  2 burner induction cooktop

• HULL AND APPENDAGES

  The hull is of sandwich composite construction using Quadriaxial stitched fabrics, Divinicell composite PVC foam and Epoxy Vinyl Ester resin. This gives a stiff laminate with excellent strength and lightweight properties
  The engine beds are of GRP and bonded to the hull
  Sea-cocks under water line are Marelon and located in accessible positions
  Hose connections to inboard side of stainless steel sea-cocks have two stainless steel hose clamps
  For osmosis protection an ISO / NPG Gelcoat is used
  Standard Gelcoat colour is white
  Rudders are solid GRP boasting a 55mm solid stainless steel shaft with hydraulic steering system
  Structural bulkheads are of Lloyds Marine ply wood construction and hand laminated to hull and deck
  Bulkhead thickness is 24mm
  Dedicated collision bulkheads at bow, at transom (to protect the engines) and at the bottom section of each keel
  Underwater epoxy – Antifouling application

• DECK AND FITTINGS

  The deck is of sandwich composite construction using Quadriaxial-stitched fabrics with end grain Balsa of appropriate thickness as the core
  High density material under all deck fittings with stainless steel backing plates.
  Deck surface has a moulded diamond patterned non-slip finish.
  Standard Gelcoat colour is white.
  Electric under deck horizontal anchor windlass 12v 1500 watt with wired remote in foredeck anchor locker.
  Large anchor cleat mounted in anchor locker.
  Stainless steel anchor swivel with twin nylon anchor roller inside anchor locker.
  Anchor – Delta 50kg, 70m of 10mm chain, 100m 16mm warp
  Stainless steel shroud chain plates are bolted to hull in area of structural bulkheads.
  Two recessed water tank fillers fitted on coachroof so as to act as rain water collection points
  Two Diesel fillers fitted on aft top transom step
  Breathers exit above deck level.
  2 x 110v Electricity dock inlets on transom with shore power leads
  1 x 220v Electricity dock inlet on transom with shore power lead
  Electrical stainless steel gooseneck at mast.
  Furling line lead blocks leading control lines back to cockpit
  Fore deck hatches for storage with recessed and lockable stainless steel catches with stainless steel gas struts
  Large access opening deck hatch on port foredeck peak gives access to white flow coated locker with ladder going down into locker.
  Cabin windows, non-opening, in tinted glass.
  Two x 5kg composite gas bottles with LP regulator and pressure gauge in self-ventilating gas locker in cockpit seat.
  Steaming lights on crossbeam A-frame, mast and aft targa
  Stainless steel toe rail covering hull deck bond.
  Two pull-pits with white moulded GRP seats
  Side railings with mid gate in solid stainless steel tubing with middle stainless steel wire. Railing height 720mm
  8 x Large mooring cleats for marina berthing.
  2 x Transom cleats on inner hull
  Roller furling self tacking Jib with curved traveller situated in front of mast step with furler control line and jib sheet led aft to winch in cockpit
  Complete main-sheeting system with blocks led aft to winch in cockpit.
  All lines from mast and sailing gear led aft in recessed deck moulding with cover plates
  Sliding aluminium entrance door with 6.5mm laminated clear glass with lock
  Recessed sliding door grating in cockpit floor.
  Fire extinguisher in cockpit
  Wet and dry lockers in cockpit for storage.
  Large teak cockpit table incorporating world map in black polyurethane on fixed aluminum legs.
  Small teak cockpit table on adjustable single aluminum leg enabling to be converted to a bed
  Wet bar in cockpit incorporating solid surfacing counter top with under mounted GRP sink and mixer tap
  Fridge for cockpit – Vitrifrigo C 60iX 60Ltr
  Drinks cupboard with shelves and bottle storage in wet bar with acrylic door and LED lights
  Overhead recessed LED cockpit lights
  Blue exterior courtecy floor lighting
  X5 LED backlit corporate logo on bulkhead in cockpit
  All lockers are self-draining and flow coated white
  One anodized aluminium structural cross beam with A-frame through bolted on bow.
  Two large open net trampolines lashed to deck.
  Stainless steel swimming ladder on Port side with stainless steel handrail up each stepped transom.
  Integral complete overhead targa bar with soft furnishing inserts
  Build into the targa on port side a overhead shower with hot and cold water
  Bimini sides and back with mesh windows that can also be closed for privacy, fitted in a recess in overhead moulding for flush look
  Recliner style sunbed on aft deck incorporating stowage underneath – stainless steel railing/cable to prevent person falling overboard
  1 x 12 volt outlet at cockpit table
  1 x 110 volt splash proof outlet at cockpit table
  14 x large, non-opening recessed windows in tinted glass in hull outer sides
  Cockpit and helm cushions including backrests
  Davits on aft sunbed with remote controlled electric winches fitted in sunbed locker. Ropes and blocks included. (Manual override)

• HELM STATION

  All lines led back to helm for easy single handed sailing
  Winches are 2 speed electric self tailing, size 60
  14 x rope clutches at helm station for clutching sheets, halyards and ropes
  Second control (switch only) for windlass operation at cockpit
  Extra large double seat helm chair with padded backrest in cockpit
  Large power dampened compass ahead of helm station in cockpit.
  Engine instrumentation, manual throttle and gear controls
  700mm, Stainless steel helm wheel
  1 x Garmin GMI20 multi display instrument at helm
  1 x Garmin 16″ GPSMAP chart plotter with GPS and remote keypad
  1 x Garmin GMR 24X HD 36 mile – 4KW radar
  1 x Garmin autopilot – GHP reactor 12 core pack with GHC20 display
  1 x Garmin GHS10 wired command mike
  Glass windscreen and extended sliding cloth bimini above helm chair
  Separate moulded instrument module with angled mounting surfaces for instruments and incorporated cup holder
  Storage locker with lid for ropes below steering wheel
  C-Zone switch panel to control various systems from helm
  1 x 12V outlet and 1 x USB outlet
  Second control with chain counter for windlass operation at cockpit
  Engine instrumentation, electronic throttle and gear controls
  800mm, Black composite three spoke race look helm wheel

• RIGGING AND SAILS

  Spars by Sparcraft S.A.
  Spars built of extruded aluminium and anodised silver-grey.
  Single spreader fractional rig with internal wiring shielded in PVC tube secured to mast.
  Mast grounded through shrouds/chain plates to copper grounding plates in keels
  Batten car system for mainsail
  Boom, standing and running rigging.
  Shrouds have chafe guards
  Flag halyards from bottom spreader
  Furling system for headsails.
  Navigation, deck and anchor lights
  VHF aerial on top of mast.
  Sails by North Sails – Full batten mainsail with three reefs totalling 100m²
  Stack pack with corporate logo.
  2 x mainsail lazy-Jacks
  1 x mainsail halyard – 14mm Spectra
  1 x Reacher furler halyard – 8mm 7×19 wire with short braid section and sliding adjuster on mast
  1 x Jib furler halyard – 8mm 7×19 wire with short braid section and sliding adjuster on mast
  1 x Spinnaker halyard – 12mm Spectra
  1 x Self tacking Jib sheet – 12mm Spectra
  1 x Main boom topping lift – 12mm Braid
  1 x Mainsheet sheet – 12mm Spectra
  1 x Reefline no1 – 12mm Spectra
  1 x Reefline no2 – 12mm Spectra
  1 x Reefline no3 – 12mm Spectra
  1 x Fixed outhaul – 12mm Spectra
  2 x Mainsail traveller car control lines – 10mm braid
  2 x Reacher sheets – 14mm Spectra
  Furling 36m² Self taking Jib with UV including deck hardware
  Furling 83m² Reacher with UV including deck hardware
  1 x Reacher furling line – 10mm Spectra Braid
  1 x Jib furling line – 10mm Spectra Braid

• INTERIOR FINISHES

  All joinery work and finishing in the living areas is done in accordance with the best yacht practice, using first-grade marine materials.
  All Veneer and solid wood are of V20 Oak limed wash 178.42 with a matt polyurethane acrylic lacquer for a professional and durable finish.
  Interior of all cupboards where possible have lined or painted surface
  Ceilings and topside linings in light cream soft touch leather furnishings
  Dark brown plastic laminated hi wear flooring throughout
  Cabin mattresses is 120mm – multilayer foam with several densities covered with fabric.
  Basin units, basins and galley tops made from Corian solid surfacing

• SALOON

  Large saloon area with 360 degree panoramic view
  U-shaped settee with cloth upholstery
  Large, convertable saloon table with internal 110V outlet for printer
  Combination shade-mosquito screens for opening deck hatches – Goiot
  Pleated blinds for saloon cabin windows
  Storage compartments under saloon seating
  Overhead stylish LED recessed ceiling lights.
  Light switches to operate and dim light output
  3 x large opening deck hatches
  Locking Sliding aluminium door with open/closed positions (Titanium finish)
  Escape hatch in saloon floor with sand blasted glass ‘world map’ logo
  Sliding window to cockpit.
  Laminated flooring throughout.
  110V outlets
  1 x Cabin fan – Hella Turbo 2
  2 x 12 000 BTU air con units with outlets at nav and settee

• ENTERTAINMENT AREA

  Large U-shaped cupboard unit with entertainment equipment and storage drawers
  1 x 40″ LED smart television with built in media player on TV lift system
  Large vertical cupboard housing refrigiration/freezer unit with small storage cupboard on the side
  12v compressor driven door fridge-capacity 157L combined with a 2 drawer deep freezer – capacity 144L with incorporated ice maker

• GALLEY AND PANTRY

  Galley in main saloon to Port with direct access to cockpit
  Large L-shaped counter top in solid surfacing with double under counter sink with chromed professional mixer tap
  Large double drawers under sink unit with heavy duty drawer slides
  Integrated dish draining area.
  Large cupboard doors with storage
  One set of drawers.
  Drawer for spice and condiments
  Rubbish bin in dedicated drawer for easy access
  Four-burner gas hob with flame failure device and pot holders.
  Extraction system above hob
  Speed oven with grill (convection microwave)
  Large Island unit with solid surfacing
  Large single cupboard
  Recessed overhead LED lighting.
  Light switch and dimmer for overhead lighting
  Electronic Gas shut off valve/alarm with 1 x sniffer
  Laminated flooring.
  Numerous 110v outlets
  Fire extinguisher
  Fire blanket

• NAVIGATION STATION

  Situated in port front section of saloon and forward facing.
  Very good 360 degree visibility due to large cabin windows
  Mounted in a console is a custom designed switchboard with digital switching switches and digital battery monitoring system
  L-shaped nav desk with large countertop
  Numerous cupboards with doors and drawers.
  1 x 110v outlet and 1 x 110v outlet with USB
  1 x 12 volt outlet
  Chart light
  Overhead recessed LED lighting
  Fire extinguisher
  1 x Garmin 300 VHF radio with AIS receiver
  1 x Fusion MS IP 700i series music system with 4 x MS-FR7021 7″ 260watt marine speakers (two in saloon and two in cockpit)
  Office chair at navigation station
  iPad with LaunchPort docking station and sleeve
  Le Grand USB (x3) outlet fitted to dashboard

• 2 X PORT HULL GUEST CABINS

  Access to each of the cabins is from the saloon by a companionway. Privacy is provided by a cabin door leading to each cabin
  Large 1.95m x 1.4m bed with soft furnished headboard.
  Island style bed with steps up each side giving separate access.
  Recessed bookshelf with cabinet and wardrobe
  Extra large storage under bed with drawers
  Dressing table with drawers underneath.
  Overhead opening deck hatch for ventilation
  Combination shade-mosquito screens for opening deck hatches – Goiot
  Several large non opening hull windows.
  Reading lights, overhead recessed ceiling lights, all LED
  Switch for cabin lights
  Fire extinguisher
  Laminated flooring throughout.
  110v outlets with 1 x USB outlet close to bed
  1 x Cabin fan – Hella Turbo 2 (each cabin)
  Pleated blinds for hull cabin windows
  1 x 8000 BTU air con unit (per cabin) with one upper level outlet for each cabin

• 2 X PORT HULL GUEST EN-SUITE BATHROOMS

  Bathroom enclosed with clear acrylic with sandblast vinyl design and dual pupose door
  Electric toilet
  Solid surfacing counter top with integrated washbasin
  Pressurized hot and cold water professional mixer tap.
  Cupboard and storage underneath
  Overhead mirror unit with storage for bathroom accessories
  Opening deck hatch for ventilation.
  Combination shade-mosquito screens for opening deck hatches – Goiot
  Opening Area 1 non opening port light
  Towel rail, soap holder and toilet paper holder

• 1 X ENTIRE STARBOARD HULL OWNERS CABIN WITH EN-SUITE BATHROOM

  Access to the owners hull is from the saloon by a companionway and privacy is provided by a large wooden sliding door
  Large solid surfacing counter top with integral “his” and “hers” double basins.
  Professional hot and cold mixer taps
  Cupboards underneath for storage
  Large mirror units above with storage for bathroom accessories
  Electric toilet
  110V waterproof outlet
  Washer drier mounted in dedicated cupboard with removable shelves above
  A fully enclosed large shower moulding with Acrylic opening door and seat
  Opening deck hatch for ventilation.
  Combination shade-mosquito screens for opening deck hatches – Goiot
  Large non opening hull window
  Towel rail, soap holder and toilet paper holder
  Overhead recessed LED lighting
  Extra large dressing table with built in desk with drawers
  110V outlets with 1 x USB outlet close to bed
  Extra large wardrobes with hanging locker and shelves
  Electronic safe installed in main wardrobe
  Large Dresser unit with cupboards for storage
  Double settee/lounger with storage underneath
  King-size 1.95m x 1.4m bed with soft furnished headboard.
  Island style bed with steps up each side giving separate access.
  4 x large non opening vertical windows on outboard hull next to bed giving lots of light and vision
  Pleated blinds for hull cabin windows
  Extra large storage under bed with drawers
  Recessed bookshelf with shelf and cupboards on inboard side next to bed
  Overhead opening deck hatch
  Light switch and for cabin lights
  1 x Cabin fan – Hella Turbo 2
  1 x 12 000 BTU air con unit with two upper level outlets

• ENGINES AND ENGINE ROOM

  Access to the engine rooms is via 2 specially moulded large hatches in the aft cockpit floor.
  These hatches are lockable and feature gas struts
  Two x Yanmar Marine diesel engines Model 4JH80-TE (80HP at 3200RPM) with SD60-T sail drive units, both freshwater cooled, Stbd side coupled via the heat exchanger to a 60L Calorifier for hot water.
  Each engine is mounted on a specially moulded bed.
  Complete passive ventilation system
  Wet exhaust system including water trap, gooseneck and anti-siphon.
  Yanmar fixed 3 blade propeller
  Fuel capacity is 790L, 2 x tanks, 1 for each engine with shut off valve.
  Fuel transfer pump to transfer fuel from one tank to another
  Fuel filter/water separator in each engine room
  Fuel tanks vented to deck via a breather with flame arrestor.
  Both engines start from a dedicated engine starting battery mounted in a each engine room.
  Overhead LED lights in each engine compartment.
  2 x 120amp standard alternators fitted by engine manufacturer
  Engine room soundproofed
  Fireboy automatic fire extinguishing system in each engine room
  2 x Large capacity bilge pump with hi-water alarm in each engine room
  Emergency tiller arm supplied on dedicated brackets in stbd engine room.
  Toolbox with assorted tools

• PLUMBING

  All freshwater hoses of re-enforced PVC tubing with “speed fit” connections.
  All hot water piping enclosed in a neoprene covering to maintain temperature over long periods of time
  860 L rigid polyethylene water tanks in front lockers for easy removal and cleaning.
  Tank vents terminate on deck
  One water heater of 60lt with 110V resistor element. Complete with strainers, check valves and accumulator tank.
  All grey water from showers is discharged overboard by a automatic drain pump
  Two large capacity water pressure pumps mounted in front lockers near water tanks with accumulator tank
  Each pump draws water from the appropriate fresh water tank and service the entire boat.
  100 Ltr/26.42 US gal/min manual bilge pump, one for each hull.
  Outlets are above water level and discharge overboard.
  Holding tanks for 3 x toilets.
  4 x hi capacity electric bilge pumps with automatic sensors for main bilge area.
  Washer drier in forward area of stbd heads. Laundry area includes removable shelves at back of washer dryer.
  Water maker – Newport 400 NP-MK II-400S fully automatic with backwash/fresh water flush – 62Ltr + Connect Controller
  Dishwasher – 45cm D/Washer – 10 place setting
  Connection for hose to hose down chain in windlass locker
  Fresh water filter for ice maker fitted in cupboard next to fridge

• ELECTRICAL

  On board DC electrics are 12V with two wire-insulated return.
  Wires are sized to minimize voltage drop.
  All light current wiring is silicon tinned wiring which is flame proof and does not give off toxic vapours
  All light current conductors carrying an excess of 50 Amps are 50-70mm².
  All light current conductors programmed and powered by C-Zone digital switching
  Batteries – the ship’s auxiliary load consists of 6 x 750 Ahr 2V Gel batteries
  A separate battery is supplied for engine starting.
  For good heavy current termination, copper tinned bus bars are used.
  A comprehensive DC main digital switching switch panel is located in the Nav Station.
  Mastervolt Easyview for battery status monitoring
  AC circuit – including shore power inlet sockets, shore power cord, electrical panel with necessary breakers and earth leakage.
  Euro American 2 pin and universal style AC outlets with USB facility fitted at various locations on the vessel
  2 x large under water Zinc anodes fitted to hull. DC and AC are common grounded. Zinc saver
  Charger – 1 x Mastervolt Chargmaster 12/100-3 100amp battery charger
  Genset – Fischer Panda 15000i PMS – 12KW/15KVA variable speed
  Invertor Charger – Mastervolt Mass Combi 12/2500-120V/60HZ
  Solar panels – 6 x 145 Watt on saloon coachroof with 1 x 60 Amp Mastervolt MPPT solar regulator

• SAFETY EQUIPMENT

  8 fenders / 10 x 10m 18mm tie up ropes
  Category 1 offshore safety equipment including 8 man life raft – Viking

Contact Us for further details

Contact Us
